Summary of Contents for Caple WD140

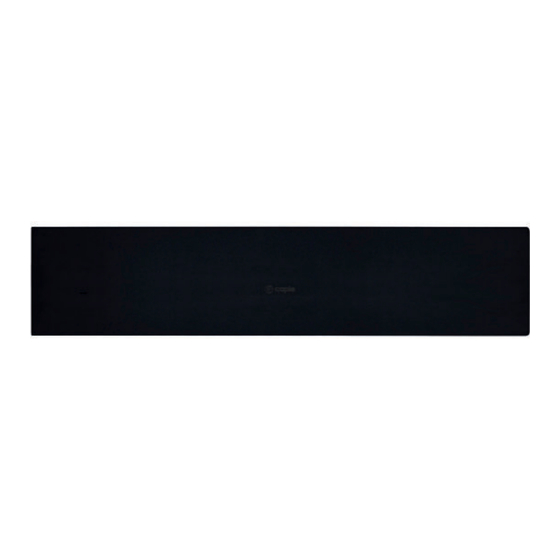

- Page 1 S e n s e W a r m i n g D r a w e r I n s t r u c t i o n M a n u a l WD 1 40 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Warnings Environmental Protection Warranty Electrical Connection Installation Using for the First Time Appliance Controls Operation Troubleshooting Care and Maintenance Installation Dimensions Technical Data Caple Contact Details Instruction manual WD140 Please keep this instruction manual for future reference... - Page 3 Instruction manual WD140 Please keep this instruction manual for future reference...
- Page 4 - Children can injure themselves on an open drawer. Do not let children sit on the open drawer, lean against it or swing on it. Instruction manual WD140 Please keep this instruction manual for future reference...
- Page 5 - T omaintaintheefficiencyandsafetyofyourappliance,we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. - Multi-socket adapters and extension leads should not be used to connect the drawer to the mains electricity supply.
-
Page 6: Warnings
- Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons. - Page 7 - Always switch off the appliance from the mains isolating the electrical supply before any cleaning or maintenance. - Never use steam cleaners. They may cause short circuits and damage the appliance. Instruction manual WD140 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 9: Electrical Connection
Valid separation devices include switches with a contact opening of at least 3mm. Caple shall not be held liable for damage to individuals or property due to lack or interruption of the earth wire. - Page 10 If installation, maintenance and repair work is not carried out correctly, there may be hazards for the user. Caple declines all liability for this type of personal injury or property damage. During the warranty period, repairs may be carried out by authorised service agents only. Otherwise, guarantee coverage will be void.
-
Page 11: Installation
› Ensure the warming drawer is well centred and aligned in the cabinet. › Open the drawer and secure to the housing unit by inserting the 2 screws provided into the fixingholes. Instruction manual WD140 Please keep this instruction manual for future reference... -
Page 12: Using For The First Time
› Pre-heat the empty drawer for at least two hours. Turn the temperature knob to the maximum setting, in order to eliminate any residual grease, oil, or manufacturing resins which may cause unpleasant odours during heating. › Air out the room. › U poncompletionofthisoperation,theapplianceisreadytobeusedforthefirsttime. Instruction manual WD140 Please keep this instruction manual for future reference... -
Page 13: Appliance Controls
℃ › Turn on the appliance; the switch will light up , i.e ℃ › Close the drawer gently › Turn off the appliance before removing the heated dishes Instruction manual WD140 Please keep this instruction manual for future reference... - Page 14 › Temperature setting For this reason it is not possible to provide absolute information. It is advisable to determine the best settings for your needs based on practical experience. Instruction manual WD140 Please keep this instruction manual for future reference...
- Page 15 30 soup bowl ø10cm 10 plates ø28cm 10 pizza plates ø36cm 60 espresso cups 30 cappuccino cups 30 glasses Note: These examples are a guide only. The actual quantities may differ. Instruction manual WD140 Please keep this instruction manual for future reference...
-
Page 16: Troubleshooting
The on/off switch does not light up The control light of the switch is defective when the appliance is switched on: If the problem still persists, please contact Caple service for assistance: T - 0117 938 7420 E - service@caple.co.uk... -
Page 17: Care And Maintenance
The anti-slip bottom of the drawer can be hand-washed with warm water and a gentle detergent. Dry thoroughly afterwards. Put the anti-slip bottom back in the drawer only when it is completely dry. Instruction manual WD140 Please keep this instruction manual for future reference... -
Page 18: Installation Dimensions
I N S T A L L A T I O N D I M E N S I O N S 455mm 438mm 595mm 129.6mm 143.8mm * Please note the 45 cm oven dimensions may vary from the above depending on which model is used. Instruction manual WD140 Please keep this instruction manual for future reference... -
Page 19: Technical Data
T E C H N I C A L D A T A Total power: 380-460W Connection and protection: AC 220-240V/50 Hz Instruction manual WD140 Please keep this instruction manual for future reference... -
Page 20: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
