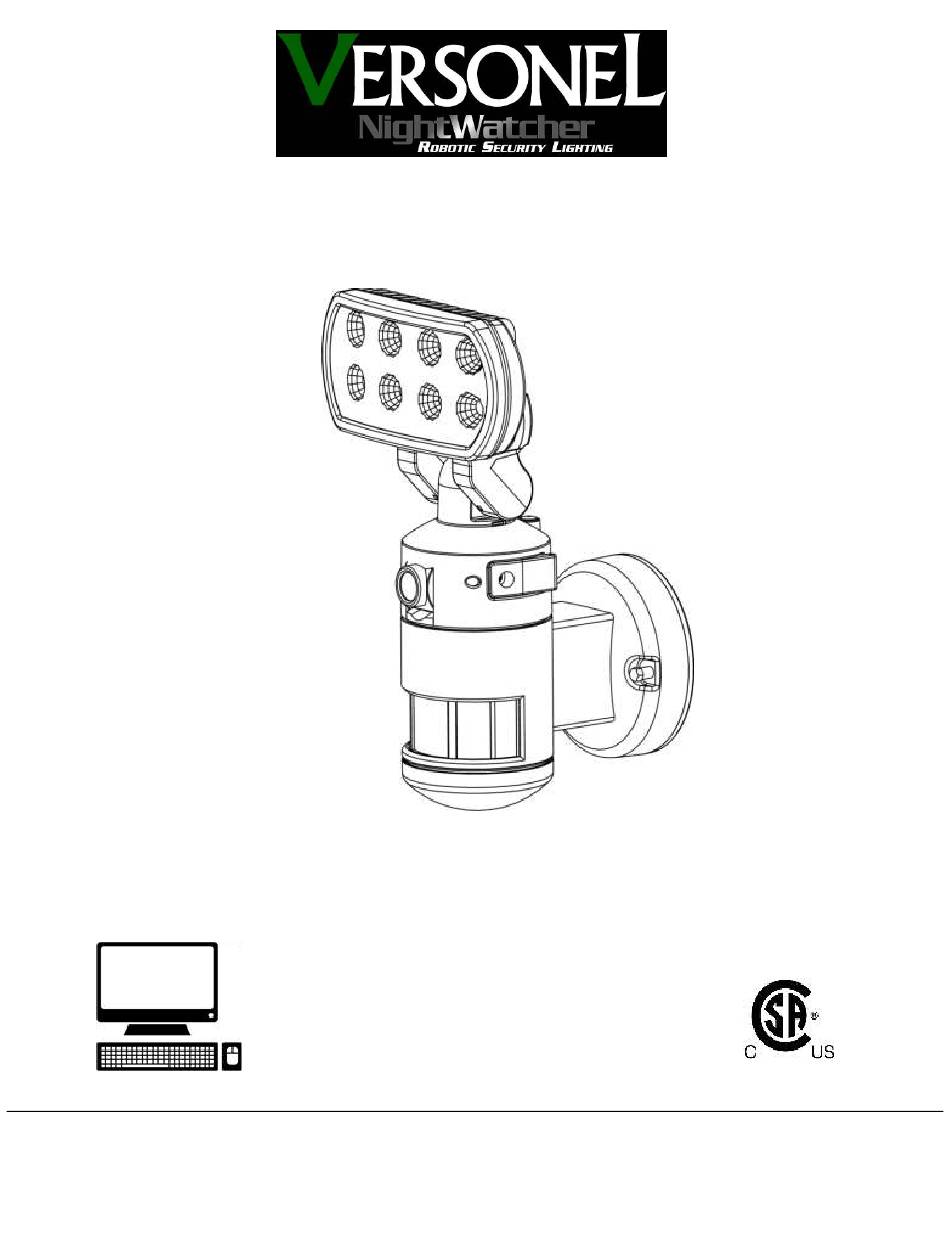

- Page 1 VSL-NWP802 USE AND CARE GUIDE ROBOTIC LED FLOOD LIGHT WITH WIFI VIDEO CAMERA Windows 2000 / XP / Vista / 7 / MAC Micro Memory Card 1GB SD ~ 32GB SDHC (max) Class 4 LISTED Versonel New Holland, PA 17557...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Specifications ..............5 Safety Information ..............2 Nightwatcher WIFI Overview ..........6 Warranty ................3 Installation ..7 What Is Covered Operation-Programing your Nightwatcher WIFI ....8-11 System Set Up (Link Camera with WIFI Network) ....12 What Is Not Covered Pre-Installation .............. -
Page 3: Warranty
The manufacturer assumes no liability for any damage to property, injury to person, or death. Please feel free to contact us at service@versonel.com with any questions or visit us at www.versonel.com... -
Page 4: Pre-Installation
Pre-installation PLANNING INSTALLATION Never attempt to turn the light head by hand as this can damage the internal motor components. NOTE: Before attempting any installation or maintenance, ensure that the electrical supply is switched off and the circuit fuses removed or the circuit breaker is in the TOOLS REQUIRED (NOT INCLUDED) Safety... -
Page 5: Package Contents
Pre-installation (continued) PACKAGE CONTENTS NOTE: Nightwatcher WIFI is designed to illuminate, record video and produce audio warnings when a person enters the detection area. While it will detect a moving heat source, there is no guarantee implied that it will provide total security or prevent illegal entry. Part Description Quantity... -
Page 6: Nightwatcher Wifi Overview
Nightwatcher WIFI Overview Top View Camera 3 motion sensors Mode LED Indicator (hidden inside) Front View Bottom View Side View Camera angle adjustable downward by 25 degrees... -
Page 7: Installation
Installation Mounting and wiring the light Mounting and wiring the light fixture fixture (Continued) Installing your Nightwatcher WIFI on a wall or DANGER: building surface - use cross bar Incorrect voltage may cause electric shock. If you are not □ sure, please contact your retailer. -
Page 8: Detection Range
Operation Detection range Adjusting the settings □ □ This light is equipped with three motion sensors: zone 1 Selecting working mode: There is a Mode LED indicator covers 60 degrees, zone 2 covers 100 degrees and zone 3 hidden inside the motion detector window that will display covers 60 degrees. - Page 9 Operation (continued) Removing and formatting the Adjusting the settings memory card □ Camera LED indicator Before removing the micro card from the card slot, please press the mode button on the bottom of the Nightwatcher □ The LED light next to the card compartment indicates the WIFI for 3 seconds to stop the light from turning function status of the camera by using different colored LED will flash orange.
-
Page 10: On-Board Controls
Operation (continued) On-board controls Recording audio message □ Recording: NOTE: You must press the button on the bottom of the unit for 1. Press the SET/REC button for 3 seconds, and you will hear 3 seconds to disable the rotation of the light. a single beep. -
Page 11: Viewing Recorded Videos
Operation (continued) Viewing recorded videos Viewing image by computer through a card reader. □ Press the push button on the bottom of the unit for 3 seconds to disable the unit. □ Open the waterproofed cover on the unit. □ Press OFF/REC button and take out the micro card within 30 seconds. -
Page 12: System Set Up (Link Camera With Wifi Network)
1.1 Link camera with Smart phone/Tablet (AP Mode) □ Using smartphone or ta Versonel WIFI Lighting or Google Play store (android) download. □ Go to mobile device s Wi-Fi setting and select Smart Guard HD-XX to connect and receive the UID. (-XX stands for serial number, it varies according to different unit.) - Page 13 Operation (continued) 1.2 Link camera with home AP □ Link camera with home AP allows user to watch their camera from anywhere in the world as long as they have internet access. □ Touch the screen twice, it will appear 5 red function keys on the right side. □...
- Page 14 Operation (continued) □ Select your home AP from the site survey menu. □ Enter Home AP password if is encrypted, and cli LED indicator □ □ Wait for 60 seconds camera boot up again and link to WiFi AP router. If Join home AP connection is successful, LED indicator besides waterproof cover will display a RED light.
- Page 15 Operation (continued) □ nd you will see video streaming from Smart Guard HD. Note: You may access your camera from anywhere as long as there is internet access. 1.3 Set Camera name and password: Select Wi-Fi Setting. You can change SSID name and password □...
- Page 16 Operation (continued) 1.5 Frequency Setting: Set Power Frequency 1.6 PIR Notification: Send PIR Notification signal to your smartphone/tablet □ Click OFF: Not to send PIR Notification signal □ Click ON: To send PIR Notification signal □ notification signal to your smartphpone/tablet...
- Page 17 Operation (continued) micro SD card inside the unit, when PIR is triggered, it will send PIR Notification signal continuously to your smartphone until no any activation. 1.7 Set Description name: You can set your own name for this Description. NOTE: The change of this description will not .
-
Page 18: 2.0 Images Functions
Operation (continued) 2.0 Images Functions 2.1 SNAP SHOT: Take one still picture for each snap shot and picture will be saved in smart phone. 2.2 RECORD □ d video will be saved in smart phone. □ When PIR is activated to start Auto Record, the left bottom side will show Orange Ball icon. Record a video at 20 seconds and video will be saved in Smart Guard SD card. - Page 19 GREEN color at MANUAL control, the other users also will see this bulb icon to be GREEN color. When all the users close this Versonel WIFI Lighting software, this icon will return to RED color at AUTO control and LED light also will be off at the same time.
- Page 20 Operation (continued) 2.5 SETTING: Please read the above point 1.1~1.7 2.6 Check APP version If there is SD card inside the product, the screen will show this icon If there has no SD card inside or can not read SD card, the screen will show this icon 2.7 Check APP version ...
- Page 21 Operation (continued) Firmware Online Update NOTE: Please press Upgrade FW to start and your APP will be closed at on until upgrade is completed, then open the APP again. Please make sure your APP is the newest version 2.8 The speed-flow is shown on the right bottom corner of the screen ...
-
Page 22: Troubleshooting
Operation (continued) Troubleshooting The LED light head does not move. This may occur when an event causes the head to move out of alignment or obstructs the movement of the light head. Remedy: Turn the circuit breaker off for about 10 seconds and then turn back on. The light should go through its set up routine and adjust the head for proper operation. -
Page 23: Frequently Asked Questions) Section
F.A.Q. (Frequently Asked Questions) Section Q. How many videos does the memory card hold? A: The number of video files that amount to 4GB varies, as the size in bytes of each 20-second video clip will vary depending on the amount of brightness, color, and movement in each video clip. - Page 24 Retain this manual for future use.
