Summary of Contents for IQAir PerfectPro

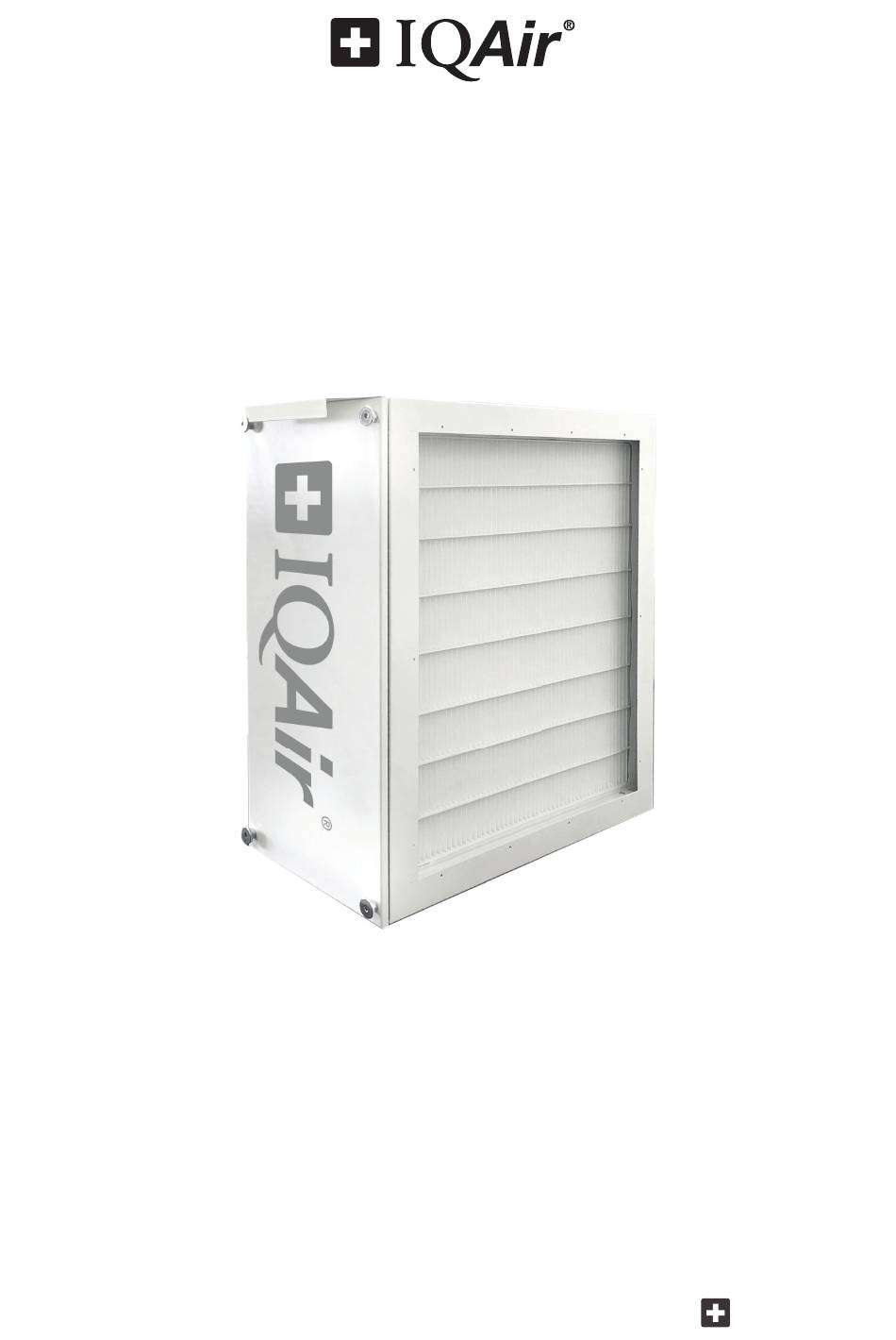

- Page 1 ® ® C F P erfec tPro a n d P erfe ctPr o H V A C A i r F i l t r a t i o n S y s t e m Installation Guide Swiss Made...
-
Page 2: Important Safety Instructions
Please keep the original packaging. IQAir® reserves the right to change specifications contained in this document at any time and without prior notice. ©2020 IQAir® Group. All rights reserved. IQAir®, HyperHEPA®, PerfectPro®, and ColdFire® are the registered trademarks of the IQAir® Group. Patents pending. - Page 3 Chapter 4 – Installation Instructions Chapter 5 – Installation Examples Up-fl ow furnace Down-fl ow furnace Horizontal furnace Chapter 6 – Filter Replacment Instructions Chapter 7 – IQAir Technical Support 7. 1 Technical Support 7. 2 Ordering Replacement Filters 7. 3...
-
Page 4: Chapter 1 - Air Cleaning Systems And Indoor Air Quality
3. Ensure the IQAir system can clean enough air to cope with the size of the indoor environment. The actual hourly air volume cleaned by the system should be at least double the air volume of the indoor space. If the rate at which pollutants enter the room air is high or the indoor air quality requirements are stringent, the hourly air delivery of the HVAC system needs to exceed the room air volume several times. -
Page 5: Application Considerations
1.3 Application Considerations Mount on the Return Side of Air Handler Mount the PerfectPro on the return side of the air handler. This will help keep the coils clean and reduce maintenance. Humidifi ers Mount the PerfectPro upstream of humidifi ers, so that the water mist does not come in contact with the fi lters. -
Page 6: Chapter 2 - Product Data
Perfect Pro CF 11.9 kg 12.2 kg 13.7 kg 2.2 Replacement Filters 1625 2020 2025 Devices PerfectPro 207.80.00.01 207.80.00.02 207.80.00.03 PerfectPro CF 207.80.00.21 207.80.00.22 207.80.00.23 Replacement Filters Particle Filter 202.12.30.01 202.12.30.02 202.12.30.03 Formaldehyde Catalyst Filter 202.30.20.02 202.30.20.03 202.30.20.04 2.3 Diagrams and Dimensions... -
Page 7: Chapter 3 - Parts & Tools
Chapter 3 – Parts & Tools Chapter 3 – Parts & Tools 3.1 Equipment Packaging PerfectPro • PerfectPro fi lter cabinet • Particle Filter (pre-installed in fi lter cabinet) • Installation Guide PerfectPro CF • PerfectPro fi lter cabinet •... -
Page 8: Chapter 4 - Installation Instructions
WARNING: Always shut off the electrical power supply to the HVAC before working on the appliance. 1. Remove the PerfectPro from the carton 2. Remove the access panel door from the fi lter cabinet. The door is secured with four (4pcs) thumbscrews. -
Page 9: Chapter 5 - Installation Examples
Chapter 5 –Installation Examples Chapter 5 – Installation Examples Up-Flow Furnace Up-Flow Furnace (5 ton application) Filter system is installed vertically and return air enters Filter system is installed vertically and return air enters the furnace side inlet (up to 4 ton application). the furnace side inlet (5 ton application). -
Page 10: Chapter 6 - Filter Replacement Instructions
Chapter 6 – Filter Replacement Instructions Chapter 6 – Filter Replacement Instructions WARNING: Always shut off the electrical power supply to the HVAC before working on the appliance. Caution: Wear dust mask and gloves to reduce exposure to dust and other pollutants from fi lters. 1. -
Page 11: Chapter 7 - Technical Support
Chapter 7 – Technical Support 7.1 Technical Support Should technical questions or issues arise during or after the warranty period, please contact your local IQAir dealer. To expedite your service request, please have the following information ready when contacting us: •... - Page 12 Swiss Made...
