Summary of Contents for Fujitsu F50

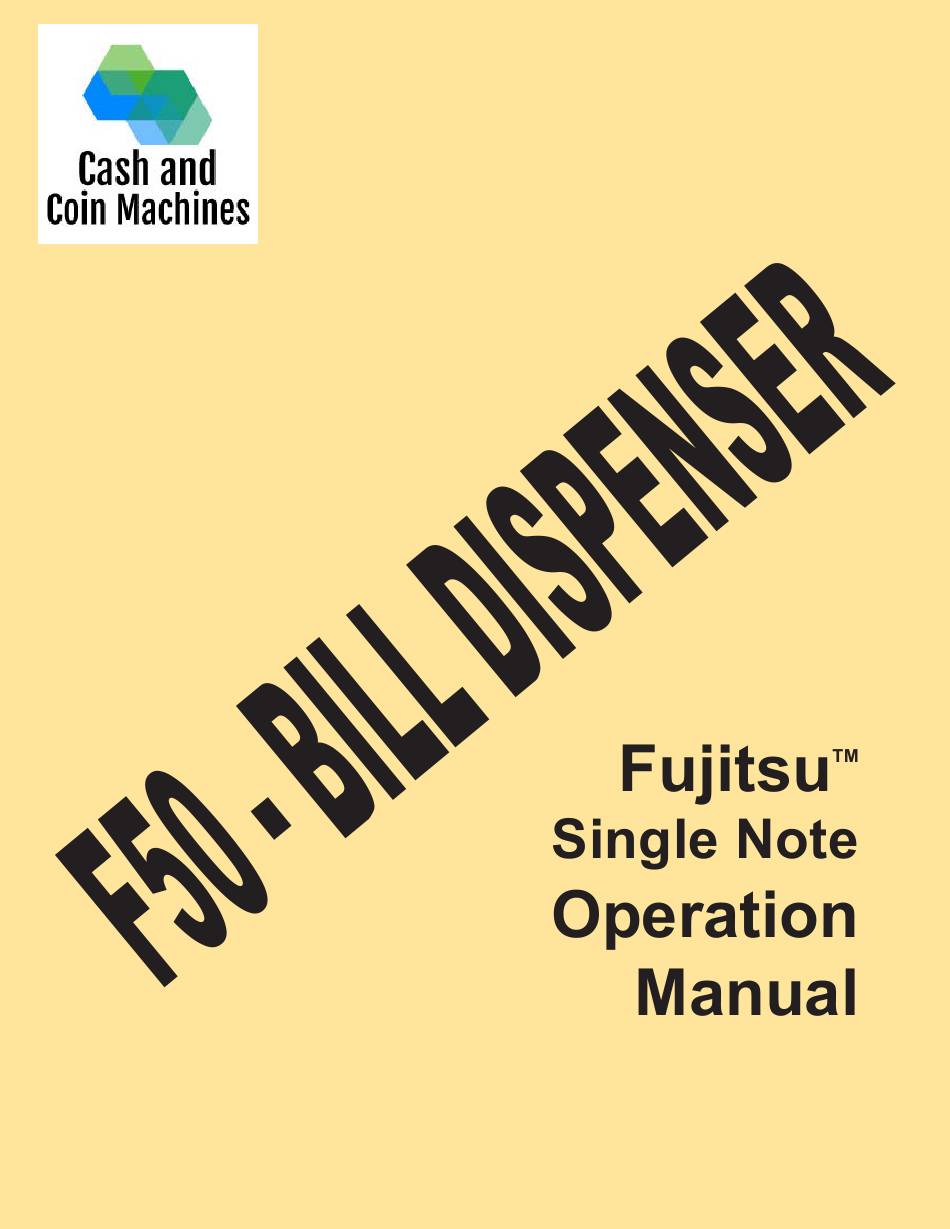

- Page 2 P1KD11078-B002/6 For Maintenance Purposes Only F50 - BILL DISPENSER UNIT OPERATOR’S GUIDE FUJITSU KIDEN 8M00503...
-
Page 3: Revision Record
REVISION RECORD EDITION DATA ISSUED DESCRIPTION OF CHANGE PAGE (S) AUGUST 2001 Original issue Document Code No.: P1KD11078-B002/6 Date: Month, Year... -
Page 4: Table Of Contents
CONTENTS --------------------------------------------------------------------------------- 1 - 1 Device Configuration --------------------------------------------------------------------- 1 – 1 -------------------------------------------------------------------------------- 2 - 1 (Part No.: KD11078-B002) F50 BDU ---------------------------------------------- 2 – 1 2.1.1 Parts ---------------------------------------------------------------------------------- 2 – 1 2.1.2 Loading bills ------------------------------------------------------------------------- 2 – 3 2.1.3 Care instructions of bills before loading ---------------------------------- 2 –... -
Page 5: Chapter 1 Outline
CHAPTER 1 OUTLINE 1.1. Device Configuration The Figure I-1-1 is the photo image of the F50-bill dispenser unit. Figure I-1-1 Bill capacity 1,500mm(max) (ex: 1,000 USD notes for teller fit, 1,200 USD notes for brand-new notes ) Number of dispensing per transaction 20sheets (max) -
Page 6: Chapter 2 F50-Bdu
CHAPTER 2 F50-BDU 2.1. F50-BDU (Part No.: KD11078-B002) 2.1.1 Parts Door: Door for F50-BDU Reject area: Storage are for rejected bills Tray: Exit tray Manual knob: Manual knob for jammed bill removal Pressure unit: Bill pressure mechanism Figure I-2-1... - Page 7 Tray Manual knob Door Reject area Pressure unit Figure I-2-2 Figure I-2-3...
-
Page 8: Loading Bills
2.1.2 Loading bills Hold green colored handle(bill holder handle) and slides the bill holder until it locks. Note Ensure that Pressure unit is completely locked. Bill holder Bill holder handle Figure I-2-4 (1) Load bills Note Jog a stack of bills and set. Max loading capacity is 1,200 USD notes for brand-new notes. - Page 9 Figure I-2-5...
- Page 10 (2) Hold the bill holder handle, and then slide the bill holder to secure the bills. Figure I-2-6 (4) Close the Door completely. Figure I-2-7...
-
Page 11: Care Instructions Of Bills Before Loading
2.1.3 Care instructions of bills before loading Following care need to be done before loading bills: (1) Riffle the stack of bills before loading. (2) Find and get rid of shifted bill before loading. (3) Load bills in staggered units of 100 sheets so that the stack of bills does not bulge. - Page 12 (4) Straighter any folded corners of bills as much as possible before loading. (5) Do not use bills repaired with tape.
-
Page 13: Chapter 3 Remove Left Bills
CHAPTER 3 REMOVE LEFT BILLS 3.1. How to remove a jammed bill. Generally for an abnormal end, device is recovered by the mechanical reset command, however, if device is suspended because of a jam, bill jam in the unit need to be removed by hand. 3.1.1. - Page 14 Figure -3-2 While turning the manual knob, take out a bill slowly. Note: If you pull the bill by force, belt comes off from the pulley. Pulleys Figure -3-3 Check pulleys in three places as Figure I-3-3 shows, and ensure that belt isn’t off from the belt.
-
Page 15: How To Remove Jammed Bill At Dispensing Area
3.1.2. How to remove jammed bill at dispensing area Metal fitting Figure -3-4 While pressing down the metal fitting of dispensing roller, turn the manual knob and pull jammed bill.
