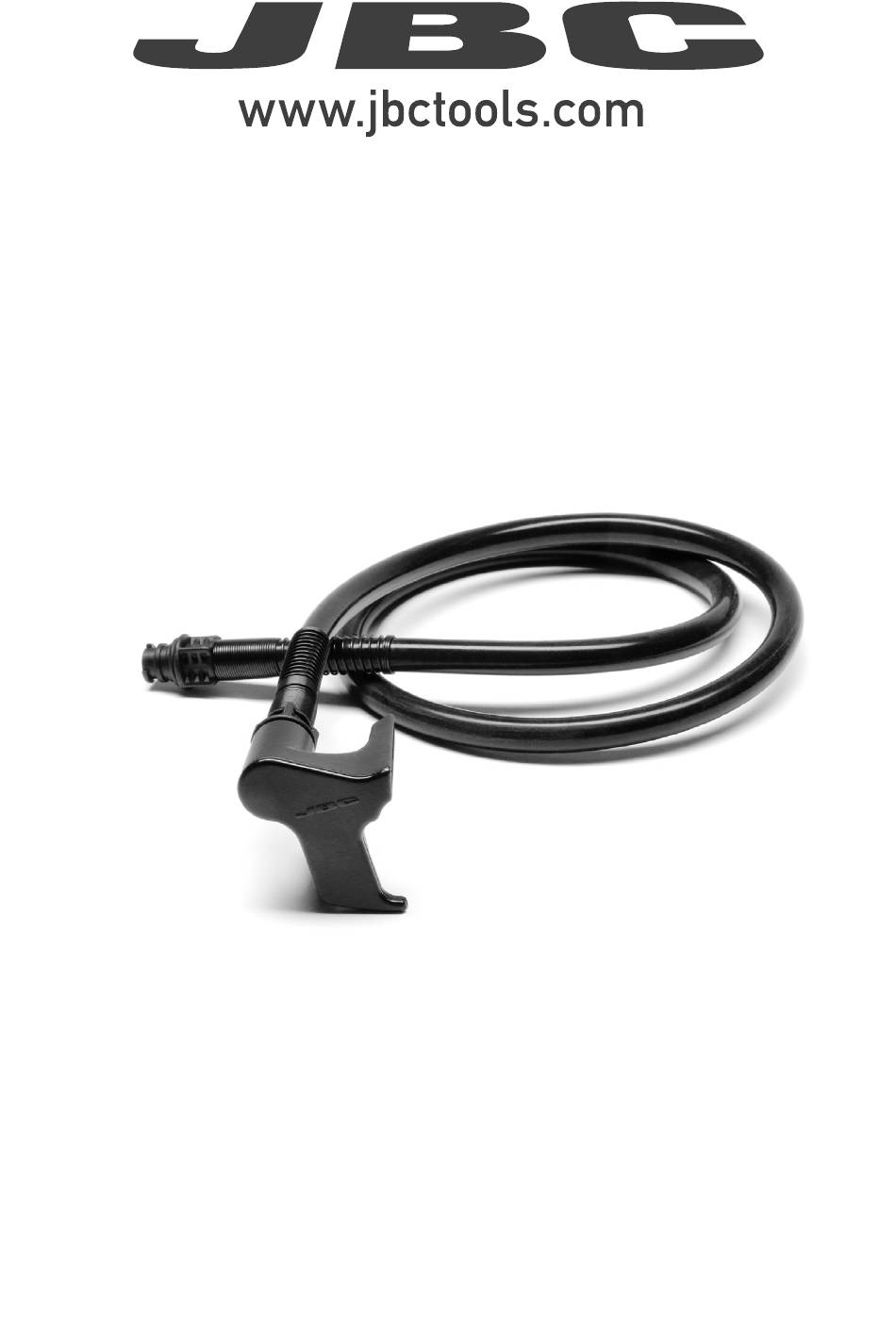

- Page 1 INSTRUCTION MANUAL FAE050 Fume Aspiration Duct for Modular Stands...
- Page 2 The following items are included: Manual ............1 unit Fume Aspiration Duct for Modular Stands ......... 1 unit Ref. 0019112 Ref. FAE050 Connection Turn the knob counterclockwise (1) until it Insert the fume aspiration duct between the knob loosens. and the tool holder (2).
- Page 3 para manuales - color gris 200 mm Connection - continuation 130 mm 130 mm Tool in the stand Aspiration Intake Collector Flange Hose 100 mm 80 mm 60 mm Fumes Connect the hose of the fume aspiration duct The system detects when the tool is returned 50 mm to the collector flange FAE030 or FAE040 (3).
- Page 4 11.81 x 5.12 x 2.56 in / 0.584 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
