Samsung WW80CGC Series Service Manual page 43

Drum type

Table of Contents

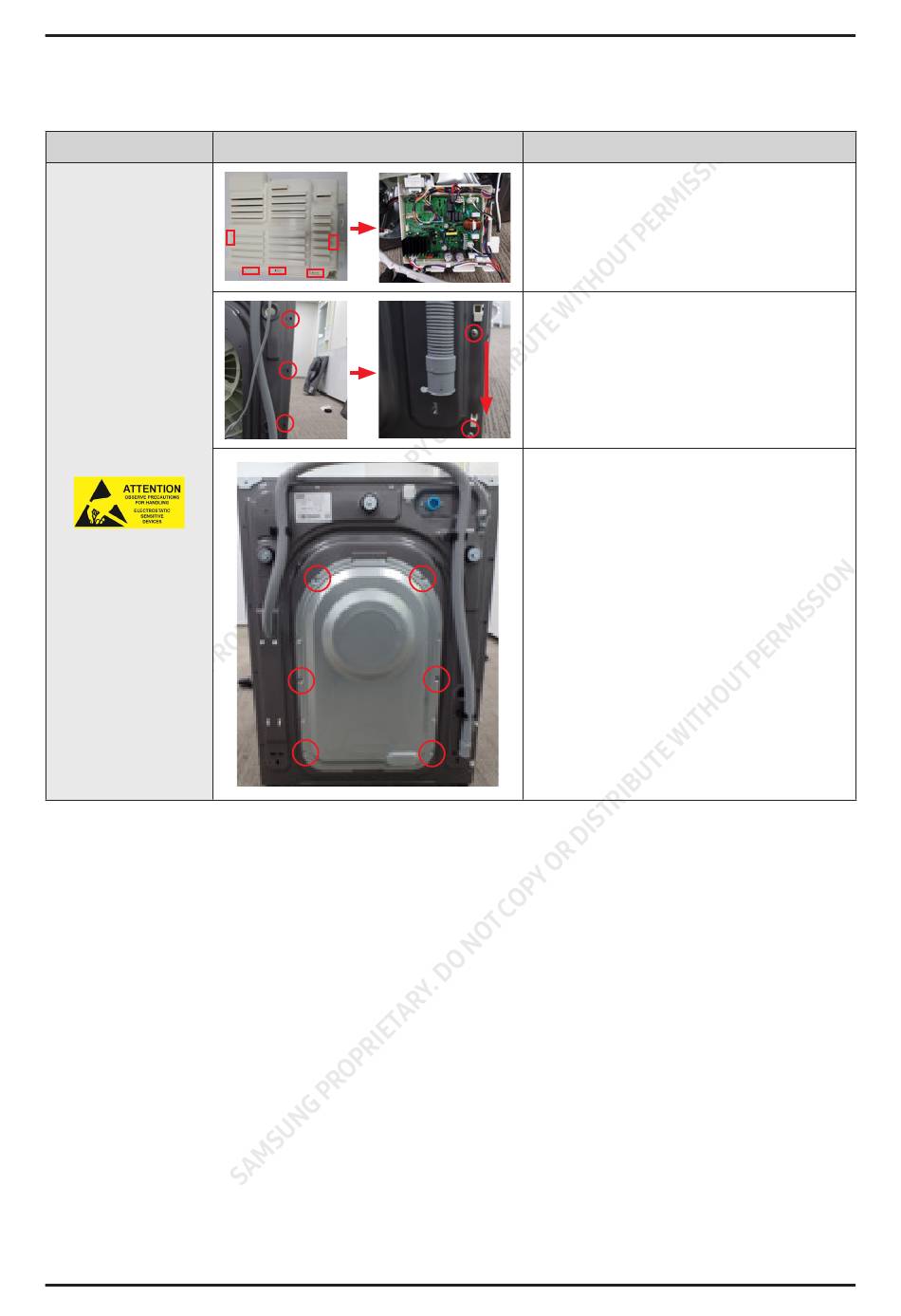

 Reassembly

Part

Assy Main PCB

Figure

Description

1. Assemble Cover PCB Main with Assy kit.

Assemble BLDC Motor.

2. Assemble guide wire and 2 screws holding the

Assy kit on the right also fit 2 hooks with frame

holes.

3. Assemble Cover Back.

Disassembly and Reassembly _ 39
