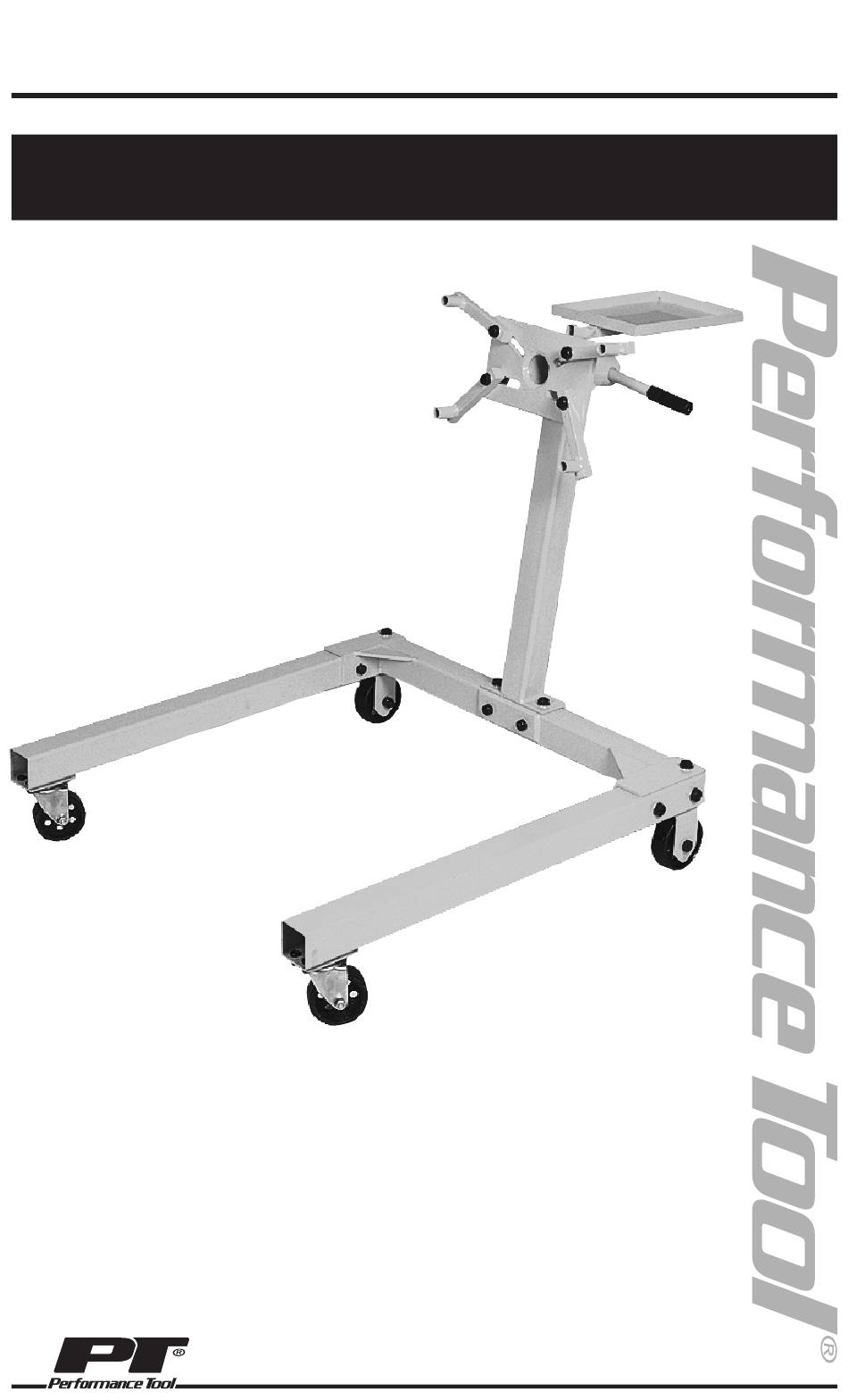

- Page 1 1,250 LB. ENGINE STAND Item Number W41031 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
-
Page 2: Tool Features
TOOL FEATURES 1. Head assembly rotates 360° 2. Adjustable mounting head 3. Metal parts tray 4. Heavy duty swivel casters 5. Heady gauge tubular steel SPECIFICATIONS: Capacity....................1,250 lbs. Length......................34-1/4 in. Width .....................33-7/16 in. Height ......................35-5/8 in. Specifications are subject to change without notice. SAFETY GUIDELINES / DEFINITIONS This instruction manual is intended for your benefit. - Page 3 10. Use the right tool for the job. Do not information. If unreadable or attempt to force a small tool or missing, contact Performance Tool for a attachment to do the work of a larger replacement. industrial tool. Don’t use a tool whose 23.
-
Page 4: Unpacking And Inspection
UNPACKING AND INSPECTION After opening the carton, unpack your new product and related parts & accessories. Please inspect it carefully for any damage that may have occurred during transit. Please check it against the photograph on carton. If any parts are missing, please call customer service at 1-800-426-1262 between 6:30 a.m. - Page 5 ASSEMBLY INSTRUCTIONS 1. Attach side legs (2) to rear frame (3) 3. Insert head mounting plate (8) into with bolts (4) and (7), and washers collar at top of main post (1) and (5) and nuts (6) as shown in Fig. 1. secure with lock pin (9) as shown in Fig.
-
Page 6: Care And Maintenance
1. Before each use, inspect the general 2. Replace worn or damaged parts with condition of the stand. Check for broken, Performance Tool® replacement parts. cracked, or bent parts, loose or missing Be sure that only qualified personnel parts, and any condition that may affect perform repairs. - Page 7 DIAGRAM...
- Page 8 After 90 days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts which our examination shall disclose to be defective and under warranty. These warranties shall be valid only when a sales receipt showing the date of purchase accompanies the defective product or defective part (s) being returned.
