Summary of Contents for NTI ST-C64K-328-L8-R

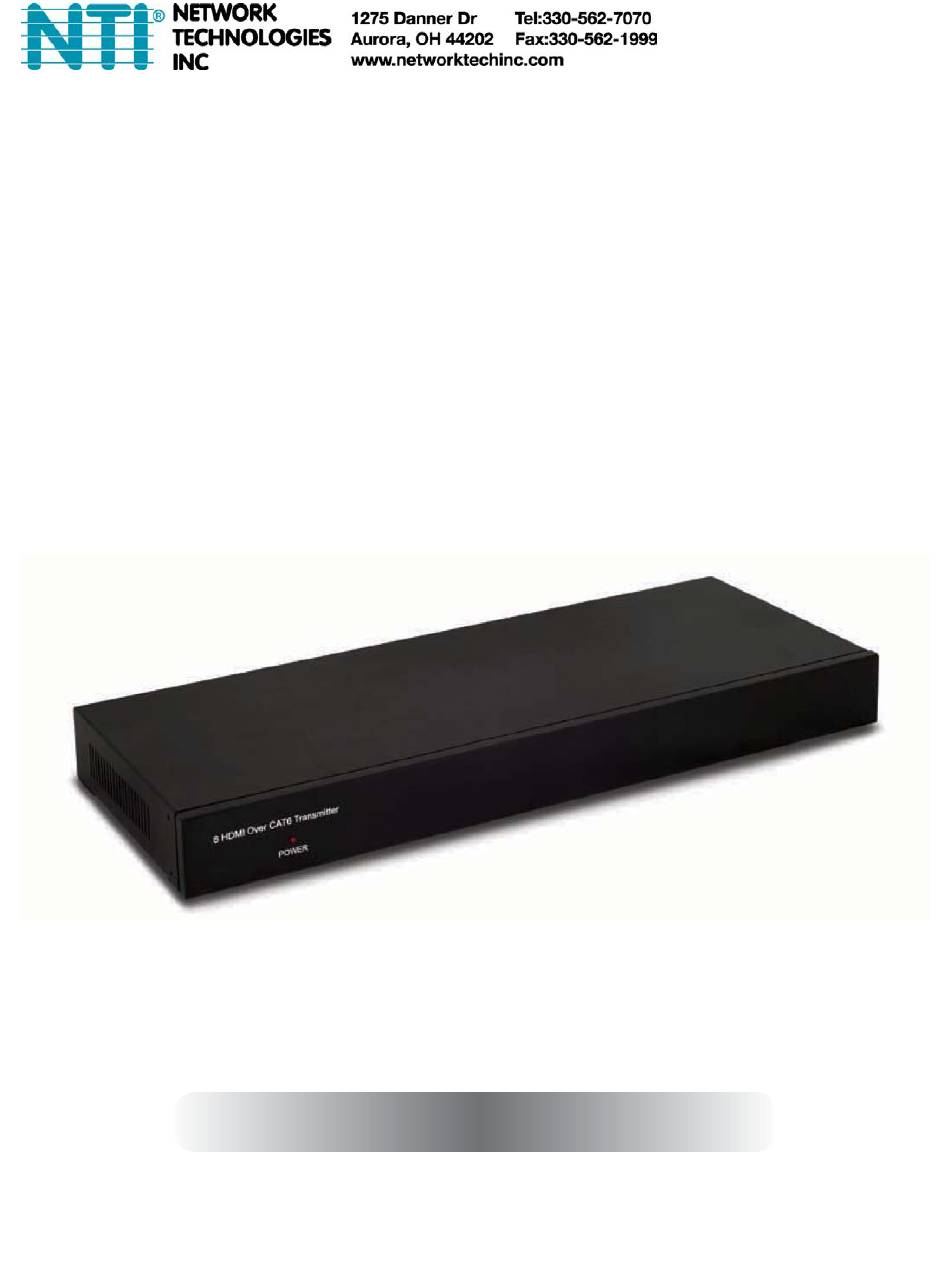

- Page 1 ST-C64K-328-L8-R 8 HDMI over CAT5e/6/7 Point-to-Point Transmitter Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 4: Introduction
1. INTRODUCTION The 8 HDMI over CAT5e/6/7 Point-to-Point Transmitter supports the transmission of uncompressed video (up to 1080p@60 Hz/36-bit) with multichannel digital audio from up to eight high definition sources to up to eight CAT6 outputs. Also, the unit can be used in conjunction with the 8×8 HDMI matrix (optional) to provide switching control, allowing the display of any source device on any output display. -
Page 5: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI compliant • Supports HDMI 3D and 4K×2K features • Support CEC bypass • Supports PoE (Power over Ethernet) on compatible receivers only • Supports audio up to 7.1Ch, Dolby TrueHD and DTS-HD Master Audio •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER The LED will illuminate in blue when the power is on. -
Page 7: Rear Panel
6.2 Rear Panel CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out DC 24V HDMI In 1 HDMI In 1 HDMI In 2 HDMI In 2... -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Displays HDMI Outputs Receiver Units Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out... - Page 9 ZONE ZONE ZONE ZONE Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In...
-
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Input Ports 8×HDMI Output Ports 8×CAT5e/6/7 Input / Output Resolution VGA~WUXGA, 480i~1080p HDMI Cable Distance Up to 10 meters@8-bit, 6 meters@12-bit CAT Cable Distance Up to 100 meters@CAT5e/6/7 cable ESD Protection Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge) Power Supply... -
Page 11: Mounting
9. Mounting Ears The ST-C64K-328-L8-R includes two ears for mounting to a rack. There are two screws on each side of the ST-C64K-328-L8-R for mounting these ears. Remove the screws, place the ear, and reinstall the screws. Mount the ears facing the front..
