VACUUM SEALER
PXR-P2
INSTRUCTIONS
ACKNOWLEDGEMENT
Thank you for purchasing a PRESERVAC product. We wish you much
joy with your new appliance every day you use it. Please read the
instruction manual carefully before initial use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXR-P2 and is the answer not in the manual?

Questions and answers

Related Manuals for PRESERVAC PXR-P2

Summary of Contents for PRESERVAC PXR-P2

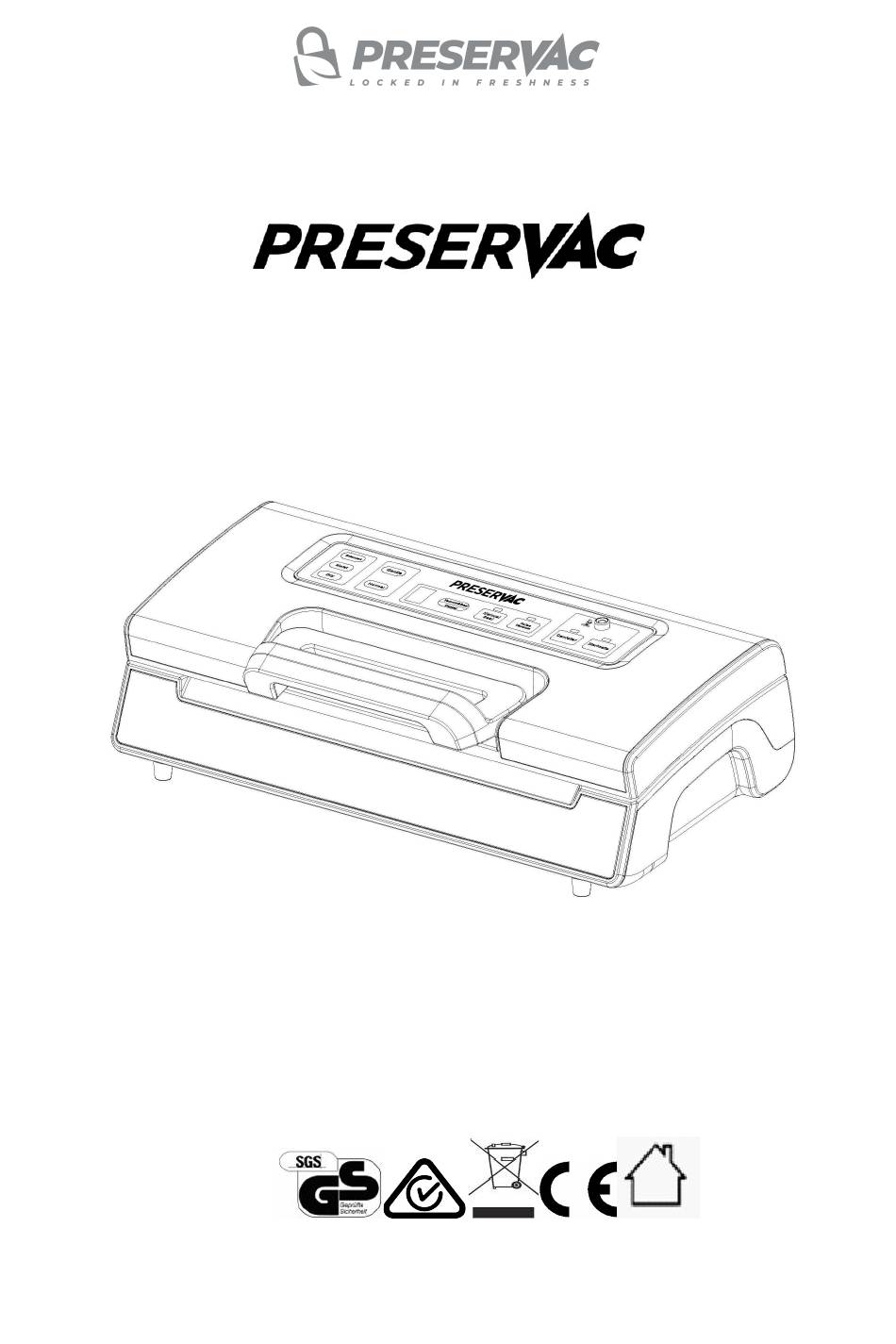

  • Page 1 VACUUM SEALER PXR-P2 INSTRUCTIONS ACKNOWLEDGEMENT Thank you for purchasing a PRESERVAC product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use.
  • Page 2 IMPORTANT SAFEGUARDS When using this electrical appliance, safety precautions must always be observed, including the following: READ ALL INSTRUCTIONS Carefully read all the instructions before using this appliance and save them for future reference. 2. Before plugging the cord into the wall outlet or disconnecting, make sure that the machine’s cover is in unlocked condition, and unplug from the outlet when not in use or before cleaning.
  • Page 3 or other hot surfaces. Do not use this appliance on a wet or hot surface or near a heat source. 12. It’s better not to use an extension cord with this unit. However, if you use one, it must have a rating equal to or exceeding the rating of this appliance.

  • Page 4: Construction And Functions

    CAUTION: SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY 1 MINUTE PER CYCLE CONSTRUCTION AND FUNCTIONS - 2 -...
  • Page 5 1. VAC & SEAL / CANCEL: This button has two functions depending on the machine’s status: ● At stand-by condition, it starts the automatic operation of vacuuming the bag and then automatically seals the bag when the vacuum is complete; ●...
  • Page 6 accessories through a hose. 6. SEAL: This button provides two functions:  To manual seal the open end of a bag without vacuuming air suction, used to make a bag from a bag roll;  When the automatic VAC & SEAL function is in operation, this button stops the motor pump and immediately starts to seal the bag.
  • Page 7 11.Vacuum Chamber: Position the open end of the bag inside the chamber, draws air out of the bag and catch any liquid overflow from the bag. 12. Sealing Strip: Place the bag to be sealed over this sealing strip. Clean and dry or replace it when distorted or broken. 13.
  • Page 8 16. Bag Cutter: Press and slide in any direction to cut bags to the desired size. 17. Cutter Rack: Support the cutter to slide along 18. Front Handle: Press down to lock the cover. And rock to open the cover. 19.
  • Page 9 3. Pull out the bag to the suitable length you want – Fig.3 Fig.3 4. Put down the cutter rack and make sure it is in the right place for the bags, then slide the cutter from one end to the other end to cut the bag –...

  • Page 10: Vacuum Packaging With A Bag

    II. Vacuum packaging with a bag 1. Put the items inside the bag. Use only the specially designed vacuum bags supplied by PRESERVAC with vacuum channels. 2. Clean and straighten the open end of the bag; make sure there are no dust, wrinkles or ripples.
  • Page 11 3. Place the open end of the bag within the vacuum chamber area. Make sure the bag does not cover the air intake. – Fig. 1 Fig.1 4. Put the top cover down and press the front handle to lock the top cover - Fig.2 Fig.2 5.
  • Page 12 “SEAL” button is activated within 15 seconds of the last activation.  Your appliance can work best with specific bags provided by PRESERVAC. Do not attempt to use other bags not intended for vacuum packaging.  Cut the bag straight across with scissors to open a sealed bag.
  • Page 13 Fig.1 2. Press the SEAL button when the vacuuming has been completed, and the unit starts to seal the bag automatically—Fig.2 Fig.2 Ⅳ. Vacuum package in a Canister & Vacuum Bowl 1. Wipe canister cover, and canister base and ensure they are clean and dry.
  • Page 14  To test the vacuum, tug on the cover. It shall not move;  Different canisters are available in the market and also from PRESERVAC. The operation procedure might be a little different. - 12 -...
  • Page 15 Please refer to the individual manual for the specific canister. Ⅴ. Marinate meat in a marinate Bowl 1. Take out the hose accessory from inside the lid, and insert it into the canister port on the unit and the centre hole of the canister cover. 2.
  • Page 16 Different canisters are available in the market and also from PRESERVAC. The operation procedure might be a little different. Ⅵ. Cord storage box 1. Put the power cord into the storage fixer when not using the machine located at the back of the device. Do not wrap the cord around the appliance.

  • Page 17: Vacuum Bags

    dried thoroughly before re-assembling; when re-assembling, it is careful to prevent any damage. Assemble to the original position to ensure no vacuum leaking. Vacuum bags Wash bags in warm water with mild dishwashing soap. 2. When washing vacuum bags in the dishwasher, turn them inside out and spread them over the top dishwasher rack so the entire surface is exposed to the washing water.

  • Page 18: Maintenance Kit Instructions

    MAINTENANCE KIT INSTRUCTIONS  Replacing the gasket: 1. Turn “OFF” the main switch and remove the Power Cord from the socket. 2. Make sure the unit is completely cool. 3. Open the Vacuum Lid. 4. Remove the gasket from the groove on the underside of the Acrylic Vacuum Lid.

  • Page 19: Troubleshooting

    Re-seal or use another bag. Uses only the specific vacuum bag with vacuum channels provided by PRESERVAC. Leaks along the seal can be caused by wrinkles, debris crumbs, grease or liquids. Reopen the bag, wipe the top inside of the bag...
  • Page 20 and smooth it out along the sealing strip before re-sealing. The machine does not turn to seal after vacuuming: There is a vacuum pressure sensor built into this machine. The machine will not turn to seal automatically if the vacuum pressure inside the bag cannot reach the predetermined vacuum pressure.
  • Page 21 Check the bag for a puncture or hole which may have released the vacuum. Do not vacuum hard packaging items with sharp points or edges (like bones or cracks of a nutshell). Cushion sharp edges in the contents of the bag with paper towels. The bag melts: Should the sealing strip or sealing element be overheated and melt the bag, it may be necessary to lift the lid and allow the sealing...

  • Page 22: Disposal Of The Device

    For more detailed information about the recycling of this product, please get in touch with your local council office or your household waste disposal service. CONTACT Taste Factory Pty Ltd t/as PRESERVER Canning Hwy, Alfred Cove 6154 WA, Australia www.preservac.com • info@preservac.com - 20 -...
  • Page 23 - 21 -...
