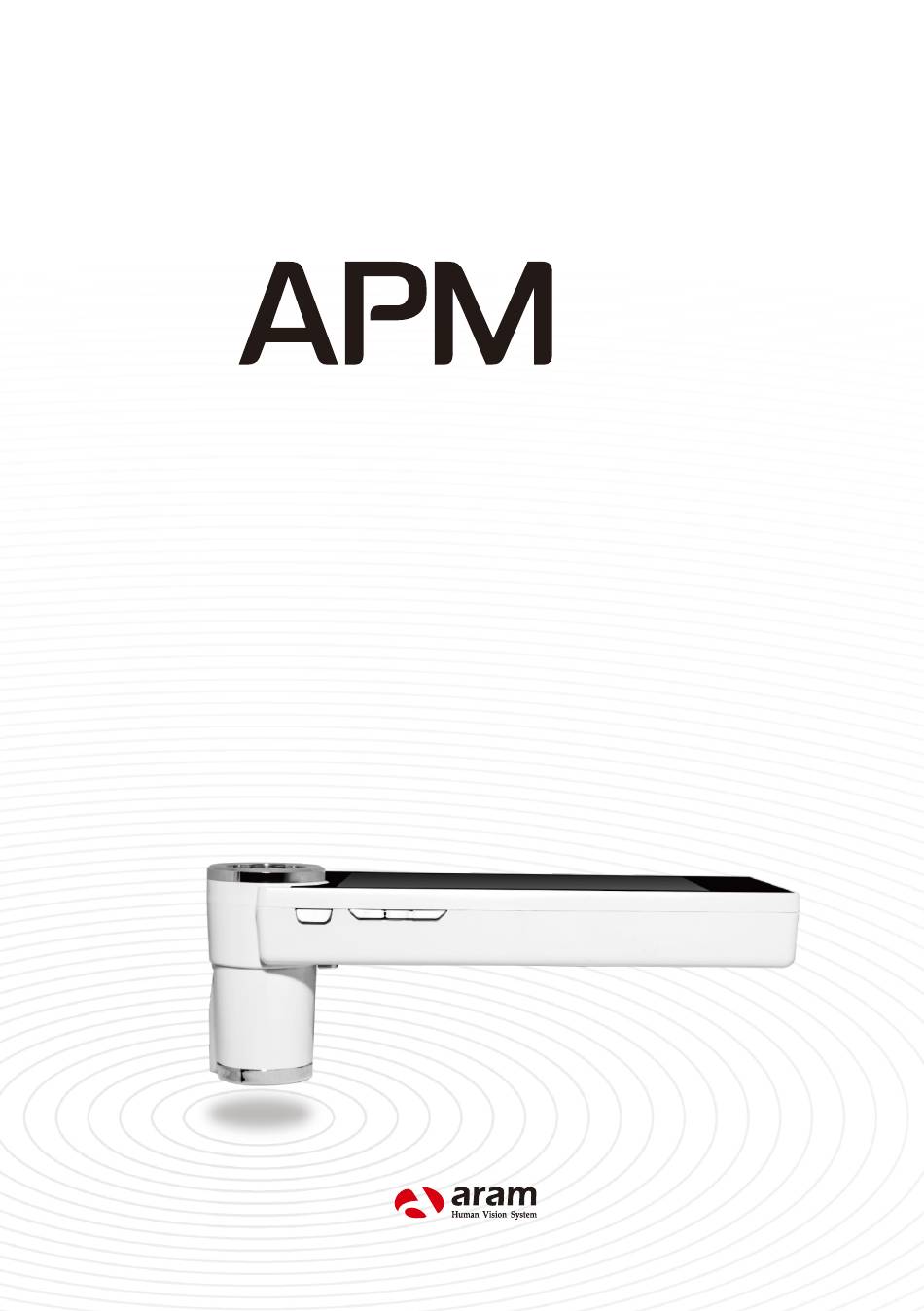

Page 1 -100 User Manual...
Page 2: Table Of Contents
Content A. Components B. H/W Parts ⅰ . Both Sides ⅱ. Settings C. System Settings ⅰ . Date &Time ⅱ. Wi-Fi ⅲ. Screen Timeout ⅳ. Language D. Application ⅰ . Settings ⅱ. Full Diagnosis Hydration Sebum Pore Melanin Acne Wrinkle Hemoglobin Result Send Result...
Page 3: Components
Components Main unit with skin lens(APM-100) Cradle Battery (2EA) Charger Cleaning cloth USB cable Manual Sebum paper 2 Box Lens cap (2EA) Air blower A. Components...
Page 4: H/W Parts
H/W Parts Both Sides APM lens Indicate LED Flash button Volume up & down button Flash X1 lens On/o button Lens module change button HDMI slot USB slot B. H/W Parts - Both Sides...
Page 5: Insert The Battery
H/W Parts Settings Insert the battery Open the battery cover by pushing it up with finger. Insert the battery and gently press the battery into place. Close the cover. To turn on & o the power Press and hold “power” button. Then “Indicate LED”...
Page 6 H/W Parts Settings Charger can be used for Amercian type & European type. The default is European type . Push the plug up. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor.
Page 7: System Settings
System Settings Date & Time Touch button. Press button. Touch “Date & time”. Please check the setting is Touch “Set date”. Change the date and touch correctly applied. “Set” button. C. System Settings - Date & Time...
Page 8 System Settings Date & Time Touch “Select time zone” Change into the current time Please check the setting button. zone . is correctly applied. Touch “Set time”. Change into the current time Please check the setting and touch “Set” button. is correctly applied.
Page 9: Ⅱ. Wi-Fi
System Settings Wi-Fi Touch “Wireless & networks”. Touch “Wi-Fi settings”. Check the square box. Wi-Fi list will be appeared. Among the lists, select the Wi-Fi Wait until the device is connection you could use. connected to with Wi-Fi. C. System Settings - Wi-Fi...
Page 10: Ⅲ. Screen Timeout
System Settings Wi-Fi Once the device is connected to Wi-Fi, you can see the Wi-Fi signal as le image. Wi-Fi Usage E - mail ☞ In order to send the analysis data. So ware update ☞ In order to update the so ware version. Screen Timeout Touch “Display”...
Page 11: Ⅳ. Language
System Settings Language Touch “Language & keyboard. Touch “Select language” Among the lists, touch your language. C. System Settings - Language...
Page 12: Application
Application Settings Press button. Touch "SETTINGS". D. Application - Settings...
Page 13: Crm
Application CRM - Full Touch "START DIAGNOSIS". Touch "FULL DIAGNOSIS". If you are new customer, touch “NEW CUSTOMER”. Input the information as below. A er registering all information, Check the diagnosis touch “SAVE” button. menu and touch "OK". Full Name, phone number, email address. Gender and age group.
Page 14 Application CRM - Simple Touch “SIMPLE DIAGNOSIS” button. Select the “GENDER” and “AGE” group. “START DIAGNOSIS” D. Application - CRM...
Page 15: Hydration
Application Hydration Touch the “SCAN” button. Check the result. A er beep sound, place the sensor on the skin. And hold it for 3~4 seconds until vibration and sound. D. Application - Hydration...
Page 16: Sebum
Application Sebum Put the sebum paper(pink area) Touch to activate camera. Touch to take picture onto the U-zone of your face for the pink area only. seconds. Touch to activate camera. Put the sebum paper (pink area) Touch to take picture onto the T-zone of your face for the pink area only.
Page 17 Application Sebum Touch “SCAN” to measure. Touch the “SKIN TYPE” button. Check the result. D. Application - Sebum...
Page 18: Pore
Application Pore Touch to activate camera. Place the lens onto your skin and touch button. Check the result. Touch “SCAN” to analyze. D. Application - Pore...
Page 19: Melanin
Application Melanin Place the lens onto your Touch to activate camera. skin and touch button. Touch “SCAN” to analyze. Check the result. D. Application - Melanin...
Page 20: Acne
Application Acne Place the lens onto your Touch to activate camera. skin and touch button. Touch “SCAN” to analyze. Check the result. D. Application - Acne...
Page 21: Wrinkle
Application Wrinkle Place the lens onto your Touch to activate camera. Move the white box and skin and touch button. touch “SAVE” button. Touch “SCAN” to analyze. Check the result. D. Application - Wrinkle...
Page 22: Hemoglobin
Application Hemoglobin Place the lens onto your Touch to activate camera. skin and touch button. Touch “SCAN” to analyze. Check the result. D. Application - Hemoglobin...
Page 23: Result
Application Result Touch “ELASTICITY” OR “HYDRATION”. Touch “Diagnosis”. Available to check Product recommendation. the diagnosis result. D. Application - Result...
Page 24 Application Result Touch ”Pore” or “Melanin” or means the worst status etc you want to check . in your diagnosis result. - Main concern. Available to check the Available to check Touch each parameter you want diagnosis result. “product image”. to check “skin image”...
Page 25: Send Result Ⅰ . Email
Application Send Resul - Emailt In SETTINGS page, touch Touch “Mail account” “7.Email setting”. A er select the mail account, Select the mail account to please Input the ID only and register on the list. password. Then touch “OK”. D. Application - Send Result...
Page 26: Touch Button
Application Send Resul - Emailt Touch “Wireless & networks” Press button. Touch button. In “Send result” page, “Receiver”s email address will be touch “Email”. appeared with your CRM information. Otherwise, input the email address. D. Application - Send Result...
Page 27: Ⅱ. Mirroring
Application Send Resul - Mirroring Press button. Touch "SETTINGS". It is able to connect to “Android Viewer” & “iOS Viewer” system when AP success is shown up on the screen. With your mobile device, In your mobile device go to Wi-Fi Mirroring system is started.
Page 28: Troubleshooting&Faq
Troubleshooting & FAQ I cannot turn on the device. Connect and charge the device (or the battery) using the adaptor provided the supplier. (The battery charging indicator will be shown on the system main page.) I cannot power on the device even the battery is still full. The battery might be dislocated on the device.
Page 29 Troubleshooting & FAQ The touchscreen doesn’t react to my finger commands. Before using for the first time remove the protective plastic film. I cannot connect to Blue-tooth. Make sure to use the Bluetooth hosting devices that have Bluetooth certified with the logo. You may need an external Bluetooth dongle for those devices that do not have Bluetooth feature.
Page 30: Warranty
Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram) - If the product is broken by user's fault, repair cost could be charged. A er warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram) How to send : - As sending a present from person to person by EMS or FEDEX.
Page 31: Service Request Form
Warranty Service request form Date of Company purchase Contact Person Address : Tel : Product name, serial No : Problems : Shipping address: 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
Page 32 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : info@aramhuvis.com...
