Summary of Contents for Retekess TH103
- Page 1 Wireless Calling System User Manual TH103...
-
Page 2: Product Introduction

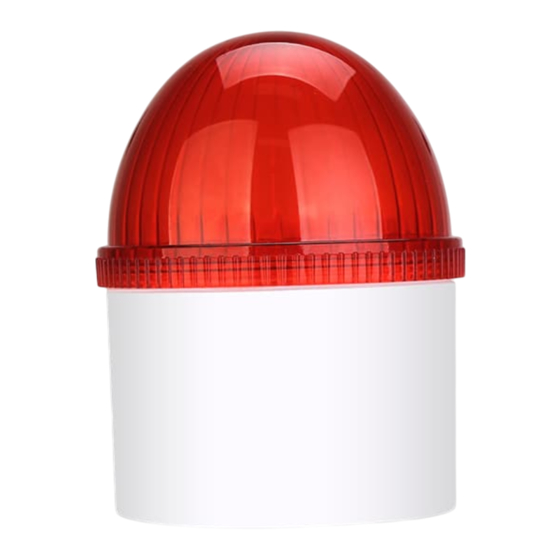

Product introduction Thank you for using Retekess calling System.In order to be better to use the product, please read this oper- ation instruction carefully. IInstall the receiver in the right location, and when so- meone needs help,just press the call button or pull the rope on the pager,the receiver will be flicker and siren. - Page 3 Pager Call button Cancel button Parameter Pager Receiver Working voltage DC6V Input Power DC12V1A Working current 12mA Sensitivity >103dBm Working frequency 433.92 MHz Working current 138mA±10mA Transmit power 15dBm Standby current ≤10mA±2mA Battery specification CR2032*2 Volume > 100dB Modulation Type...
-
Page 4: Packing List
Packing List Number Name Quantity Pager Receiver Power adaptor Screw User manual Back glue Installation... - Page 5 Function 1.Press Call button or pull the rope on the pager, the red light flicker with alarm voice on the receiver.The voice can be turn off or adjust to lower by the internal switch. 2.Press Cancel button on the pager, the light off and the voice stop on the receiver.
- Page 6 RF energy, which when used improperly, can cause biological damage. All Retekess radios are designed, manufactured, and te- sted to ensure they meet governmentestablished RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of the radios.
- Page 7 user manual, or separate safety booklet includes in- formation and operating instructions required to con- trol your RF exposure and to satisfy compliance requ- irements. Radio License (if appropriate) Governments keep the radios in classification, busin- ess radios operate on radio frequencies that are reg- ulated by the local radio management departments (FCC, ISED, OFCOM, ANFR, BFTK, Bundesnetza- gentur...).To transmit on these frequencies, you are...
- Page 8 FCC Requirements: • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, 2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 9 Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/ EU; the full text of the EU declaration of conform- ity is available at the following internet address: www.retekess.com. • Disposal The crossed-out wheeled-bin symbol on your product, literature, or packaging...
- Page 10 2) This device must accept any interference, including interference that may cause unde- sired operation of the device. Le présent appareil est conforme aux CNR d’In- dustrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage;...
- Page 11 • The device complies with RF specifications when the device used at 5mm from your body. Third-party beltclips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided.
- Page 12 • Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. Note: Exposure to loud noises from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the radio's volume, the less time is required before your hearing could be affected.
- Page 13 • Unplug the charger from the AC outlet be- fore attempting any maintenance or cleaning. • Contact Retekess for assistance regarding repairs and service. • The adapter shall be installed near the eq- uipment and shall be easily accessible •...
- Page 14 • The operating temperature of the EUT can’t exceed the specified range. Approved Accessories • This radio meets the RF exposure guide- lines when used with the Retekess acce- ssories supplied or designated for the product. Use of other accessories may WARNING...
- Page 15 Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replament if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3.The user can get warranty and after-sales service as below: •...
