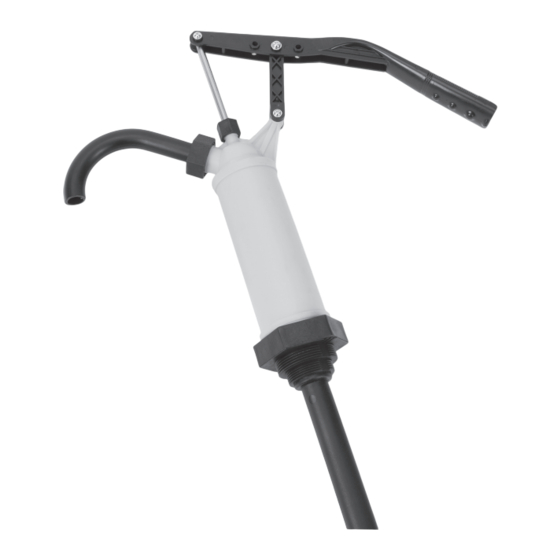

- Page 1 LEVER ACTION BARREL PUMP Item Number W54269 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
-
Page 2: Features And Benefits
FEATURES & BENEFITS • Manual operation for quick, clean transferring of fuel or water based and acidic solutions. • Dispenses approximately 9 ounces per stroke • Designed for use with 5 gallon to 55 gallon containers • 36 in. Telescopic suction tube adjusts to fit various barrels •... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY. WARNING: THE USER IS RESPONSIBLE FOR OPERATING THIS PUMP IN CONFORMANCE WITH O.S.H.A. -
Page 4: Tools Required
IMPORTANT SAFETY INFORMATION • Provide positive shut-off valves on all fixed fuel supplies. Fuel lines must be made of steel piping, leak-free and securely fastened. • Adequate ventilation is essential! Clean up all spills immediately when pumping or handling flammable liquids. •... - Page 5 ASSEMBLY INSTRUCTIONS 1. Read and understand instruction before Fig. 1 beginning. Flush with water prior to use. Use PTFE tape on all plastic threaded joints. 2. Connect the Handle (2) to the Pump Body (1) and lift rod with Machine screws (5), Lock Nuts (6) and Washers (7).
-
Page 6: Operation
OPERATION 1. Determine the proper length of suction Fig. 6 tube for your application and attach to pump. 2. Insert suction tube through bung hole located on container lid and submerge into liquid to be transfered. See Fig. 6. 3. Attach bung nut located on the bottom of the Pump Body (1) to the container lid. - Page 8 After 90 days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts which our examination shall disclose to be defective and under warranty.
