Vixen Air VXO4840DC Installation Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS

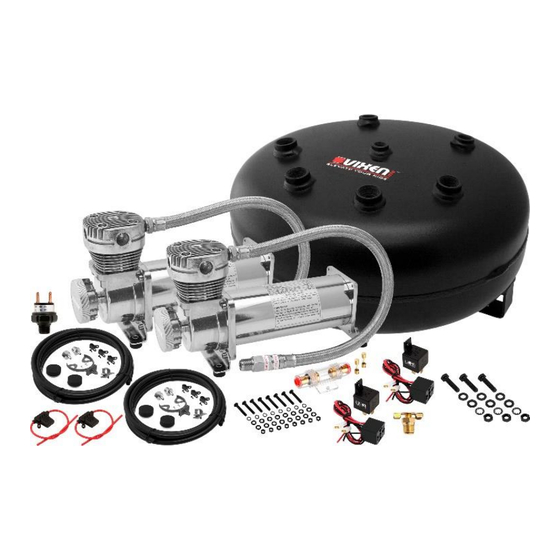

 200 PSI Air Compressor (Chrome Color) x 2
 4 Gallon Pancake Air Tank
 170-200 PSI Pressure Switch
 1/4" NPT Wing Style Drain Valve
 Intake Air Filter with Remote Installation Kit (10 FT
Hose) x 2
The specific voltage requirement for this on-board air system is 12 volt DC, therefore installation must be done to
a DC power source of 12 volts.
SAFETY INSTRUCTIONS
 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
 During and immediately after use, avoid touching any part of the compressor with bare hands as it is very hot
during such periods.
 Avoid use of product near flames, explosive materials, aerosol products or oxygen devices.
 Be sure to pump nothing other than atmospheric air.
 It is important to determine the maximum air pressure for any tool or attachment before using it.
 Air sprayer or nozzle should always be pointed away from any part of the body.
 Compressors has Thermal Overload Protection, if this protection activates, cut off the source of power and let the
unit cool down for about 30 minutes. This will reset the system and allow you to safely resume use of the air
compressor.
 Make sure your battery ground is detached and the tank has no pressure before you begin the installation.
 Employ equipment for eye protection during drilling operations.
 Ensure that your air system has no pressure before you begin.
PLANNING YOUR INSTALLATION
 Before beginning the installation, determine each component's spot.
 Confirm you have the proper length of airline and wire.
 Power wire to compressor should be kept short.
 To power up the air compressor, make sure you use a 12-gauge wire or thicker.
 4-PIN 12V/40A Relay with Pre-wired Plug x 2
 40A In-line Fuse with Waterproof Holder x 2
 60A In-line Fuse with Waterproof Holder x 1
 Mounting Hardware
PAGE 1 of 5
VXO4840DC
INSTALLATION GUIDE
