Product code: FS9581B
Fontana Sensor Faucets

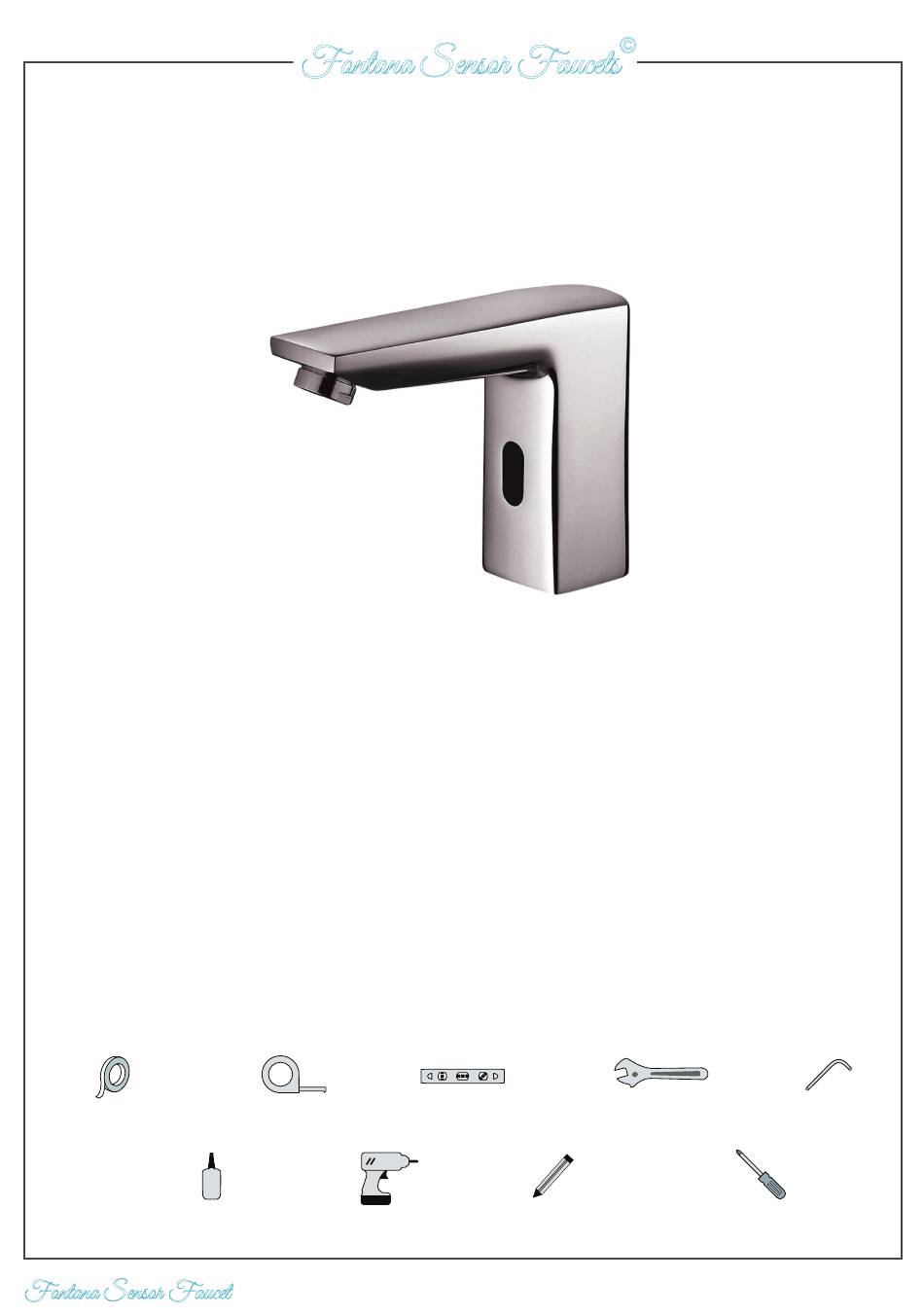

FONTANA CHICAGO BRUSHED NICKEL COMMERCIAL
AUTOMATIC SENSOR TOUCHLESS FAUCET INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
Fontana Sensor Faucet
1
Customer Service: 800-684-4489
Advertisement
Related Manuals for FONTANA SENSOR FAUCETS CHICAGO FS9581B
Summary of Contents for FONTANA SENSOR FAUCETS CHICAGO FS9581B
- Page 1 © Product code: FS9581B Fontana Sensor Faucets FONTANA CHICAGO BRUSHED NICKEL COMMERCIAL AUTOMATIC SENSOR TOUCHLESS FAUCET INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
- Page 2 © Fontana Sensor Faucets Technical Information Faucet Size Power: DC:6V(4AA alkaline battery) AC:220V-240V; 50/60HZ Water Consumption: 0.05Mpa-0.6Mpa Detection Zone: 16-32 cm or adjustable Battery lifespan: 100000 cycles 6” Static Power Consumption: 0.36mw Working Power consumption: 0.5mw Inductive Opening Time: < 1 second Inductive Closing Time: <...
- Page 3 © Fontana Sensor Faucets Control Box Installation Instructions 3. Reinstall Battery Box & Control Box Cover Re-install the battery box cover, matching the alignment arrows together. Set the battery box back 5 inch into the control box, and re-assemble the control box cover using the previously removed screws ensuring they are all fully tightened.
- Page 4 © Fontana Sensor Faucets 4b. Mount the control box on the wall. Drill two 1/8" Please wait approximately seconds after connecting the sensor cable for sensor calibration to (3mm) holes as shown, and push drywall anchors complete and to begin using the faucet.
- Page 5 © Fontana Sensor Faucets Battery (DC 6V) Only Control Box Normal Water Connection Hot & Cold Water Connection Battery (DC 6V) & AC 220V Control Box 1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the O-ring into the bottom groove of the faucet body.
- Page 6 © Fontana Sensor Faucets Battery Override Sensor Range In the event of a power failure, the sensor faucet will This sensor faucet can automatically adjust the automatically switch to battery-operated mode to inductive range within 10 seconds of electrification. ensure the faucet continues to function. The sensor...
