HUMITEMP®

INTERNET OF THINGS INTELLIGENT DEVICE FOR REMOTE

MONITORING

For LoRaWan™, Sigfox, and Wi-Fi Networks

User's Manual

omicroniot.com

June 2023

Table of Contents

Need help?

Do you have a question about the HUMITEMP and is the answer not in the manual?

Questions and answers

Summary of Contents for Omicron HUMITEMP

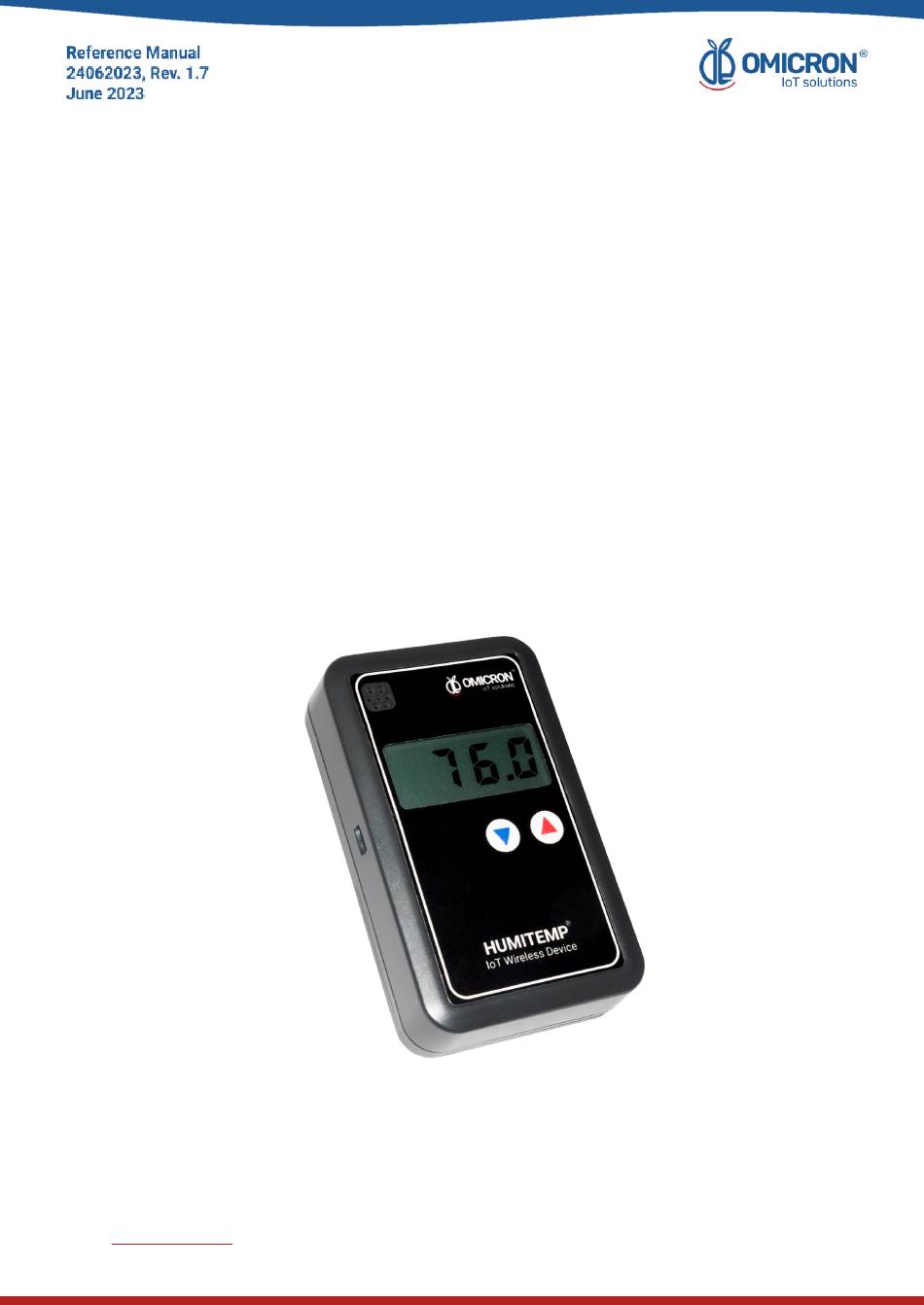

Page 1 HUMITEMP® INTERNET OF THINGS INTELLIGENT DEVICE FOR REMOTE MONITORING For LoRaWan™, Sigfox, and Wi-Fi Networks User’s Manual omicroniot.com June 2023...
Page 2: Version Control
Version control The following table contains the record of changes per manual version. Version Date Description 20/03/2023 Format change. Extensive revision and correction of content. Technical background information update. 24/06/2023 Version control implemented. Device image changed. omicroniot.com June 2023...
Page 3: Contact Information
If you encounter a problem with your Humitemp®, review the conﬁguration information to verify that your selections are consistent with your application: input conﬁgurations; chosen limits;...
Page 4 Warning notice standard This manual contains notices that must be observed in order to ensure personal safety, prevent damage to properties, and guarantee proper installation, use, and maintenance of the equipment. The notices referring to personal safety or the integrity of the device are highlighted in the manual by an alert symbol;...
Page 5: Table Of Contents
Contents Section 1: Introduction 1.1 Product Recycling / Disposal 1.2 Storage and Transport Section 2: Quick Start 2.1 Connect the external sensors 2.2 Power the device 2.3 Turn on the device 2.4 Send data wirelessly 2.4.1 Enter the Service Mode 2.4.2 Connect the device to a Wi-Fi®...
Page 6 Equipment ratings and certiﬁcations are no longer valid on any products that have been damaged or modiﬁed without the prior written permission of Omicron IoT Solutions. Any continued use of a product that has been damaged or modiﬁed without prior written authorization is at the customer's sole risk and expense.
Page 7: Section 1: Introduction
Recycling of device components and packaging should be taken into consideration and disposed of in accordance with local and national legislation/regulations. 1.2 Storage and Transport The Humitemp® is protected by a special packaging during transport and is guaranteed to handle normal loads during transport. omicroniot.com...
Page 8: Section 2: Quick Start
2.2 Power the device The Humitemp® is powered by 2 AA batteries (not provided by the manufacturer) or a MicroUSB power cable. The batteries are inserted into the battery box at the back of the device.
Page 9: Send Data Wirelessly
2 seconds. The device will conﬁrm the entry to the Service Mode by displaying the expression 'rEd' on its screen. While being in the Service Mode, the Humitemp® device generates a temporary Wi-Fi® network using its built-in Wi-Fi® module, named "IoTDevice_", followed by the device ID (e.g., "IoTDevice_bcddc212345").
Page 10: Connect The Device To A Wi-Fi® Network
1. On the General Setup Page (Figure 2-2), press the Conﬁgure Wi-Fi button to go to a page where you can see a scan of the Wi-Fi® networks detected by the Humitemp®, two ﬁelds to enter data, and two buttons (Save and Scan).
Page 11: Mount The Device
Figure 2-4 Waiting page for the connection to the Wi-Fi® network If the entered credentials are not correct, after pressing the "WiFi Results" button, the following page will appear: Figure 2-5 Wi-Fi® conﬁguration page invalid Otherwise, you will see: Figure 2-6 Wi-Fi® conﬁguration page correct After this, if desired, you can exit the Service Mode as described in 2.4.1.
Page 12 2. Use the cable clamp and strap supplied with the instrument to secure the external sensor cables as shown in the picture below: Figure 2-7 Humitemp® wall mounting. Securing the cables this way prevents the manipulation of the sensors from generating tension or dangerous bending near the connector, which minimizes the risk of them coming out or being damaged;...
Page 13: Section 3: Configuration
The "Remote Conﬁgurator" Dashboard presents to the users a summary of the conﬁguration options available for each type of the Omicron IoT solutions devices, and only requires them to choose a parameter to conﬁgure, after indicating the device model, and the elements or general aspects of the device to be conﬁgured.
Page 14: Use Of The Interface For Remote Configuration
Based on the above, it can be concluded that in the case of selecting and entering in the Remote Conﬁgurator, for what is shown in the following image (as an example), the Humitemp 44fa0e device will set the publishing time of its internal sensors to 10 minutes: omicroniot.com...
Page 15: Configure The Device Parameters Manually
3.2 Conﬁgure the device parameters manually If you do not want to use the Remote Conﬁgurator to conﬁgure the parameters of a Humitemp®, you can manually access the list of conﬁgurable parameters of the device. To do this, perform the following steps: 1.
Page 16 Remember that after 4 seconds of inactivity, the device stops displaying the list of conﬁgurable parameters, and returns to displaying on its screen the measurements of its enabled sensors. The complete list of conﬁgurable parameters is presented below: Table 3-1 Humitemp® conﬁgurable parameters Parameter Parameter Name Description...
Page 17 This value will added Ambient Temp. measurements of the internal Ambient At.0 measurement Temp. sensor, to correct any offset (it can adjustment. take negative values to subtract). This value will added Ambient humidity measurements of the internal Ambient AH.0 measurement Hum.
Page 18 Minutes the device waits for the alarm to Audible alarm start sound after detecting a measurement delay outside the admissible range. Minutes that the device waits to publish (or store in its internal memory for publication, Publication time if the parameter nSE is different from 1) new measurements on the Centriomega platform.
Page 19: Section 4: Configuration On Sigfox Backend
Section 4: Conﬁguration on Sigfox Backend If it is desired that the Humitemp devices work with the Omicron IoT Solutions monitoring platform, using the Sigfox telecommunications network, the user can enable bidirectional communication with the platform by associating Callbacks to the Uplink and Downlink messages of the devices on the Sigfox Backend.
Page 20 3. Select "Custom Callback". Conﬁgure the Callback as shown in the following image, and then press OK. ● Use the URL pattern: https://parse.ubidots.com/prv/omicron/newhumitemp ● Use the body: "data" : "{data}", "ID" : "{device}", "rssi" : "{rssi}", "timestamp" : {time} omicroniot.com...
Page 21: Configuring Callbacks For Downlink Messages
● Type DATA: BIDIR ● Channel: URL ● Use HTTP Method: GET ● Use the URL pattern: https://parse.ubidots.com/prv/omicron/downlink1 2. Then, in the Callbacks section of the edited device type, you will see a new Callback of type BIDIR like the following one: omicroniot.com...
Page 22 3. You will notice that this Callback is accompanied by an unﬁlled circle in its Downlink category. This means that the Callback has not been manually selected to handle Downlink messages of the device type. Before making this selection, check the following: 4.
Page 23: Section 5: Configuration On Lorawan™ Ttn
Section 5: Conﬁguration on Lorawan™ TTN If it is desired that Humitemp devices work with the Omicron IoT Solutions monitoring platform, using the LoRaWAN™ telecommunications network, the user can enable bidirectional communication with the platform by associating Callbacks to the Uplink and Downlink messages of the devices in The Things Network (TTN) platform.
Page 24 3. Then select "Custom Webhook". 4. Conﬁgure the Webhook as shown in the following image, and then press "Save changes". omicroniot.com June 2023...
Page 25: Downlink Api Key
● Webhook ID: Name that the user wants to assign ● Webhook format: JSON ● Base URL: Base URL chosen by the user. In the case of the Omicron IoT Solutions monitoring platform: https://parse.ubidots.com/ ● Downlink API key: See section 5.1.1 ●...
Page 26 3. Conﬁgure the Webhook as shown in the following image, and then press “Create API key”. 4. The following window will appear, copy the API key, because after closing it it will never be shown again, and then press "I have copied the key". omicroniot.com June 2023...
Page 27: Uplink Payload Formatters
5.2 Uplink payload formatters 1. In The Things Network, log into the application to which you have associated the LoRaWAN™ modules used by your Humitemp devices, and select “Uplink”, by pulling down the Payload Formatters menu located on the left side. omicroniot.com...
Page 28 2. Conﬁgure the Uplink as shown in the following image, and then press "Save Changes". ● Formatter Type: Custom Javascript formatter ● Formatter Code: Copy and paste the next function code: omicroniot.com June 2023...
Page 29 function decodeUplink(input) { var bytes = input.bytes; var type_b = (bytes[0]); var tamb = (bytes[1] << 8) | bytes[2]; if(tamb > 32768) tamb -= 65535; var hamb = (bytes[3] << 8) | bytes[4]; if(hamb > 32768) hamb = 0; var text1 = (bytes[5] << 8) | bytes[6]; if(text1 > 32768) text1 -= 65535; var text2 = (bytes[7] <<...
Page 30: Section 6: Centriomega® Remote Control And Monitoring Platform
Section 6: Centriomega® Remote Control and Monitoring Platform The Humitemp® works in conjunction with the Remote Monitoring WEB platform. Users can access the Remote Monitoring Platform via WEB, to perform, among other things: ● Remote monitoring and visualization of historical data records, in graphs and data tables, for up to 2 years.
Page 31: Reviewing Historical Data
The platform uses some basic elements to organize the information it manages and facilitate interaction with users. These are: Dashboards, Devices, and Events. An introduction to the use of each of them will be offered in this guide. 6.2 Reviewing historical data Dashboards are interfaces where relevant data is presented to the users.
Page 32: Reviewing Devices, Their Variables, And Configuration
Figure 6-3 Dashboard visualization example To learn how to modify said elements and how to conﬁgure a Dashboard, you can contact the manufacturer of the Humitemp®. Remember that Contact Information is provided at the beginning of this document. 6.3 Reviewing Devices, their Variables, and Conﬁguration A Device is a virtual representation of a physical device that takes data from sensors and transmits them through a particular network to the platform.
Page 33: Reviewing Alarms And Programmed Events
Reviewing the Variables of a certain Device allows for checking the update status and the current measure of each Variable. If it is suspected that one variable is not being updated properly, after entering the Device panel that should include it, its last activity period could be reviewed.
Page 34 To review an Event, initially follow what is indicated in Section 6.1, to access the platform. Inside the platform, users can ﬁnd a link to the section that includes all the Events available to their accounts and locate the Event of their interest: Figure 6-7 Events Conﬁguration To review the last activity of an Event (its log of updates, or the times in which one of its conditions where violated), the user can press the Log icon associated to any Event to see a...
Page 35 Figure 6-9 Events Dashboard To learn how to modify the conﬁguration of an Event, you can contact the manufacturer of the Humitemp®. Remember that Contact Information is provided at the beginning of this document. omicroniot.com June 2023...
Page 36: Section 7: Troubleshooting Guide
Humitemp® devices assign extreme values to measurements from enabled sensors that are not properly connected or are malfunctioning. The following table summarizes the outliers that a Humitemp® can associate with each sensor, and what each of them can indicate: Table 7-1 Outliers associated with each sensor Predeﬁned Humitemp®...
Page 37: The Device Has Stopped Updating Data On The Monitoring Platform
1. Verify that the device is in its Normal Operating State: The Normal Operating State of a Humitemp® can be recognized when the device presents on its display the different correct measurements taken by its sensors; whether they are internal or external, as long as they are properly connected.
Page 38: I Can't See The Device Id On Its Label
If you receive the message, even if you enter the correct device ID information, request assistance from Omicron IoT Solutions technical staff. Remember that contact information is provided at the beginning of this document.
Page 39 The API Label of each device is composed of its type and its ID, separated by a hyphen (e.g. humitemp-123abc). Once you have identiﬁed the ID of interest, you can use it to specify the device to be conﬁgured with the Remote Conﬁgurator.
Page 40: Global Headquarters
Global Headquarters America Regional Oﬃce Omicron IoT Solutions Address: La Amalita Km4 Llanogrande-Rionegro Mall Plaza del Sol Off. 202 Rionegro, Antioquia, Colombia. Phone: +57 (604) 4087542 WhatsApp +57 (317)4365062 comercial@omicroning.co www.omicroniot.com omicroniot.com June 2023...
