Eclipse ESOLPIR8W-PIR-BL Installation Instructions

This product is a rechargeable LED solar flood light with integrated PIR sensor. Movement is recognized
by the sensor in the detection area. The integrated rechargeable batteries are charged by the solar
panel. Sunlight/daylight provides energy for rechargeable batteries during the day and the product lights
up automatically at dusk.
Specification:
Product Code:
Wattage
Material
Solar Panel
Battery
IP Grade
Colour Temperature
Luminous Flux
P54
P54
LED Beam Angle
MANUAL
Charging time
Operating time
Housing Finish
Dimensions
Installation
Bracket
A
Bracket
B
Front view
mbined install
ombined install

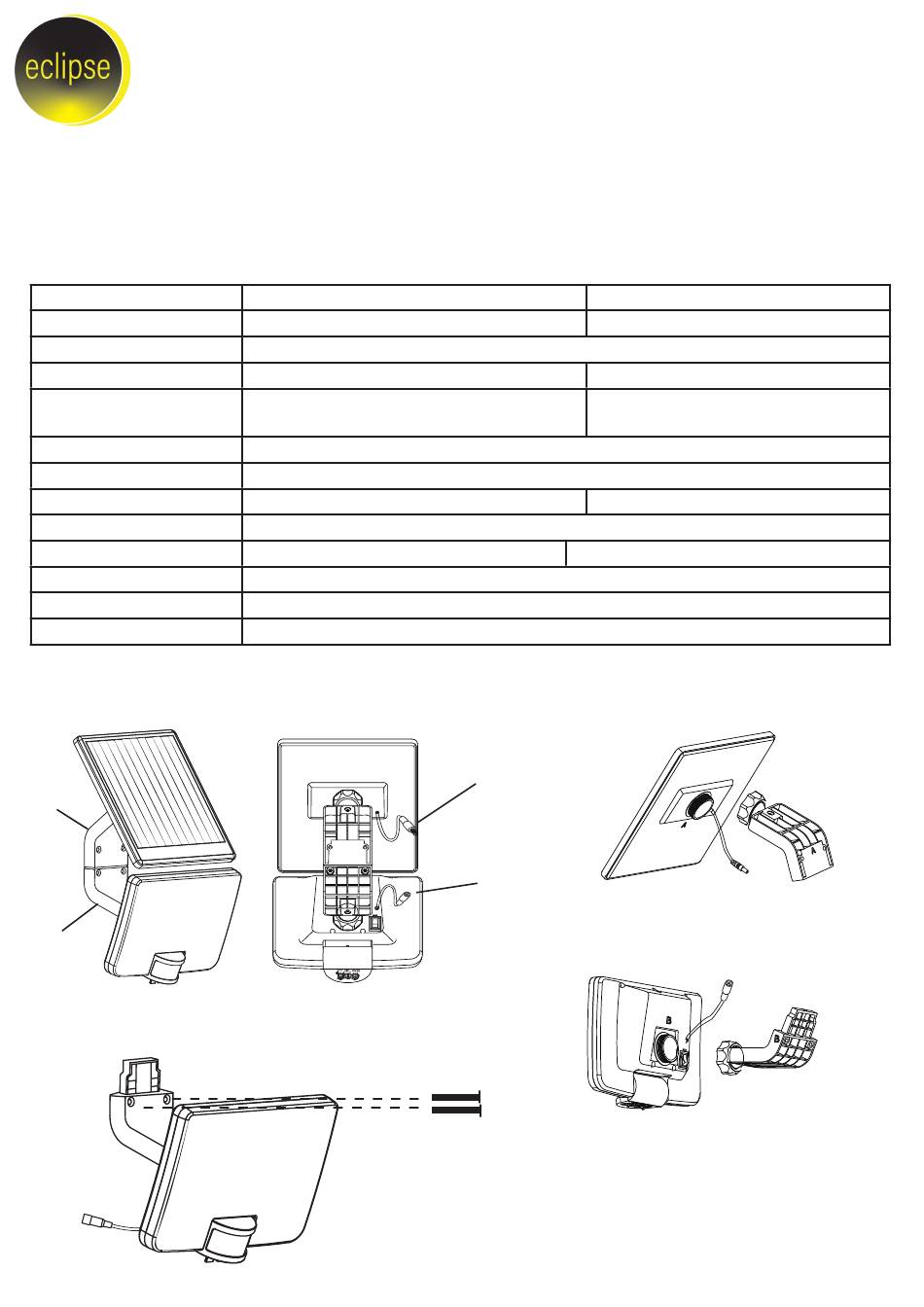

Installation Instructions
LED PIR Solar Floodlight
ESOLPIR8W-PIR-BL/WH, ESOLPIR12W-PIR-BL/WH
MANUAL
ESOLPIR8W-BL/WH
CdTe 5V 2.0w
18650 Li-ion, 3.7V
2000mAh
Min 40Lm / Max 800Lm
6-8 hours
6-8 hours (without direct sunlight the lighting time can be shorter)
Back view
Screw bracket "A" to the
3. Screw Floodlight
back of the solar panel "A".
(Bracket B) to the wall
MANUAL
8W
PC Housing, PC Diffuser
IP54 Waterproof
4000k
120°
Black or White
178 x 140 x 290mm
Connection
Cable A
Connection
Cable B
ESOLPIR12W-BL/WH
12W
CdTe 5V 2.0w
18650 Li-ion, 3.7V
4000mAh
Min 70Lm / Max 1500Lm
10-12 hours
1. Screw Bracket A to
Screw bracket "A" to the
back of Solar Panel
Screw bracket "A" to the
back of the solar panel "A".
back of the solar panel "A".
2. Screw Bracket B to
back of Floodlight
Screw bracket "B" to the back
of the ood light "B".
