INTRODUCTION
2xMOD is a dual modulation source. It provides two
channels of modulation that can be used to generate
envelopes, LFOs, gates, triggers, and clocks. The two
modulation sources are identical and independant.

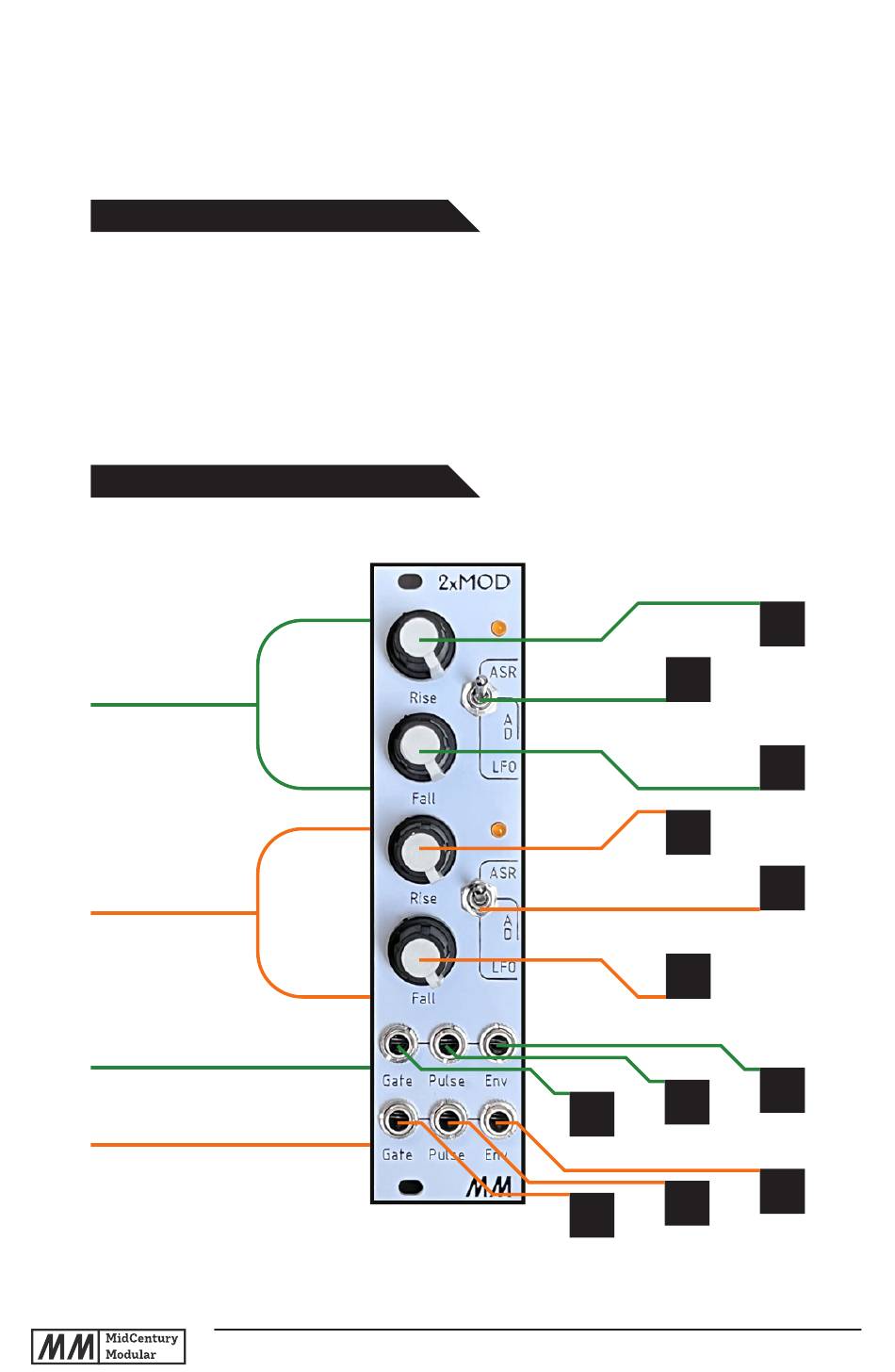

MODULE OVERVIEW
Mod-1 controls
Mod-2 controls
Mod-1 i/o
Mod-2 i/o
2xMOD
1C
2A
2B
1E
1D
2E
2D
1A
1B
2C
1F
2F
1
Advertisement
Summary of Contents for MidCentury Modular 2xMOD
- Page 1 2xMOD INTRODUCTION 2xMOD is a dual modulation source. It provides two channels of modulation that can be used to generate envelopes, LFOs, gates, triggers, and clocks. The two modulation sources are identical and independant. MODULE OVERVIEW Mod-1 controls Mod-2 controls...
- Page 2 MODULE OVERVIEW Modulator 1 Rise and fall times are set independently: rise time via knob 1A and fall time via knob 1B. Toggle switch 1C switches between three modes: Attack Decay en- velope (AD), Attack Sustain Release envelope (ASR), and cycling (LFO). Gate input 1D will trigger an en- velope or reset the LFO when a gate of at least 1V is received.
- Page 3 MODULE OVERVIEW Gate In Env Out Pulse Out Env Out Pulse Out Env Out Pulse Out...
- Page 4 MODULE OVERVIEW Mod 2 Normalization Modulator 2's gate input can be normalled to Modulator 1 via a jumper on the back of the mod- ule. With the jumper in the upper position, Mod 2's gate input will be normalled to Mod 1's Pulse output; in the lower position it will be normalled to Mod 1's gate in.
