Summary of Contents for DH electronics DHCOR STM32MP13

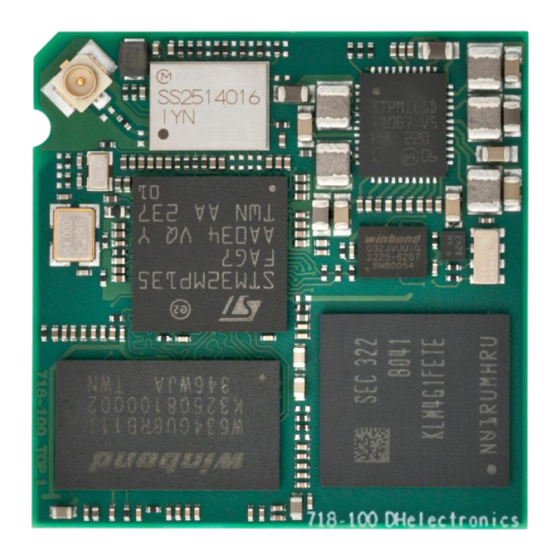

  • Page 1 DHCOR STM32MP13 User manual YOUR DIGITAL HEROES.
  • Page 2 User Manual - DHCOR STM32MP133 DH electronics GmbH History Version Data Description of changes Name 12.02.2024 First draft 13.06.2024 Review and released USM_DHCOR-STM32MP13.docx Seite 2 / 59...
  • Page 3 Configuration overview ..........................10 4.2.1 SDMMC variant overview ........................11 4.2.2 Bluetooth-UART variant overview ......................11 DHCOR STM32MP13 Development Board ....................12 Pin-Mux example configurations ......................... 12 Pin assignment .............................. 13 Protection circuits ..............................22 Power supply ................................. 23 Reset ..................................25 Boot modes................................
  • Page 4 User Manual - DHCOR STM32MP133 DH electronics GmbH Quad SPI NOR-Flash ............................29 EEPROM ................................30 RTC ..................................31 12.1 VBAT and VRTC: Backup voltage buffering ....................31 12.1.1 VBAT ............................... 31 12.1.2 VRTC ............................... 32 ADC / DAC reference voltage..........................33 On-Module I2C ..............................
  • Page 5 User Manual - DHCOR STM32MP133 DH electronics GmbH 22.4 Temperature range ............................51 Mechanical specifications ..........................52 23.1 Dimensions ..............................52 23.2 PCB land pattern ............................53 Assembly instructions ............................54 24.1 Moisture sensitivity and shelf life ......................... 54 24.2 Coplanarity ..............................
  • Page 6 User Manual - DHCOR STM32MP133 DH electronics GmbH 2 Abbreviations ANA = Analog ▪ BGA = Ball grid array ▪ CLK = Clock ▪ DNC = Do not connect ▪ EMC = Electro magnetic compatibility ▪ ESD = electrostatic discharge ▪...

  • Page 7: Main Characteristics

    24 bit RGB connection with HD resolution (1920 x 1080 pixels @ 30fps). The DHCOR STM32MP13 is perfectly suited for many fields of application and sets itself apart from the masses with its cost optimized Linux capabilities. The STM32MP13 family enables powerful IoT and/or HMI applications from sensors and actuators to the cloud with just one chip.
  • Page 8 User Manual - DHCOR STM32MP133 DH electronics GmbH SPI: 5x up to 50 MBit/s ▪ : 5x ▪ USB Host: 1x USB 2.0 HS ▪ USB OTG: 1x OTG 2.0 HS ▪ Embedded USB PHYs: 2x ▪ CSI (parallel camera): 1x 8 to 16 Bit / pixel data format ▪...

  • Page 9: Further Technical Information

    User Manual - DHCOR STM32MP133 DH electronics GmbH 3.4 Further technical information Beside this manual, please also have a look at the ST application note AN5474 “Getting started with STM32MP13 series hardware development”. This document shows how to use the STM32MP13 series and describes the minimum hardware resources required to develop a carrier board based on those MPU products.

  • Page 10: Configuration Overview

    User Manual - DHCOR STM32MP133 DH electronics GmbH 4 Hardware overview 4.1 Block diagram DHCOR LGA power (271 pins) U.FL antenna connector VCC inputs VCC ou tputs EEPROM VCC_IN RV-3032-C7 M24256E USB_OTG VBUS_USB VBUS_OTG VIO_OUT VCC_SD Sev eral VBUS LD Os...
  • Page 11 User Manual - DHCOR STM32MP133 DH electronics GmbH 4.2.1 SDMMC variant overview The STM32MP13 has only 2 SDMMC interfaces. eMMC and WiFi are connected via SDMMC, therefore the availa- bility of an external SDMMC interface depends on the configuration. The following figure shows the possible configurations.
  • Page 12 The DHCOR STM32MP13 Development Board only provides a headless reference implementation. Therefore, DH electronics also provides a default configuration for the DHCOR STM32MP13 for display applications. The next table shows an overview about all interfaces for both available configurations. Differences are marked with blue.

  • Page 13: Pin Assignment

    User Manual - DHCOR STM32MP133 DH electronics GmbH 4.5 Pin assignment The DHCOR-STM32MP13-01LG comes with the CPU type STM32MP13xxAG7 and with 9 x 9 mm TFBGA289 pack- age. DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not...
  • Page 14 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used VCC_IN_5V 5V supply voltage Input ETH1_MDC GPIO ADC1_INP12 GPIO Not connected LPO_IN_32kHz 1YN: LPO_IN_32kHz...
  • Page 15 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used LDO5_OUT PMIC: LDO5_OUT Output LDO3_OUT PMIC: LDO3_OUT Output SW_OUT PMIC: SW_OUT Output PE13...
  • Page 16 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used CODING_0 and LTDC_B4 Headless: PF5 GPIO HMI: LTDC_G0 PD10 Headless: PD10 GPIO PD10...
  • Page 17 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used USB_D1_M USB_D1_M Analog USB_D1_ OTG_HS_VBUS GPIO HW-CODING_1 GPIO Used for hardware coding on the SOM.
  • Page 18 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used PE11 Headless: SAI1_FS_A GPIO PE11 HMI: LTDC_R0 Headless: FDCAN2_TX GPIO HMI: LTDC_G5 PG11...
  • Page 19 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used QUADSPI_BK1_IO0 GPIO Connected to the SPI Flash on the SOM. Can only be used...
  • Page 20 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used HMI: ETH2_CRS_DV SAI1_SCK_A GPIO PE15 Headless: USART2_CTS GPIO PE15 HMI: LTDC_B7 PH11 Headless: ETH2_RXC...
  • Page 21 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes Pin not function Type Output name ball used NRST NRST NRST Connected to PMIC RST_N and eMMC 10nF to NRESET. Also,...

  • Page 22: Protection Circuits

    Table 3: Pin assignment 5 Protection circuits The DHCOR STM32MP13 module does NOT contain any protection circuits (e.g. ESD protection). These must be provided from the carrier board. Connected to STPMIC1D Pin 31. BUCK3 output voltage. For more information see STPMIC1D datasheet.

  • Page 23: Power Supply

    User Manual - DHCOR STM32MP133 DH electronics GmbH 6 Power supply The DHCOR-STM32MP13-01LG must be powered by a single 5.0 V supply voltage on the VCC_IN_5V pins. All other voltages are directly generated by the STPMIC1D and can also be used on the carrier board for the supply of peripheral components (Ethernet PHY, eMMC, …).
  • Page 24 User Manual - DHCOR STM32MP133 DH electronics GmbH Notes: When designing a carrier board, the EMC performance can be improved by adding filters to the supply ▪ voltages of the DHCOR module. Filtering must be added to all used output...
  • Page 25 User Manual - DHCOR STM32MP133 DH electronics GmbH 7 Reset The reset signal NRST is active low and directly connected to the STM32MP13 NRST pin. VDD is connected to VCC_IO voltage. Figure 6: Reset Notes: The 0.1µF capacitor is necessary, even if NRST is not used on the carrier board. It is also recommended to trigger a reset event (from the carrier board) only via an open-drain circuit.

  • Page 26: Boot Modes

    User Manual - DHCOR STM32MP133 DH electronics GmbH 8 Boot modes The STM32MP13 BOOT pins are directly available on the DHCOR pins W3, W4 and W5. No pull-up or pull-down resistors are added to the BOOT pins at the DHCOR module. These parts MUST be added external on the carrier board.
  • Page 27 User Manual - DHCOR STM32MP133 DH electronics GmbH 8.1 SD card boot Note: SD card boot is only available with a SOM variant without WiFi/BT. Otherwise the SDMMC1 interface is used for WiFi connection. If the carrier board contains a microSD/SD socket and it is planned to boot form microSD/SD card, it is manda-...

  • Page 28: Emmc Flash Memory

    User Manual - DHCOR STM32MP133 DH electronics GmbH 9 eMMC flash memory As non-volatile data storage, the DHCOR-STM32MP13-01LG module provides an eMMC flash memory to store the bootloader, operating system and application data on it. It is connected to the 8-bit SDMMC2 interface of the STM32MP13 SoC.
  • Page 29 User Manual - DHCOR STM32MP133 DH electronics GmbH 10 Quad SPI NOR-Flash The onboard Quad SPI NOR-Flash is connected to the QuadSPI interface bank1 of the STM32MP13. The used pins are also available on the DHCOR pins. It is possible to order the DHCOR module without onboard Quad SPI NOR-Flash as well.
  • Page 30 STM32MP13 I2C3 port. Please also have a look at chapter 14 On-Module I2C The EEPROM also provides an additional 64 byte identification page area. This area is used by DH electronics to store manufacturer specific information and cannot be used freely. But the normal EEPROM area can be used by the customer without any restrictions.
  • Page 31 DH electronics GmbH 12 RTC In addition to the RTC integrated in the STM32MP13, the DHCOR STM32MP13 is available with the optional onboard temperature compensated RTC RV-3032-C7 from Micro Crystal. The RTC is connected to the STM32MP13 I2C3 port. Please also have a look at chapter 14 On-Module I2C The additional RTC can be supplied during time keeping mode via a goldcap or a coin cell battery.
  • Page 32 If no external battery is used in the application, it is required to connect VBAT externally to VCC_IO. 12.1.2 VRTC When ordering the DHCOR STM32MP13 with the option [-RTC], VRTC is connected to the RV-3032-C7 to apply the needed backup voltage from carrier board.
  • Page 33 STM32MP13 REF+ CPU. If it is necessary to use the internal CPU reference voltage or if an external reference voltage must be applied, please contact DH electronics for a special variant of DHCOR-STM32MP13-01LG. USM_DHCOR-STM32MP13.docx Seite 33 / 59...
  • Page 34 User Manual - DHCOR STM32MP133 DH electronics GmbH 14 On-Module I2C By default, the following STM32MP13 pins are used as I2C interface on the System on Module. DHCOR pad name DHCOR default DHCOR Ball Input/ CPU ball Notes function Type...

  • Page 35: Radio Certification

    DH electronics GmbH 15 Wi-Fi / Bluetooth ® The DHCOR STM32MP13 module is available with the optional onboard Wi-Fi and Bluetooth module Type 1YN ® from muRata. Wi-Fi is connected to the 4-bit SDMMC1 interface of the STM32MP13 SoC and Bluetooth ®...
  • Page 36 32kHz oscillator, if the WiFi/BT module 1YN is mounted on the System on Module. For more in- formation see muRata 1YN datasheet. 15.5 Antenna and connector On the DHCOR STM32MP13 a standard U.FL. connector from TE 1909763-1 is used. U.FL. is compatible with the IPEX MHF1 connector specification. 2,8mm Figure 9: Wi-Fi/BT U.FL.
  • Page 37 User Manual - DHCOR STM32MP133 DH electronics GmbH Characteristics: Dipole PCB antenna 2.4GHz ~ 2.5GHz with peak gain 2.4GHz @ 0.9dBi. ▪ 100mm long cable and IPEX MHF I connector. ▪ -10°C to +85°C (With double-sided tape) and -40°C to +85°C (Without double-sided tape).

  • Page 38: Ethernet Connection

    User Manual - DHCOR STM32MP133 DH electronics GmbH 16 Ethernet connection 16.1 1Gbit Ethernet (Headless configuration) The DHCOR STM32MP13 Development Board (see link tbd…) reference design implements dual 1GBit Ethernet connection. DHCOR pad name DH electronics default RGMII signal DHCOR...
  • Page 39 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DH electronics default RGMII signal DHCOR Ball Input/ CPU ball function Type Output name ball Headless: ETH2_TXC ETH2_TXC GPIO HMI: FDCAN2_RX ETH2_TXD0 ETH2_TXD0 GPIO PG11 ETH2_TXD1 ETH2_TXD1 GPIO PG11...
  • Page 40 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DH electronics default RMII signal DHCOR Ball Input/ CPU ball function Type Output name ball HMI: PE5 PA12 Headless: ETH2_RXCTL ETH2_CRS_DV GPIO PA12 HMI: ETH2_CRS_DV ETH2_RXD0 ETH2_RXD0 GPIO ETH2_RXD1...
  • Page 41 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DH electronics default RMII signal DHCOR Ball Input/ CPU ball function Type Output name ball PG12 ETH1_INTB ETH1_INTB GPIO PG12 PA11 #ETH1_RST #ETH1_RST GPIO PA11 PA12 Headless: ETH2_RXCTL ETH2_CRS_DV...
  • Page 42 User Manual - DHCOR STM32MP133 DH electronics GmbH 17 Display / RGB connection The STM32MP13 provides a native 24-bit parallel digital RGB (Red, Green, Blue) interface with the following features: 2 input layers blended together to compose the display ▪...
  • Page 43 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DH electronics de- DHCOR Ball Input/ CPU ball Notes fault function Type Output name ball HMI: LTDC_R1 PH10 Headless: SPI2_MOSI GPIO PH10 HMI: LTDC_R2 PB10 Headless: SPI2_CLK GPIO PB10...
  • Page 44 User Manual - DHCOR STM32MP133 DH electronics GmbH DHCOR pad name DH electronics de- DHCOR Ball Input/ CPU ball Notes fault function Type Output name ball HMI: LTDC_B5 Headless: SPI2_MISO GPIO HMI: LTDC_B6 PE15 Headless: USART2_CTS GPIO PE15 HMI: LTDC_B7 Table 12: RGB display signals USM_DHCOR-STM32MP13.docx...
  • Page 45 User Manual - DHCOR STM32MP133 DH electronics GmbH 18 Hardware and DDR3 coding The following pins are used by DH electronics for hardware and DDR3 size coding: DHCOR pad name DH electronics de- DHCOR Ball Input/ CPU ball Notes fault function...
  • Page 46 User Manual - DHCOR STM32MP133 DH electronics GmbH Mainboard-HW (PCB) version PA15: HW Code bit 2 PD13: HW Code bit 1 PH3: HW Code bit 0 HW100 (version 1) HW200 (version 2) HW300 (version 3) HW400 (version 4) … HW800 (version 8)
  • Page 47 User Manual - DHCOR STM32MP133 DH electronics GmbH 19 JTAG / SWD connection The standard JTAG and SWD interface is directly available at the following DHCOR pins: DHCOR pad name DH electronics de- DHCOR Ball Input/ CPU ball Notes fault function...
  • Page 48 The port can be deactivated during production to avoid illegal access to the series device, but for development and prototyping this port should be accessible. On the DHCOR STM32MP13 Development Board, the following pins are used for bootloader and linux console: PA9: UART4_TX ▪...
  • Page 49 User Manual - DHCOR STM32MP133 DH electronics GmbH 21 USB boot and flash programming It is strongly recommended to enable the access to the USB OTG port on the carrier board and the possibility to switch to USB boot mode. Then the standard Linux dfu-util can be used to start up the board or the...

  • Page 50: Technical Specifications

    0.34 W (250 mA @ 1.35 V) VCC_DDR_MAX Only DHCOR STM32MP13 without any output power consumption. VCC_IO System on Module current consumption: PMIC = 1mA, SoC = 100mA, EEPROM = 1mA, QuadSPI = 25mA, RTC = 1mA, eMMC = 300mA, WiFi/BT = 370mA → max. 428mA w/o WiFi/BT and 798mA with WiFi/BT The values based on STM32MP135F core.

  • Page 51: Reset Timings

    User Manual - DHCOR STM32MP133 DH electronics GmbH Symbol Description Power symbol Max. power value VCC_IO IO supply voltage 2.63 W (798 mA @ 3.3 V) VCC_IO_WITH_WIFI/BT_MAX 1.41 W (428 mA @ 3.3 V) VCC_IO_W/O_WIFI/BT_MAX VREF_DDR DDR3 reference voltage 0.003 W (5 mA @ 0.675 V)

  • Page 52: Mechanical Specifications

    User Manual - DHCOR STM32MP133 DH electronics GmbH 23 Mechanical specifications 23.1 Dimensions 29,00 1,50 1,27 A2 1 B2 1 E2 1 F2 1 Ø2,00 Top vi ew J2 1 K2 1 ( conntacts on L 21 bottom s ide)
  • Page 53 User Manual - DHCOR STM32MP133 DH electronics GmbH 23.2 PCB land pattern 31,00 1,50 1,27 D HCO R si ze A2 1 B2 1 C2 1 D2 1 E2 1 F2 1 G2 1 H2 1 J2 1 PC B land patter n...

  • Page 54: Moisture Sensitivity And Shelf Life

    User Manual - DHCOR STM32MP133 DH electronics GmbH 24 Assembly instructions DHCOR-STM32MP13-01LG has been designed for SMT mounting of the module on the carrier board. The DHCOR uses LGA contact pads on the bottom side for the connection to the carrier board. During the production process of the module solder paste is applied to the LGA pads.
  • Page 55 User Manual - DHCOR STM32MP133 DH electronics GmbH Profile Feature Pb-Free Assembly Preheat Temperature Min (T 150 °C smin Temperature Max (T 200 °C smax Time (t 60-120 seconds Time maintained above: Temperature (T 217 °C Time (t 60-150 °C Peak/classification temperature (T 260 °C...

  • Page 56: Tape And Reel Packaging

    User Manual - DHCOR STM32MP133 DH electronics GmbH 25 Tape and reel packaging Figure 18: Tape and reel packaging USM_DHCOR-STM32MP13.docx Seite 56 / 59...
  • Page 57 Please have a look at chapter 15.4 32kHz reference clock DH electronics strongly recommends to enable the access to the USB OTG port on the carrier board for flash programming. Please have a look at chapter 21 USB boot and flash programming Please ensure, that VBAT is connected to VCC_IO at the carrier board design, if no external bat- tery is used in the application.
  • Page 58 User Manual - DHCOR STM32MP133 DH electronics GmbH Number Checklist / Design notes Use Mainboard-HW coding pins for your customer specific mainboard PCB coding. Please have a look at table Table 16: Mainboard-HW coding Table 23: Hardware design checklist USM_DHCOR-STM32MP13.docx...
  • Page 59 User Manual - DHCOR STM32MP133 DH electronics GmbH 27 RoHS conformance This device has been manufactured RoHS II-compliant. USM_DHCOR-STM32MP13.docx Seite 59 / 59...
