COMMERCIAL AUTOMATIC INFRARED FOAM CHROME
SENSOR SOAP DISPENSER INSTALLATION
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
Fontana Sensor Faucet
Fontana Sensor Faucets
INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
Product code: FS1021
Hex Wrench
Screwdriver
fontanasensorfaucets.com
Customer Service: 800-684-4489
*not included
Advertisement
Table of Contents
Related Manuals for FONTANA SENSOR FAUCETS FS1021
Summary of Contents for FONTANA SENSOR FAUCETS FS1021

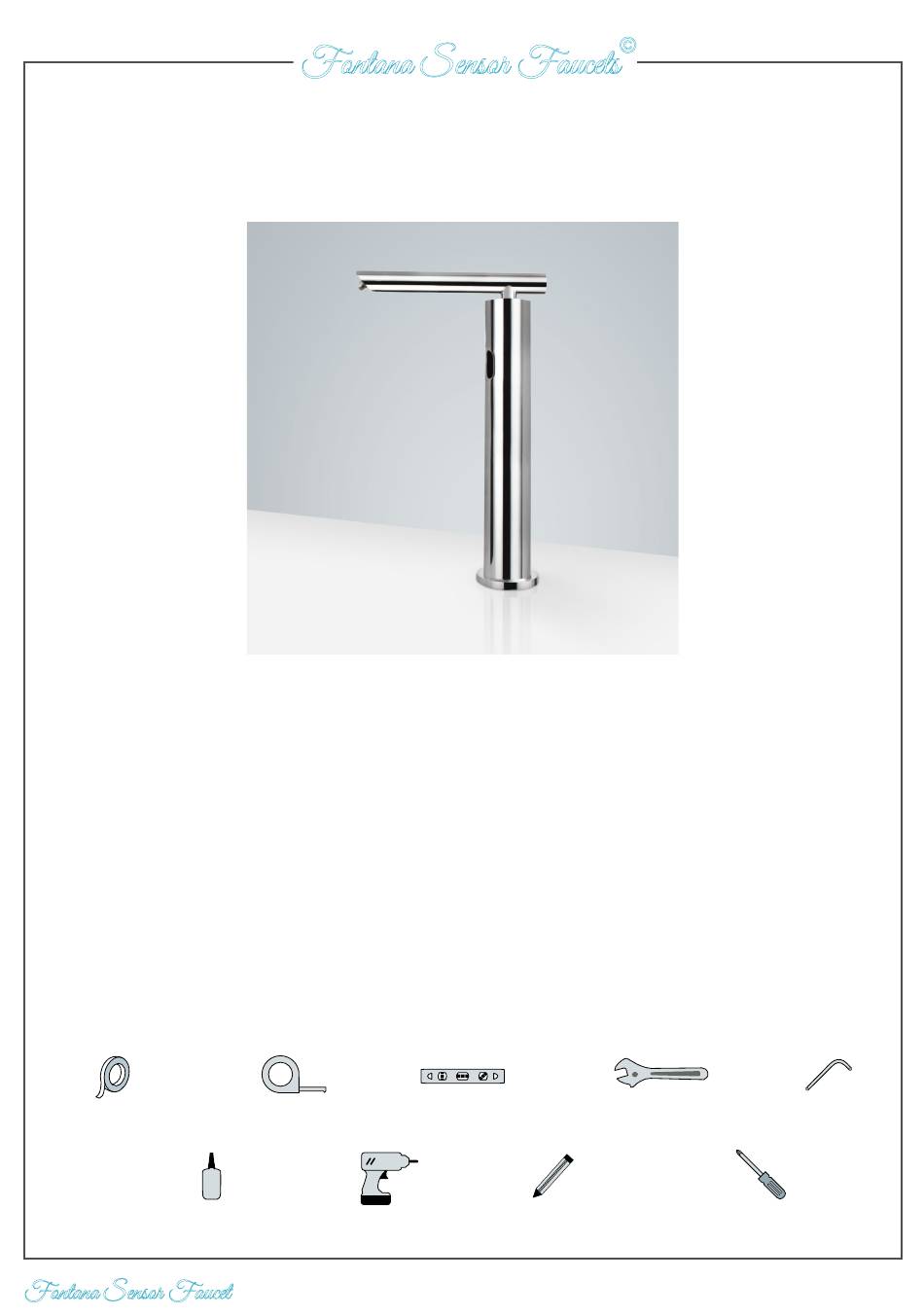

- Page 1 © Product code: FS1021 Fontana Sensor Faucets COMMERCIAL AUTOMATIC INFRARED FOAM CHROME SENSOR SOAP DISPENSER INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
-
Page 2: Specification
© Fontana Sensor Faucets Size Specification Specification Product Type: Product Type: Commercial Commercial Main Construction Material: Main Construction Material: Brass Brass Mount Type: Mount Type: Deck Deck Handle Type: Handle Type: Infra-Red Infra-Red Power: Power: 220V-240V 50Hz, (DC6V, 600mA) Soap Pump:... - Page 3 © Fontana Sensor Faucets Installation Method Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
-
Page 4: Battery Box
© Fontana Sensor Faucets Deck Mounted Faucet Battery Box Battery case Battery case cover － ＋ Screws ＋ － Batteries fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489... - Page 5 © Fontana Sensor Faucets 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month.
-
Page 6: Commissioning Sequence
© Fontana Sensor Faucets Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time the • Wipe away any debris adhering to the spout or following sequence must be carried out. sensor. Fill the bottle full of soap.
