Plus Hub
SKU: H01

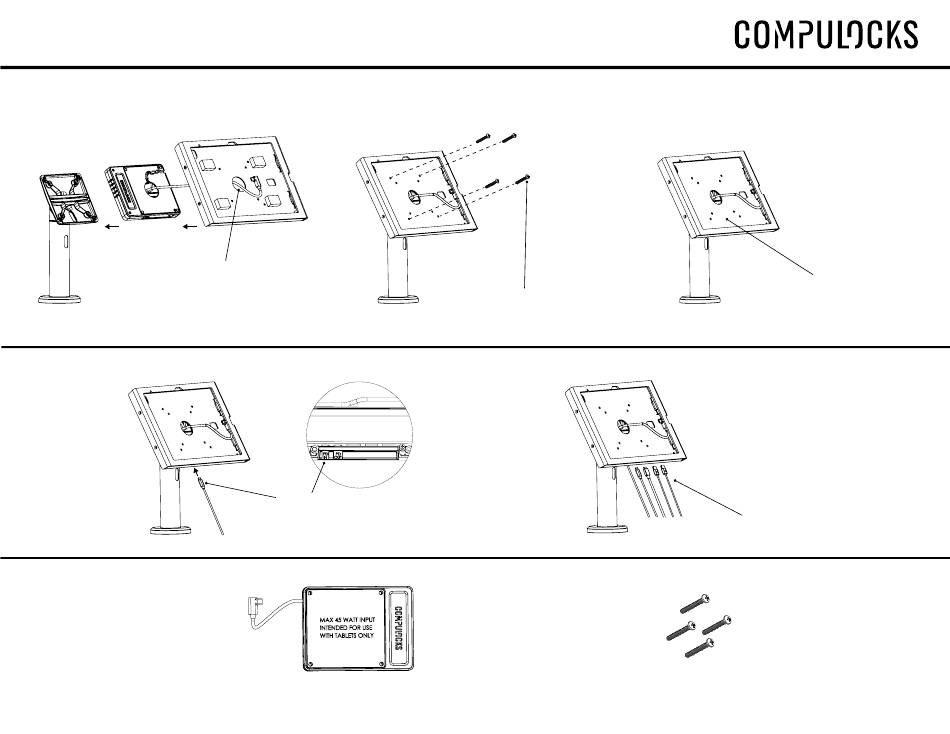

Assembly Instructions
With Stand
1
BRING THE PLUS HUB CABLE
THROUGH THE CENTER HOLE OF THE
BACKPLATE OF THE ENCLOSURE
ALIGN SCREW HOLES ON
ENCLOSURE, PLUS HUB AND STAND.
4
IN THE BOX
©Compulocks Brands Inc. All Rights Reserved
2
WITH PROVIDED SCREWS CONNECT
THE ENCLOSURE THROUGH THE
PLUS HUB TO THE STAND. TIGHTEN
CONNECT POWER CABLE TO
LEFT HAND INPUT PORT ON
PLUS HUB
Plus Hub
www.compulocks.com | online@maclocks.com | +1 800-948-0344
3
5
Philips Pan Head M4, 30mm
CONNECT PLUS HUB CABLE TO
TABLET AND SECURE TOP PLATE
AS PER INSTRUCTIONS PROVIDED
FOR YOUR ENCLOSURE
CONNECT OTHER CABLES TO
PLUS HUB AS REQUIRED
Sheet 1 of 2
