CONTENT Product Introduction......3 Instructions for use........5 Component description......6 Operating Instructions......8 Install battery........8 Turn on..........9 Shutdown..........9 Scenery observation......10 Menu operation........11 Screen brightness adjustment....12 Infrared light adjustment...... 13 Digital zoom........14 Display color change......15 WiFi on and off........16 Date and time setting......17 Auto power off........ -
Page 3: Product Description
● This device can be used day and night, the optical magnification is 1 times, and the digital magnification is 3 times. ● To achieve a better night vision effect, the device is set to black and white mode. ●... - Page 4 PRODUCTDESCRIPTION ● This device comes with WiFi, which can communicate with the APP installed on the mobile device, and realize the functions of recording and taking pictures in the APP. ● This device comes with a rack interface, which can be matched with different bucket racks through different interface conversions.
-
Page 5: Usage Notice
Can work in very low light environment. ● The night vision device is equipped with infrared lighting, suitable for use in pure dark environment. ● When the auxiliary lighting is turned on in a dark... -
Page 6: Component Description

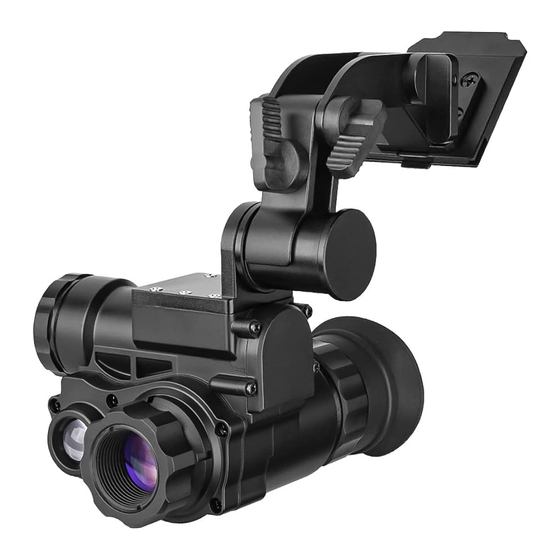

DIAGRAM 1-Battery cover 2-Infrared light 3-Hanger 4-Objective lens cover 5-Diopter wheel 6-Eyepieces 7-Focusing wheel... - Page 7 DIAGRAM 8-Down button 9-Up button 10-Switch key...
-
Page 8: Operating Instructions
OPERATINGINSTRUCTIONS 【Install the battery】 Unscrew the battery cover 1, take a usable battery (18650 battery with sufficient power), insert the negative electrode of the battery into the battery compartment, screw the battery cover in place, press the power button , the internal display screen lights up, indicating the battery installation Correct;... -
Page 9: Turn On
OPERATINGINSTRUCTIONS 【Turn on】 ● Remove the objective lens cover 4. ●C lick the power button , View from 6 eyepieces, see the display inside the device .The screen lights up, Display as shown on the right Icon, the device enters the normal working state. Icon description: 1 WiFi status 2 Infrared light status... -
Page 10: Scenery Observation
ComponentDescription OPERATINGINSTRUCTIONS 【Scenery observation】 ● Remove the protective cover of the objective lens, in the observation state, aim the objective lens at the scene to be observed, and watch the display screen from the eyecup 6. a) Adjust the diopter handwheel 5 to make the text icons on the screen clearest;... -
Page 11: Menu Operation
目录 OPERATINGINSTRUCTIONS 【 Menu operation】 ● Most function settings are performed in the menu. ●L ong press the up button for 2~3 seconds, release the button, and the menu appears. ●O n the interface where the menu appears, long press the up button for 2~3 seconds, release the button, the menu will disappear ●I n the menu operation, the up... -
Page 12: Component Description
ComponentDescription 【Screen brightness adjustment】 ●I n the observation state, press the up button and hold for 3 seconds to release the key to enter the menu interface. The up and down button can control the cursor to move up and down. ●... -
Page 13: Infrared Light Adjustment
● Press 9# for a long time, the logo "IR OFF" at the lower left corner of the screen changes to which means entering night vision mode. "IR ON", indicating that the infrared light has been turned on.At this time, press the down button once, the logo will change to "IR 1", and the number 1... -
Page 14: Digital Zoom
OPERATINGINSTRUCTIONS 【Digital zoom】 ● When the device is turned on, digital zoom operation can be performed. ●P ress the up button once, and the screen will zoom in to 2X Each time you press it, the digital zoom will cycle between 1 and 3, and the maximum value is 3. -
Page 15: Display Color Change
ComponentDescription OPERATINGINSTRUCTIONS 【Display color switching】 When the device is turned on and the infrared light is off, the display color can be changed. l Press the down button , the display color will switch between black and white and green. -
Page 16: Wifi On And Off
OPERATINGINSTRUCTIONS 【WiFi on and off】 ● The status of WiFi on and off is displayed in the status bar in the lower left corner, as shown in the figure below, the status with a red slash is the WiFi off state. ●... -
Page 17: Date And Time Setting
OPERATINGINSTRUCTIONS 【Date and time setting】 lSelect “Date/Time” in the menu interface and press the power button to enter the date/time setting submenu lOn button Control the selection cursor bar to move among the setting items. l Up and down button Change the parameter value of the cursor bar position.Press the on button to place the selection cursor at the last position,... -
Page 18: Auto Power Off
OPERATINGINSTRUCTIONS 【Automatic shut-down】 ● Select "Auto power off" in the menu interface, and press the button to enter the submenu of automatic power off settings. ●T he option "Off" means that the machine will not shut down automatically. ●T he options "3 minutes", "5 minutes" and "10 minutes"... -
Page 19: Language Setting
OPERATINGINSTRUCTIONS 【language settings】 ● Select "Language Setting" in the menu interface, and press the button to enter the language setting submenu. ●T he supported languages of this device are as follows: ●S implified Chinese, Traditional Chinese, Italian, Japanese, Russian, English, French, Spanish, Portuguese, German. -
Page 20: Restore Default Settings
OPERATINGINSTRUCTIONS 【Restore default settings】 ● Select "Default Settings" in the menu interface and press the power button to enter the default setting submenu. ● I f you select the "OK" option, the device will restore the default settings. DefaultSetting Returnmenusetting WiFi WiFi todefaults... -
Page 21: Basic Parameters
BASIC PARAMET ERS 【Basic parameters】 Parameter Type Item value Magnification Objectivelens 17.5mm aperture Fieldofview 40° Optical Eyepiece performance +2~-5D adjustmentrange Lowlight 200m observation distance Nolightandblack observation 100m distance Operating 3.7VDC Voltage power Replaceable R e c h a r g e a b l e battery lithiumbattery18650 supply... -
Page 22: The Standard Configuration
THESTANDARDCONFIGURATION 【The standard configuration】 Name Amount usermanual Battery Externalpoweradapter Batterycharger Lenscloth Flannelsoftbag 【Optional configuration】 Name Amount Helmetadapter... -
Page 23: And Matters Needing Attention
If the night vision device is not used for a long time, please keep the battery charged frequently to prevent the rechargeable battery from failing.
