- Page 1 Installation and operating instruction Multigateway Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
CONTENT Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Scope of Supply Description Multigateway Technical Data Installation Multigateway installation Example CAN-Connection Operation Main Menu Devices WiFi Modbus Data Service Values Settings Connecting SOREL Connect App to the Multigateway Notes... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EG-Conformity By affixing the CE mark to the unit the manufacturer declares that Multigateway conforms to the following relevant safety regulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU EU RoHS Directive 2011/65/EU EU WEEE Directive 2012/19/EU (Reg.nr. DE 23479719) conforms. Conformity has been verified and the corresponding documentation and the EU declaration of conformity are kept on file by the manufacturer. General Instructions Please read carefully! These installation and operating instructions contain basic instructions and important information regarding safety, installation, commissioning, maintenance and the optimal use of the unit. Therefore these instructions must be read and understood completely by the installation technician/specialist and by the system user before installation, commissioning and operation of the unit. This unit is an automatic, electrical Data logger with GUI. Install the unit only in dry areas and under the ambient conditions described in “Specifications”. In addition, observe the applicable accident prevention regulations, the regulations of the Association of Electrical Engineering, the local power supply utility, the applicable DIN-EN standards and the installation and operating instructions for the additional system components. Installation, electrical connection, commissioning and maintenance of the device may only be carried out by an appropriately trained specialist. Users: Make sure that the specialist gives you detailed information on the function and operation of the unit. Always keep these instructions in the vicinity of the unit. -
Page 4: Warranty And Liability
Improperly executed repairs. Unauthorised structural changes to the unit. Use of the device for other than its intended purpose. Operation above or below the limit values listed in the ‚Specifi cations‘ section. Force majeure. Disposal and Pollutants The unit conforms to the European RoHS 2011/65/EU for the restriction of the use of certain hazardous substances in electrical and electronic equipment. For disposal, according to the WEEE Directive 2012/19/EU, the device does not belong in household waste under any circumstances. Dispose of the unit only at appropriate collection points or ship it back to the seller or man- ufacturer. Scope of Supply Multigateway Multigateway installation guide Mounting frame for surface mounting 2 screws 3.5 x 35 mm and 2 wall plugs 6 mm for wall mounting of the surface mounting frame 2 screws 3 x 9 mm for connecting Multigateway with surface mounting frame 2 single wire connectors Operating tool CAN terminating resistor CAN adapter cable 50 mm ... -
Page 5: Description Multigateway

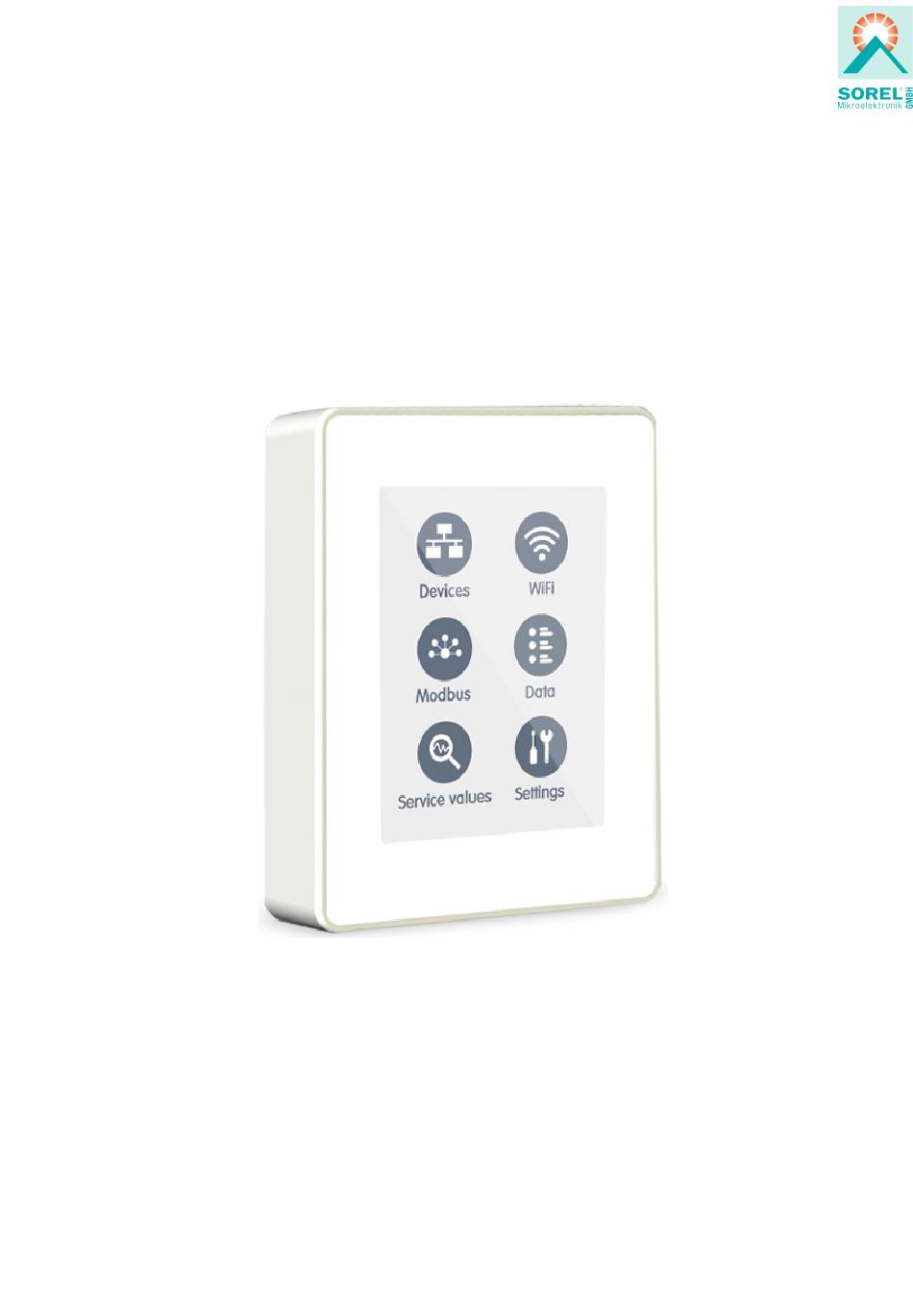

DESCRIPTION MULTIGATEWAY The Multigateway is a data logger with a graphical user interface. There are two main functionalities (I and II): I) The multigateway can communicate via Modbus with a "master" that can retrieve logged data. The Multigateway receives data from controllers (TDC, HCC, FWC series) via CAN bus. The data are: 1) Sensor data 2) Relay data II) The multigateway can communicate with a "master" via Modbus to read and set parameters. The multigateway reads/sets the parameters of controllers (TDC, HCC, FWC series) via CAN bus. Technical Data 2-part, ABS plastic Housing 75 mm x 95 mm x 19 mm Glass front Capacitive touch panel Display Fully graphical display, 240 x 320 dots 2.8 inches (7 cm) diagonal Operation Intuitive user guidance Deutsch English Language Italiano Español Français Electrical specifications: Power Supply ... -
Page 6: Installation
INSTALLATION Multigateway installation Mount the unit at a suitable location. Pay attention to suitable environmental conditions. Direct sunlight, sources of heat and cold, e.g. radiators and windows must be avoided. Recommended connection cable: twisted pair cable with shield, e.g. bus cable 3 × 2 × 0,22 mm². Strip cables, slip protective conductor over, and remove fill material as needed. When wall mounting, make sure that the cables are kept as short as possible (max. 40 mm for direct wall mounting), as unnecessary vein loops in the Multigateway housing can lead to problems. Strip the last 8 - 9 mm of the wires. Isolate shielding and connect it at a suitable location (controller or CAN-box) to the protective conductor. Any contact between protective conductor and circuit board can cause serious damage. Wall Installation Hold the base at the selected position and mark 2 fixing holes diagonally. Make sure that the wall surface is as even as possible so that the housing does not become distorted when it is screwed on. Using a drill and drill holes at the points marked on the wall and push in the plugs. Insert screws and screw it in slightly. Align the base and tighten the screws. Open the connection terminals with the enclosed operating tool and make the electrical connection (GND, 24 VDC, CAN low und CAN high) as described. The first and last unit in the CAN-network in series must be fitted with terminating resistance. The connection of the opposite side (controller) can be found in the corresponding terminal diagram in the controller manual. ... -
Page 7: Example Can-Connection
Then place the control panel on the lower part of the housing as illustrated in the pic- ture and secure it with the screw supplied. Switch on the mains voltage and put the Multigateway into operation. The setup wizard can be accessed at any time in Multigateway under the menu item 'Expert'. Example CAN-Connection Only CAN in power supply from 4 cores of the regulator. The order and the number of devices (max. 50) is arbitrary. -
Page 8: Operation
OPERATION Main Menu Devices Add devices to the network WiFi WiFi settings Modbus Set baud rate and parity Data Settings for storing data Service Values Settings Messages and system-relevant data Device-specific settings such as lan- guage, date and screen brightness. -
Page 9: Devices
Devices Main menu > Devices Add Device Starts the search for new available devices in the network Description Shows the detected type of the unit Main menu > Devices > Multigateway Resources Displays all connections connected to the device Firmware Display of the current firmware version and possibility to update the firmware. Modbus ID Basic Modbus ID... -
Page 10: Wifi
WiFi Main menu > WiFi Activate WiFi Activate WiFi function WiFi status Select Network Information about the WiFi status and Scan for available networks and the device address. select the network Manage Access SSID Allow up to 5 users to access the Manually entering the WLAN name device by entering their e-mail addresses. WiFi password Entering the WiFi password ... -
Page 11: Modbus
Modbus Main menu > Modbus Baudrate Setting the transmission rate during a Parity communication Setting the parity of the Modbus RTU interface none = 11 bits + stop bit even = number of bits even odd = number of bits odd Data Main menu > Data ... -
Page 12: Service Values
Service Values Main menu > Service values Message Log Display of the error memory WiFi-Status Display of the WiFi status CAN Bus Status CAN bus status display System Status System Update Display of the system status Enables an update of all devices inter- connected in the private CAN net- work. -
Page 13: Connecting Sorel Connect App To The Multigateway
Connecting SOREL Connect App to the Multigateway Download SOREL Connect App app to your mobile device. Currently available on Google Play (Android) and Apple App Store (iOS). Start app and create account. Click activation link in your e-mail inbox. Connect Multigateway with the WLAN network: Main menu WiFi Choose network Enter the selected e-mail address in the access list in the Multigateway when logging into the account: Main menu WiFi "Manage access" Log in to app with e-mail and password Enter the device address in the SOREL Connect App. The device address can be found in the device: Main menu WiFi WiFi status... -
Page 14: Notes
Notes... - Page 15 ...
- Page 16 Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de Version: 27.08.2024...
