Wall Mounted Protective Covers

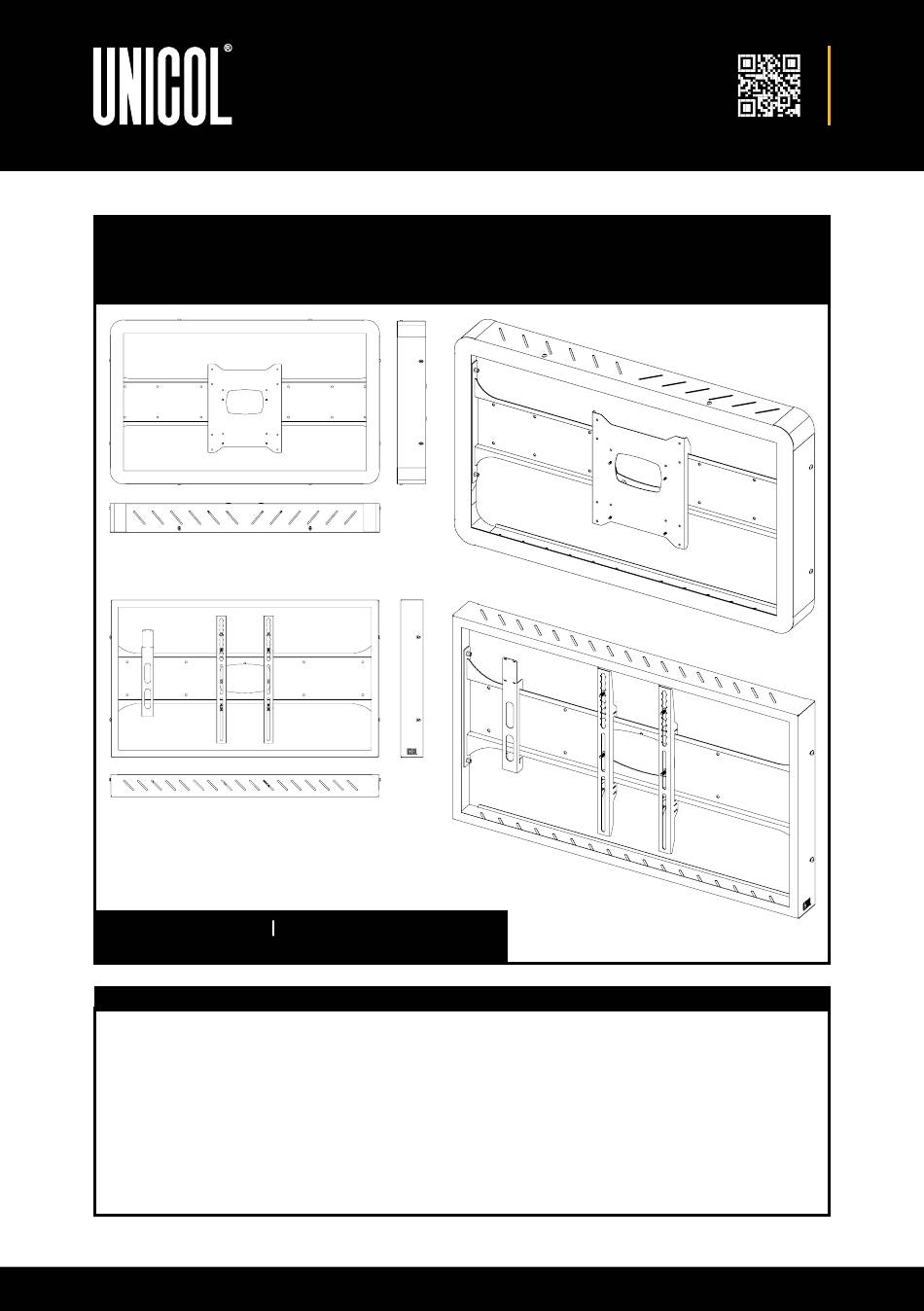

PCL / PCP 5, 7, 8, 9, 10, 11, 12, 13
Screen Size: 15-75"
Guide Max. Weight: 60kg
Revised 12/04/24
*Please check model specific details before installing*
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for pinch
points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any spring
loaded parts. Before installing, make sure that the supporting surface will support five times the combined
load of the solution and the hardware. Never exceed the maximum load capacity. Please also layout all
components to ensure that you have all of the required parts before proceeding (see BOM list on following
page). Use of this product for anything other than its specified use may result in failure or personal
injury. This product is intended for indoor use only. We recommend using a qualified trades person for
installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
Advertisement
Related Manuals for Unicol PCL 5
Summary of Contents for Unicol PCL 5
- Page 1 Use of this product for anything other than its specified use may result in failure or personal injury. This product is intended for indoor use only. We recommend using a qualified trades person for installation. Use an assistant or lifting equipment to lift and position products. For support, please call: +44 (0)1865 767676 or email: sales@unicol.com...
- Page 2 01865 767676 sales@unicol.com www.unicol.com TOOLS REQUIRED INSTALLERS REQUIRED 4mm & 5mm Allen Keys Pozi Head Screwdriver COMPONENTS DESCRIPTION Outer Protective Cover Anti-Shatter Screen Inner Screen Cover Wall Mount Dedicated Screen Mount/Arms (Style May Vary) Button Head Screw M8 X 20...
- Page 3 01865 767676 sales@unicol.com www.unicol.com STEP 2 STEP 1 Using the 8 - 12 wall mounting holes on the Using the fixing pack provided, attach the dedicated back plate, determine where you want to install screen mount bracket (or arms) to the back of your your mount, mark it and fix into position.
- Page 4 01865 767676 sales@unicol.com www.unicol.com STEP 5 STEP 6 Secure the inner cover by screwing into the two top Take the fully assembled cover and place it over the and bottom fixing points. This will keep both cover screen and wall mount. Ensure that the fixing holes halves and the anti-shatter screen securely together.
