Beyond 660B User Manual

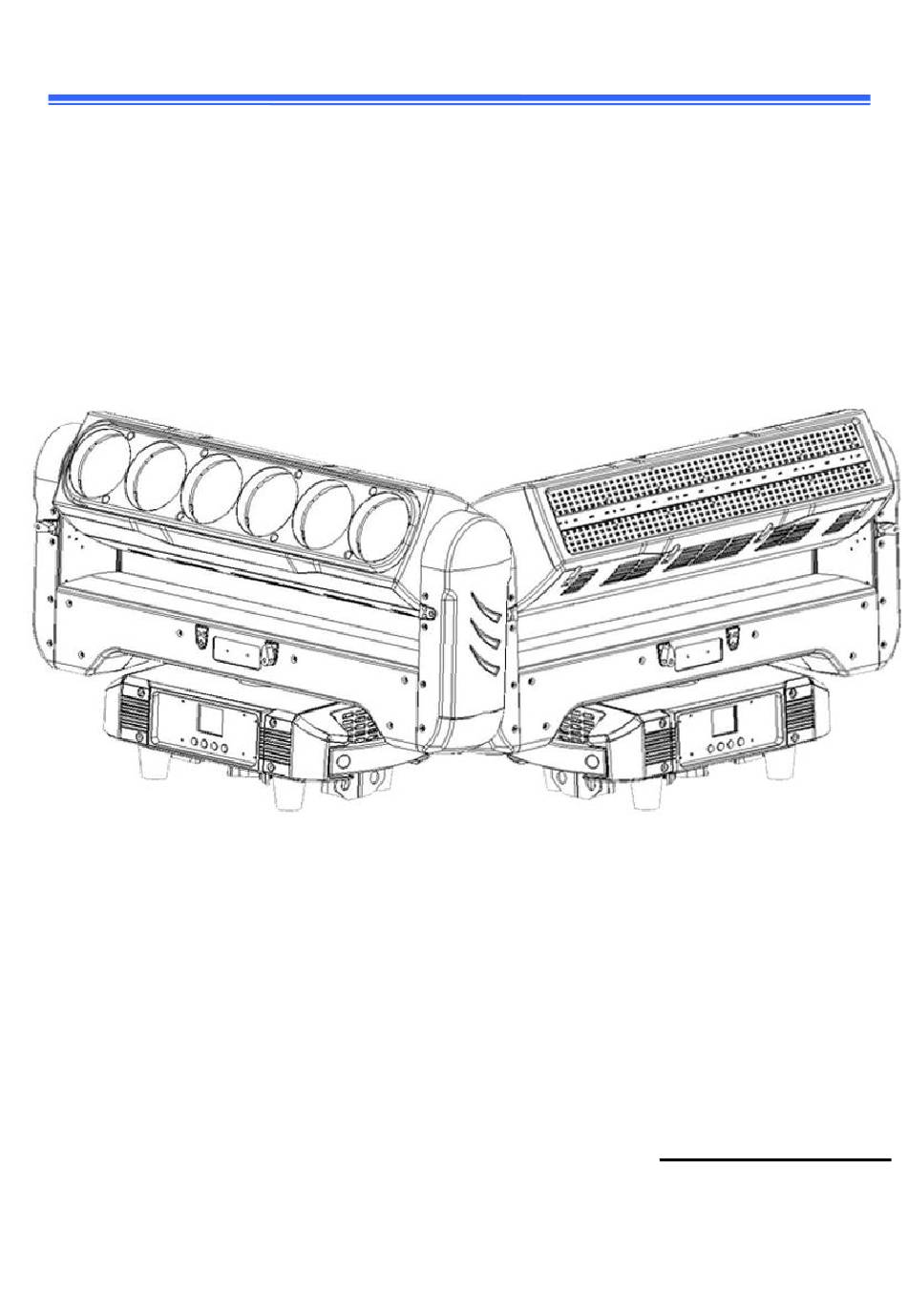

6*60w double face led pixel zoom and strobe bar moving head
Hide thumbs

Advertisement

Table of Contents

660B
6*60w double face Led pixel zoom and strobe
bar moving head
User manual
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 660B and is the answer not in the manual?

Questions and answers

Summary of Contents for Beyond 660B

  • Page 1 660B 6*60w double face Led pixel zoom and strobe bar moving head User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..................1 - 4 2. Technical Specifications...................5 3. How To Control The Unit..................7 4. DMX Channel List..................10-23 5. Shape.........................24 6.Trouble shooting....................25 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,...

  • Page 3: Safety Instructions

    1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
  • Page 4  DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning:  To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  DO NOT open the unit within five minutes after switching off. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Light Sources: Zoom wash face: 6*60W 4IN1 RGBW LED; Strobe face: 20*10W white led+384*0.5W 3in1 RGB Led Beam Angle:4.5°- 55° PMMA high quality and high output optic Power Consumption: 750w Power Voltage: AC 100-260V, 50/60Hz Control DMX Channel:34/54 Channels Control Protocol: DMX512/RDM Pan/Tilt Pan / Tilt : Infinite Rotation...
  • Page 6 Features Double face moving head with beam, wash, strobe effect Good to use for stage effect, background or stage shape Dimmer:0~100% smooth dimming Four dimmer model in optional( delay or without delay) Led single controlled Strong beam effects with high brightness Led temperature protection &...

  • Page 7: Display & Menu

    4. Display & Menu Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
  • Page 8 Reset Default Pass Word:up+down+up+down 0 - 255 Tilt 0 - 255 Focus 0 - 255 Adjust 0 - 255 Green 0 - 255 Blue 0 - 255 White 0 - 255 Setting from 001 - 512 Address 1.Yes 2.No 1.Yes Forward or Tilt 2.No...
  • Page 9 Pan:0--255 Tilt:0--255 Focus:0--255 Red1 ： 0--255 Master Green1: 0--255 Blue1: 0--255 White1: 0--255 Manual Manual control (“1” mean wash Strobe1 ： 0--255 zoom face; Red2 ： 0--255 “2” means strobe Greed2 ： 0--255 face) Blue2 ： 0-255 Alone White2:0--255 Strobe2:0-255 45 channels 45 channel mode Channel...

  • Page 10: Dmx Channel List

    5.DMX Channel List Model 1 - CH54 Channel Function Description Value CH-1 Pan adjustment 0 --- 255 CH-2 Pan fine Pan fine adjustment 0 --- 255 CH-3 Tilt Tilt adjustment 0 --- 255 CH-4 Tilt fine Tilt fine adjustment 0 --- 255 CH-5 Pan/Tilt speed from fast to slow...
  • Page 11 Random strobe 215--225 CH-9 Dimmer From dark to bright 0-255 Model - 1 0 --- 49 CH-10 Model - 2 50 --- 99 Dimmer mode Model - 3 100--- 149 Model - 4 150--- 255 CH-11 zoom Angle from big to small 0 --- 255 CH-12 Red - 1...
  • Page 12 CH-24 Red - 4 0 --- 255 CH-25 Green - 4 CH-26 Blue - 4 CH-27 White - 4 CH-28 Red - 5 0 --- 255 CH-29 Green - 5 From dark to bright CH-30 Blue - 5 CH-31 White - 5 CH-32 Red - 6 6x60W...
  • Page 13 R 100%,G up,B up 136----155 R100%,G down,B100% 156----175 R100%,G 176----195 100%,B100%,W100% 2800K 196----200 3200K 201----205 3500K 206----210 4000K 211----215 4500K 216----220 6x60W 5000K 221----225 wash CH-36 Static color face 5500K 226----230 6000K 231----235 6500K 236----240 7000K 241----245 7500K 246----250 8000K 251----255 No function 0 ----9...
  • Page 14 Effect Jump change 100--- 149 gradual change 150--- 255 Static Pattern -1 0 --- 9 Static Pattern -2 10 --- 19 Static Pattern -3 20 --- 29 Static Pattern -4 30 --- 39 Static Pattern -5 40 --- 49 Static Pattern -6 50 --- 59 Static Pattern -7 60 --- 69...
  • Page 15 Dynamic Pattern -2 170--- 179 Dynamic Pattern -3 180--- 189 CH-38 Dynamic Pattern -4 190--- 199 Dynamic Pattern -5 200--- 209 Patterns Dynamic Pattern -6 210--- 219 Dynamic Pattern-7 220--- 229 6x60w Dynamic Pattern -8 230--- 255 wash face CH-39 Pattern change speed 0 --- 255 CH-40...
  • Page 16 CH-48 Dimming of two side red led from dark to 0--255 bright CH-49 Dimming of two side green led from dark to 0--255 bright CH-50 Dimming of two side blue led from dark to 0--255 bright No function 0--9 Dynamic pattern 1 10--19 Dynamic Dynamic pattern 2...
  • Page 17 Model 2 - CH34 Channel Function Description Value CH-1 Pan adjustment 0 --- 255 CH-2 Pan fine Pan adjustment 0 --- 255 CH-3 Tilt Tilt adjustment 0 --- 255 CH-4 Tilt fine Tilt adjustment 0 --- 255 CH-5 Pan/Tilt speed from fast to slow 0 --- 255 No function...
  • Page 18 CH-7 Tilt infinite rotation Anticlockwise rotating 156---255 from slow to fast No function 0 --- 15 CH-8 6*60w Strobe from slow to fast 16 --- 214 wash Random strobe 215---255 face CH-9 Dimmer From dark to bright 0 --- 255 Model - 1 0 --- 49 Model - 2...
  • Page 19 No function 0----15 R 100%,G up,B0% 16----35 R down,G 100%,B0% 36----55 R 0%,G 100%,B up 56----75 R 0%,G100%,B up 76----95 R up,G0%,B100% 96----115 6*60w Static R 100%,G0%,B down 116----135 wash color R 100%,G up,B up 136----155 face CH-16 R100%,G down,B100% 156----175 R100%,G 176----195...
  • Page 20 4500K 216----220 5000K 221----225 CH-16 6*60w Static 5500K 226----230 wash color 6000K 231----235 face 6500K 236----240 7000K 241----245 7500K 246----250 8000K 251----255 No function 0 ---- 9 Effects 3 DMX value per effect 10 --- 99 CH-17 Jump change 100 --- 149 gradual change 150 --- 255 Pattern -1...
  • Page 21 Pattern -3 30 --- 39 Pattern -4 40 --- 49 Pattern -5 50 --- 59 Pattern -6 60 --- 69 CH-18 6*60w Pattern Pattern -7 70 --- 79 wash Pattern-8 80 --- 89 face Pattern -9 90 --- 99 Pattern -10 100 --- 109 Pattern -11 110 --- 119...
  • Page 22 CH-23 Pattern with Blue from dark to bright 0 --- 255 6*60w CH-24 Pattern with White from dark to bright 0 --- 255 face CH-25 Dimmer 0-100% linear dimmer 0--255 Led on 0--3 Synchronously strobe 4--203 CH-26 Strobe from slow to fast Random strobe 204--255 CH-27...
  • Page 23 10 DMX value per pattern ..Dynamic pattern 15 150--159 Dynamic pattern 16 160--255 Strobe CH-32 Pattern Select pattern scene 0--255 face translatio (work with CH31) No function 0--9 Pattern auto run Forward run from fast to 10--132 CH-33 speed(w slow ork with Reverse fun from slow to...

  • Page 24: Shape

    6. Shape...

  • Page 25: Trouble Shooting

    7. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
