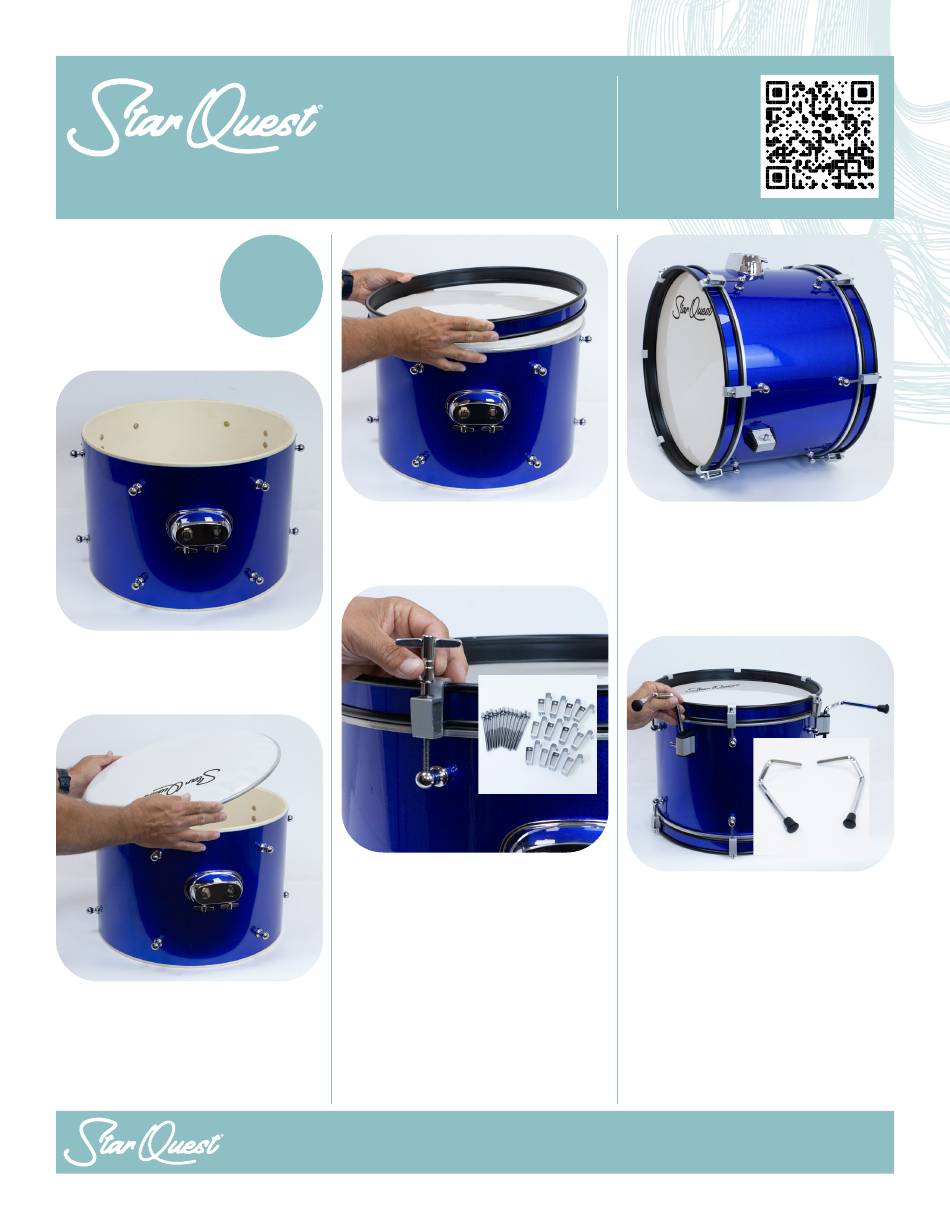

StarQuest SQ-DS-JR3 Step-By-Step Manual

Bass Drum
1. Set-up
Lay the bass drum flat on a flat surface,
with the cymbal and tom mounting plate
facing up (wingnuts should face down).
2. Drumhead placement
Take the bass drum head with the
StarQuest® logo and place it onto the
drum shell. The StarQuest® logo should be
centered with the cymbal/tom mounting
plate.
STEP BY STEP GUIDE
3 PIECE DRUM
KIT SET-UP
SQ-DS-JR3
1
3. Hoop placement
Place one of the included bass drum
hoops over the top of the skin so that it
rests flush on the hoop of the drumhead.
4. Assembly of tension rods &
claws
Insert 6 tension rods through 6 drum claws
and insert into the threaded drum lugs on
the drum shell using the included drum
key. Tension the 6 rods evenly until any
wrinkles are removed from the drumhead
and a tone can be heard when tapping
the drumhead.
Full access
to product
information
and videos
Including a step by
step video of these
instructions.
5. Assembled heads, hoops,
claws, rods
Turn the bass drum over and repeat for
the other side, inserting the remaining
6 tension rods into the 6 claws and
tensioning until both drumheads are
affixed to the drum.
6. Installation of bass drum
spurs
Insert the two bass drum spurs (legs) into
the receiving backets on the bottom side
of the bass drum and match the same
angle / positioning on both sides so that
the bass drum sits evenly when upright.
These spurs are located on the front side
of the bass drum.
