Summary of Contents for Mac Afric SROUTR-001

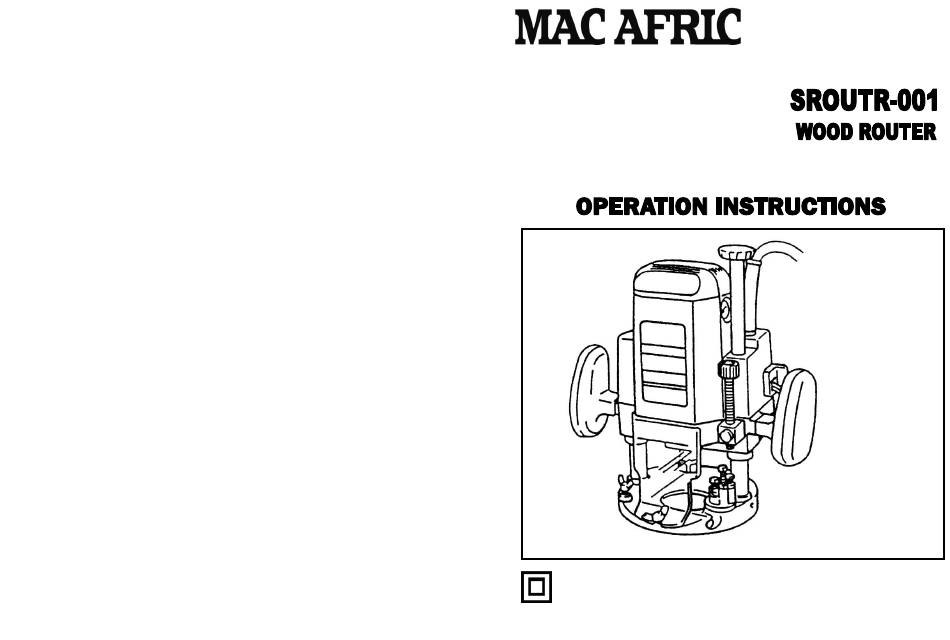

- Page 1 www.adendorff.co.za Read through carefully and understand these instructions before use.
-
Page 2: Electrical Safety
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric GENERAL POWER TOOL SAFETY WARNINGS shock. 9. If operating a power in a damp location is unavoidable, use a residual current (For All Power Tools) device (RCD) protected supply. -
Page 3: Specifications
The correct power tool will do the job better and safer at the rate for which it was SPECIFICATIONS designed. 18. Do not use tool if switch does not turn it on or off. Any power tool that Rated Power Input 1850 W cannot be controlled with the switch is dangerous and must be repaired. -
Page 4: Instructions For Operation
13. Do not touch the bit immediately after operation; it may be extremely hot and When using router bits with smaller shank diameter, first insert the appropriate collet could burn your skin. sleeve into the collet cone, and then install the bit as described above. 14. -
Page 5: Operation
Switch can be locked in “ON” position for ease of operator comfort during extended CAUTION: Since excessive cutting may cause overload of the motor or difficulty in use. Apply caution when locking tool in “ON” position and maintain firm grasp on controlling the tool, the depth of cut should not be more than 15 mm (5/8”) at a tool. - Page 6 Install the straight guide on the guide holder with the wing bolt (B). Insert the guide holder into the holes in the tool base and tighten the wing bolt (A). To adjust the distance between the bit and the straight guide, loosen the wing bolt (B) and turn the fine adjusting screw (1.5 mm or about 1/16”...
-
Page 7: Maintenance And Inspection
Secure the templet to the workpiece. Place the tool on the templet and move the tool with the templet guide sliding along the side of the templet. (Fig. 16) NOTE: The workpiece will be cut a slightly different size from the templet. Allow for the distance (X) between the bit and the outside of the templet guide (Fig. - Page 8 Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. NOTE: When replacing carbon brush located on the same side as the knob, remove the knob first before unscrewing the brush holder cap.
- Page 9 EXPLANATION OF GENERAL VIEW EXPLANATION OF GENERAL VIEW Pan Head Tapping Screw Circlip for Hole 12 Guide (Right) Guide Roller ST5×20 Rear Cover Lock Nut Guide (Left) Trimmer Guide Plate Torsion Spring （16.4×1.2× Pan Head Tapping Screw Stretch Pin 5×32 Wing Bolt M5×10 ST4.2×19 4.8）...
