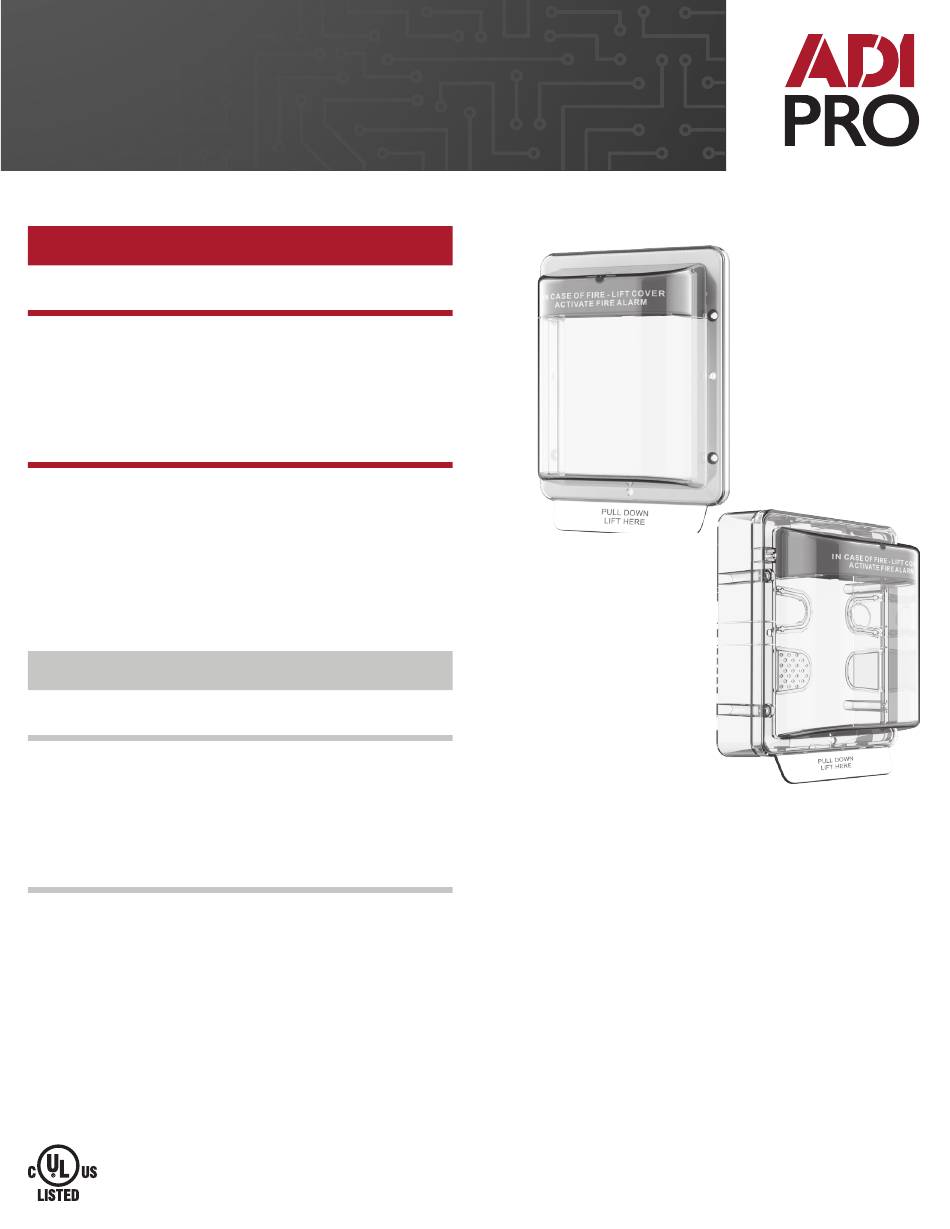

FIRE PULL STATION COVER
INSTALLATION INSTRUCTIONS
ENGLISH
USER MANUAL
0E-PSCFM
0E-PSC2S
0E-PSCHORNFM
0E-PSCHORN2S

TABLE OF CONTENTS

Safety Information........................................2
Introduction..............................................3
Installation..................................................5
Use and Care.................................................7
Warranty......................................................9
Product Dimensions...................................11
