Smart Lock
EMW8315G-HK
Thank you for choosing a Panasonic product. Please read the instruction manual carefully before
use and keep it for future reference.
■
Please complete the warranty registration section and return it to Shun Hing Electric Service
Center Ltd., and ensure you retain your warranty record card.
■
The Company reserves the right to interpret any printing errors or misunderstandings in the
content of this manual.
■The images in this manual are for illustrative purposes only; please refer to the actual product.
■Should there be any technical improvements, they will be included in the new version of the
manual without prior notice; the appearance and color of the product are subject to change, and
the actual product will prevail.
6-in-1 Unlocking Modes
(Face, Fingerprint, Card,
Password, Mechanical Key and Wireless Unlock)
Dummy Password Function
Semiconductor Fingerprint Module
3D Facial Recognition
Cat Eye Camera
User Manual
Advertisement
Table of Contents
Related Manuals for Panasonic EMW8315G-HK
Summary of Contents for Panasonic EMW8315G-HK

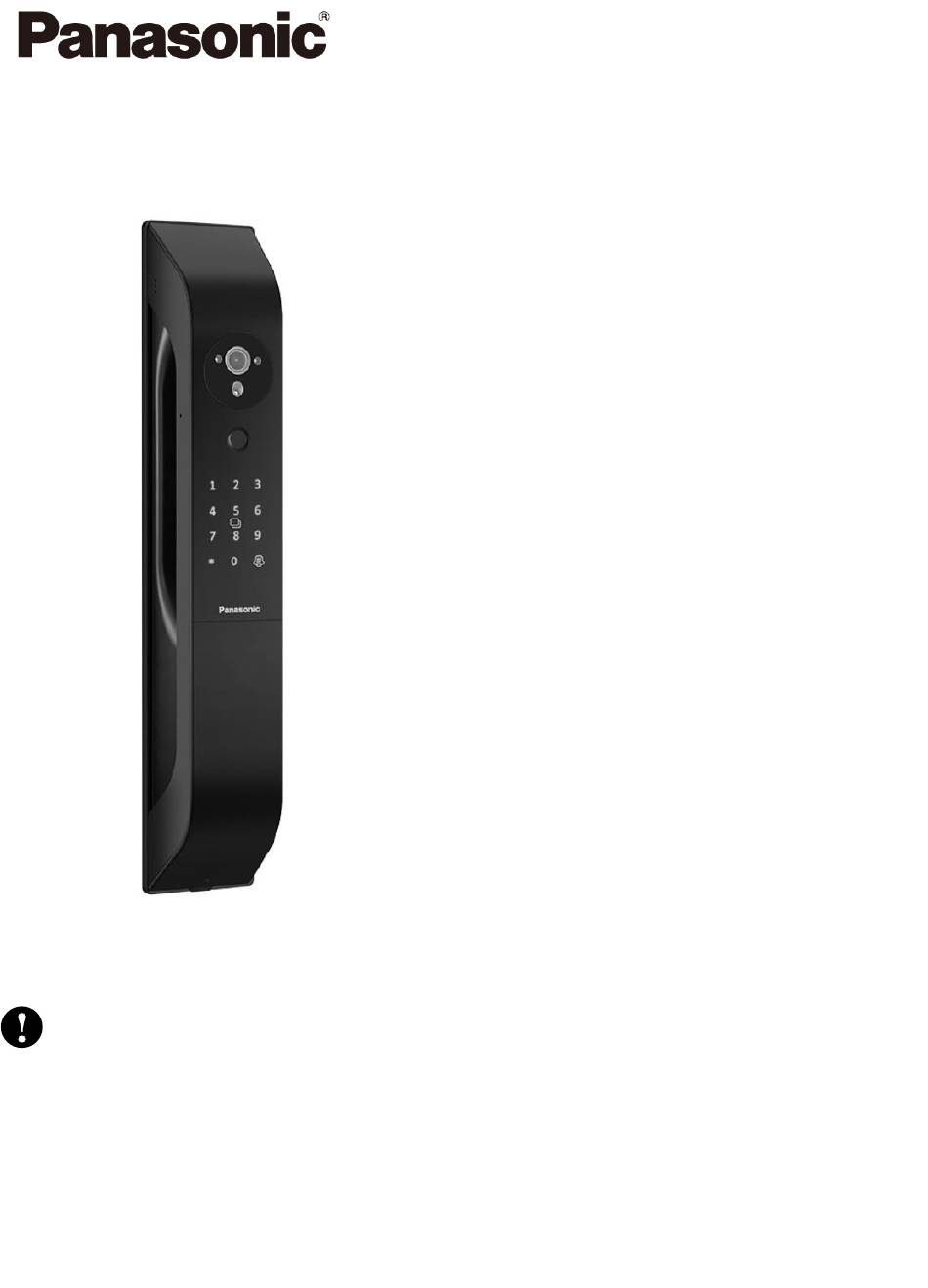

- Page 1 3D Facial Recognition Cat Eye Camera EMW8315G-HK Thank you for choosing a Panasonic product. Please read the instruction manual carefully before use and keep it for future reference. ■ Please complete the warranty registration section and return it to Shun Hing Electric Service Center Ltd., and ensure you retain your warranty record card.
-
Page 2: Safety Precautions
Safety Precautions Safety Precautions (Please read and comply with the safety guidelines thoroughly) Before using the smart lock, ensure you have read and understood all instructions. Failure to follow these instructions may result in damage not covered under warranty. Adhere to the warnings and cautions outlined below to prevent injury or property damage to users or others. Warning Do not install, dismantle, repair, modify, or alter the product yourself, nor use non-original parts from manufacturers for repairs, as it may pose hazards and void the warranty. - Page 3 Safety Precautions Cautions • Manage your passwords carefully and change them regularly for security; always ensure the door is fully locked when leaving home. The Company is not responsible for incidents due to user negligence. • Store mechanical keys securely for emergency use. •...
-
Page 4: Table Of Contents
Table of Contents Product Overview---------------------------------------------------------------------------- 01 1. Illustrated Guide to the Product------------------------------------------------- 2. General Operating Principles------------------------------------------------------ II. Functions and Operations-------------------------------------------------------------- 1.Factory Settings--------------------------------------------------------------------------- 2.Introduction on Operation---------------------------------------------------------- 3.Initial State: First Access to Administrator Options------------------- 4.Accessing Administrator Options----------------------------------------------- 5.Adding Users-------------------------------------------------------------------------------- 03 6.Deleting Users------------------------------------------------------------------------------ 05 7.System Settings--------------------------------------------------------------------------- 8.Battery Replacement------------------------------------------------------------------- 9.Emergency Power Supply------------------------------------------------------------... -
Page 5: Product Overview
I. Product Overview 1.EMW8315G-HK Illustrated Guide to the Product Rear Decorative Cover Cat Eye Camera Face Recognition Fingerprint Recognition Area Display Area Card Swipe Touchscreen Keys Area Display Wake Indoor Indoor Locking Unlocking Doorbell Emergency Unlock Mechanical Key Slot Knob... -
Page 6: Functions And Operations
II. Functions and Operations 1.Factory Settings Upon initial setup, the door lock is configured with a default password: "123456#". When this password is entered to unlock the door, an audio prompt will confirm the Factory Settings. 2.Introduction on Operation "#" - A function key to confirm; "*" - A function key to clear or return upon short press System emits a "double beep"... -
Page 7: Adding Users
II. Functions and Operations 5.Adding Users 5.1 Administrator Access the administrator options 1. Add user 2. Delete user 3. System settings 4. Networking settings Input 1 1. Add Face 2. Add fingerprint 3. Add password 4. Add card Input 2 Input 3 （... - Page 8 II. Functions and Operations 5.2 Normal User Access the administrator options 1. Add user 2. Delete user 3. System settings 4. Networking settings Input 1 1. Add Face 2. Add fingerprint 3. Add password 4. Add card Input 1 Input 2 Input 3 Input 4 （...
-
Page 9: Deleting Users
II. Functions and Operations 6.Deleting Users Access the administrator options. Access the administrator options 1. Add user 2. Delete user 3. System settings 4. Networking settings Input 2 1. Delete Face 2. Delete fingerprint 3. Delete password 4. Delete card Input 1 Input 2 Input 3... -
Page 10: System Settings
II. Functions and Operations 7 System Settings 7.1 System Settings (Unlock Mode, Volume Control) Access the administrator options 1. Add user 2. Delete user 3. System settings 4. Networking settings Input 3 1. Unlock mode 2. Set time 3. Inquire the record 4. - Page 11 II. Functions and Operations 7.2 System Settings (Set Time, Inquire the Record, Reset the Settings) Access the administrator options 1. Add user 2. Delete user 3. System settings 4. Networking settings Input 3 1. Unlock mode 2. Set time 3. Inquire the record 4.
-
Page 12: Battery Replacement
II. Functions and Operations 8. Battery Replacement When the dry battery is low on power, the voice prompt will be given as "Low battery, please renew." Promptly replace the battery to ensure continued functionality. Note: Always use the original alkaline batteries purchased from the official channel. Remove the battery cover with force or the assistance of an... -
Page 13: Removing And Installing Lithium Battery
II. Functions and Operations 10. Removing and Installing Lithium Battery To install the lithium battery, open the battery cover, insert the battery until the safety button pops up, and the installation is complete. To remove the lithium battery, open the battery cover, press the safety button, and withdraw the battery. Then the removal is complete. -
Page 14: Downloading Apps And Network Connection
III. Downloading Apps and Network Connection 1.APP Downloading and Installing Download the Shun Hing Group APP: Scan the QR code below, or visit Google Play/Apple's "App Store" to download and install. 2.APP Operation 1)Account Registration ① Upon first opening the App, a user notice will appear. Click "Agree" to proceed; ②... - Page 15 III. Downloading Apps and Network Connection ④ Enter the Set Password interface, configure your password (which should be a combination of numbers and letters, 6 to 20 characters long), and click "Finish" to complete the registration and proceed to the next step. ④...
- Page 16 III. Downloading Apps and Network Connection ①Click on "Add Device" or the "+" icon at the top right to access the "Add Device" page; ②During the auto-discovery process, certain permissions will be required. Once all permissions are granted, the system will automatically search for nearby devices. Upon discovering a device, click "Add."；...
- Page 17 III. Downloading Apps and Network Connection Network Configuration instructions: The WiFi configuration mode has one-minute limit; if exceeded, it will automatically exit. If WiFi configuration fails, please check the following: ①Ensure the WiFi password is correct and that the network name does not contain special characters.
- Page 18 III. Downloading Apps and Network Connection 6)User Unlock Records On the main page of the App, select your device and tap "Album/Logs". In the album, choose a date to view all event records. In the "Logs", check alarm messages and door opening records.
- Page 19 III. Downloading Apps and Network Connection 11)Hijack User Alarm Setting ①Enter Member Management, select the member to add hijack information, and click "Add Password"; ②Enter the desired unlocking information, with the "Hijack Password" shown in the image below as the example; ③Turn on the switch next to "Hijack Password"...
-
Page 20: Technical Parameters
IV. Technical Parameters Type Description Front Panel Dimensions 438mm×80mm×61mm (HxWxD) Rear Panel Dimensions 438mm×80mm×61mm (HxWxD) Aluminum Alloy External Materials 304 Stainless Steel Latch Materials Touch Keys Dry Battery 4 *AA batteries Lithium Battery 5,000mAh Lithium Battery Emergency Power Emergency Power Supply USB Type-c Card Mifare one Card Unlock Modes... -
Page 21: Frequently Asked Questions
V. Frequently Asked Questions Questions Possible Causes Solutions Wait 90 seconds before Information as “System 5 consecutive incorrect retrying with the correct Locked” unlock attempts unlock information. The system emits two Re-enter the correct Incorrect password beeps. password. “Low battery, please Replace the battery renew”... -
Page 22: Product List
VI. Product List Front Panel *1 Rear Panel *1 Lock Body *1 Card*4 Screw Pack *1 Door Frame Bracket*1 Installation Instructions and AA Battery*4 User Manual*1 Templates*1 Lock Head*1 Lithium Battery*1 Key*2 These pictures are for reference purpose only. The actual product shall prevail. -
Page 23: After-Sales Service
VIII. After-sales Service Within the warranty period, if the service personnel at Shun Hing Electric Service Centre Ltd. confirm that the product failure occurred under normal usage conditions, the Company will provide free repairs and replacement of parts. Any defective parts replaced will become the Company’s property. - Page 24 信興電工工程有限公司 辦公室：香港九龍尖沙咀東部麼地道67號半島中心9樓 電話：2861 2767 傳真：2865 6706 網址：http://www.shew.com.hk 電郵：shew@shunhinggroup.com SHUN HING ELECTRIC WORKS AND ENGINEERING CO., L TD. Office : 9/F., Peninsula Centre, 67 Mody Road, Tsimshatsui East, Kowloon, H.K. Tel：2861 2767 Fax：2865 6706 Website：http://www.shew.com.hk E-mail ：shew@shunhinggroup.com 保養及維修 Maintenance and Repair Service: 信興電器服務中心有限公司...
