Summary of Contents for NOSHOK KING-GAGE 4650-1

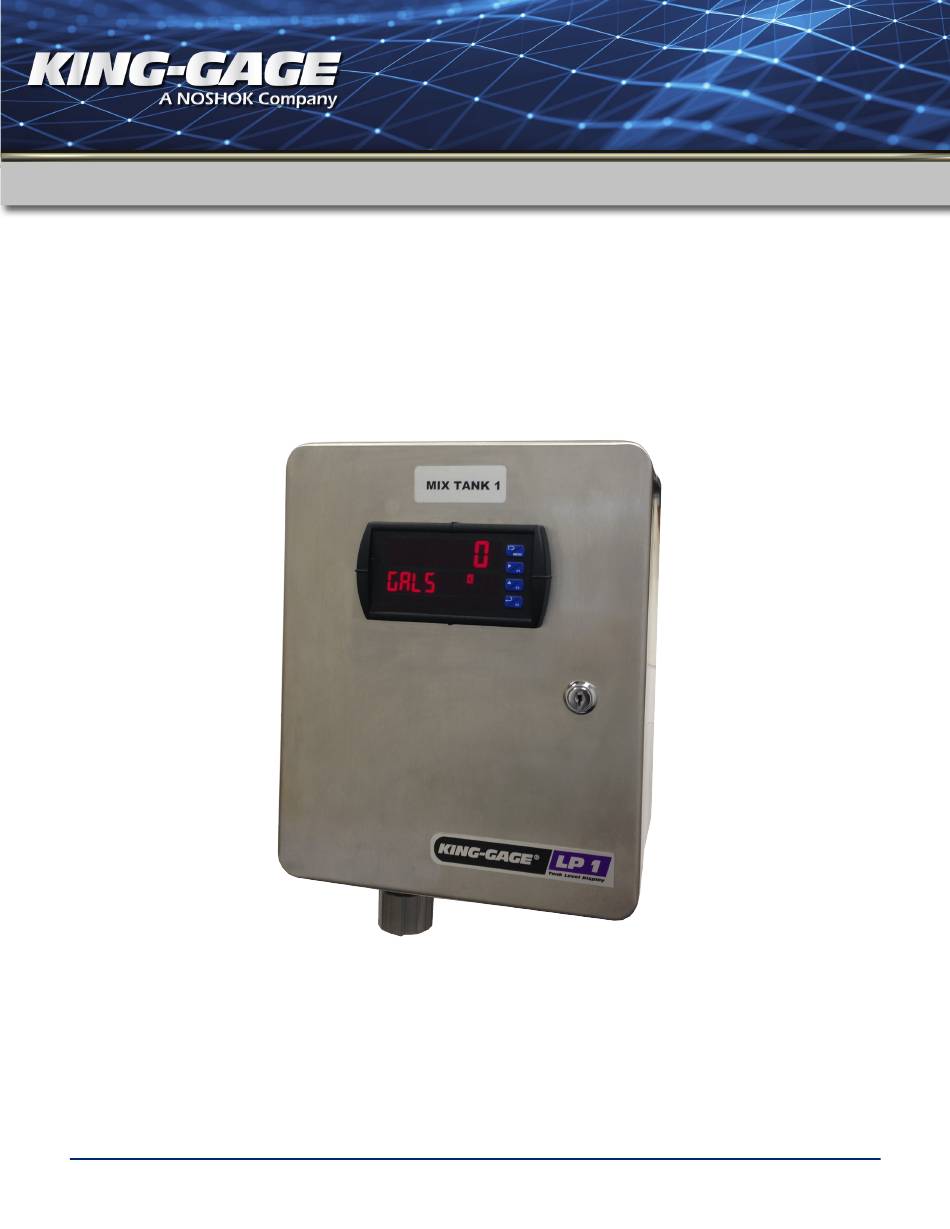

- Page 1 LP1 Digital Tank Level Display Models 4650-1 (with Analog Output) • 4650-2 (with Relay Outputs) Effective: July 2016 EX-1860-R Installation and Operations Manual Multiple Tank Level Display KING-GAGE, A NOSHOK Company I 1010 West Bagley Road, Berea, Ohio 44017 I Ph: 855-367-2494 I www.king-gage.com...
-
Page 2: Limited Warranty
KING-GAGE LP1 Tank Level Display EX-1860-R The information contained in this manual was accurate at the time of release. Specifications are subject to change without notice. ATC King Engineering Division. All rights reserved. Limited Warranty ATC King Engineering Division products are warranted to the first direct purchaser its products against defective material and workmanship for a period of one (1) year from the date of purchase. The Company will either;... - Page 3 KING-GAGE LP1 Tank Level Display EX-1860-R 6.0 in 6.87 in 152 mm 174 mm 60000 GALS 11.75 in 298 mm 13.78 in 350 mm 9.0 in 229 mm Specifications KING ENGINEERING Berea, Ohio U.S.A. ® Input Signal LP1 DISPLAY Model 4650-1 4–20 milliamperes (mAdc) Input current limiting;...
- Page 4 KING-GAGE LP1 Tank Level Display EX-1860-R 60000 GALS LP1 front panel (dual line LED alphanumeric display) P OWER F4 COM V+ mA+ P+ P- F4 LP1 display module (rear view inside enclosure) page 4...
-
Page 5: Power And Signal Connections
KING-GAGE LP1 Tank Level Display EX-1860-R LP1 Model 4650-1 w/ Isolated Analog Output Power and Signal Connections − signal (common) + signal (mAdc) Maintain clearance below enclosure for access to lower entry ports 85-265 Vac (line) ground neutral Vac Power Connections Power connections for the LP1 are provided on the terminal rail within the enclosure. - Page 6 KING-GAGE LP1 Tank Level Display EX-1860-R LP1 Model 4650-2 w/ Relay Outputs (SPDT) Power and Relay Output Connections − signal (common) + signal (mAdc) Maintain clearance below enclosure for access to lower entry ports 85-265 Vac (line) ground neutral Vac Power Connections Power connections for the LP1 are provided on the terminal rail within the enclo- sure.
- Page 7 KING-GAGE LP1 Tank Level Display EX-1860-R Signal Input Connections (Two Wire Transmitters) Ð Signal Input Connection (Vdc Output) The LP1 digital indicator is designed to supply the necessary excitation to power a typical 2-wire level transmitter. 4-20 mA Ð +24V Signal Input Connections (KING-GAGE ES2 Transmitter) Transmitter A molded M12 connector and cable is supplied with the...
- Page 8 KING-GAGE LP1 Tank Level Display EX-1860-R Using LP1 with external Vdc signal loop P OWER F4 COM V+ mA+ P+ P- F4 F4 COM V+ mA+ Remove jumper – wire +Vdc External Power Source (PLC or other receiver) – Transmitter Vdc Power Bypass The normal (default) setting for the LP1 digital indi- cator provides 24 Vdc power across the signal input...
-
Page 9: Troubleshooting Checklist
KING-GAGE LP1 Tank Level Display EX-1860-R Fused Input Terminal (AC Power) GDC-6.3A fuse The input block connector is equipped with a fuse element to protect the (part no. 7469-4-6.3) indicator from power surges. Lift up on the bottom edge of the block to open - this may also be used to disconnect the power to the indicator. - Page 10 KING-GAGE LP1 Tank Level Display EX-1860-R Modbus Communication (Option Module) The LP1 can provide data output based on Modbus RTU serial communica- tions protocol. For implementation of Modbus, the LP1 must be provided with the Serial Adapter Module (5946) which provides a full or half-duplex RA485 signals.
