Summary of Contents for LeP OSD23

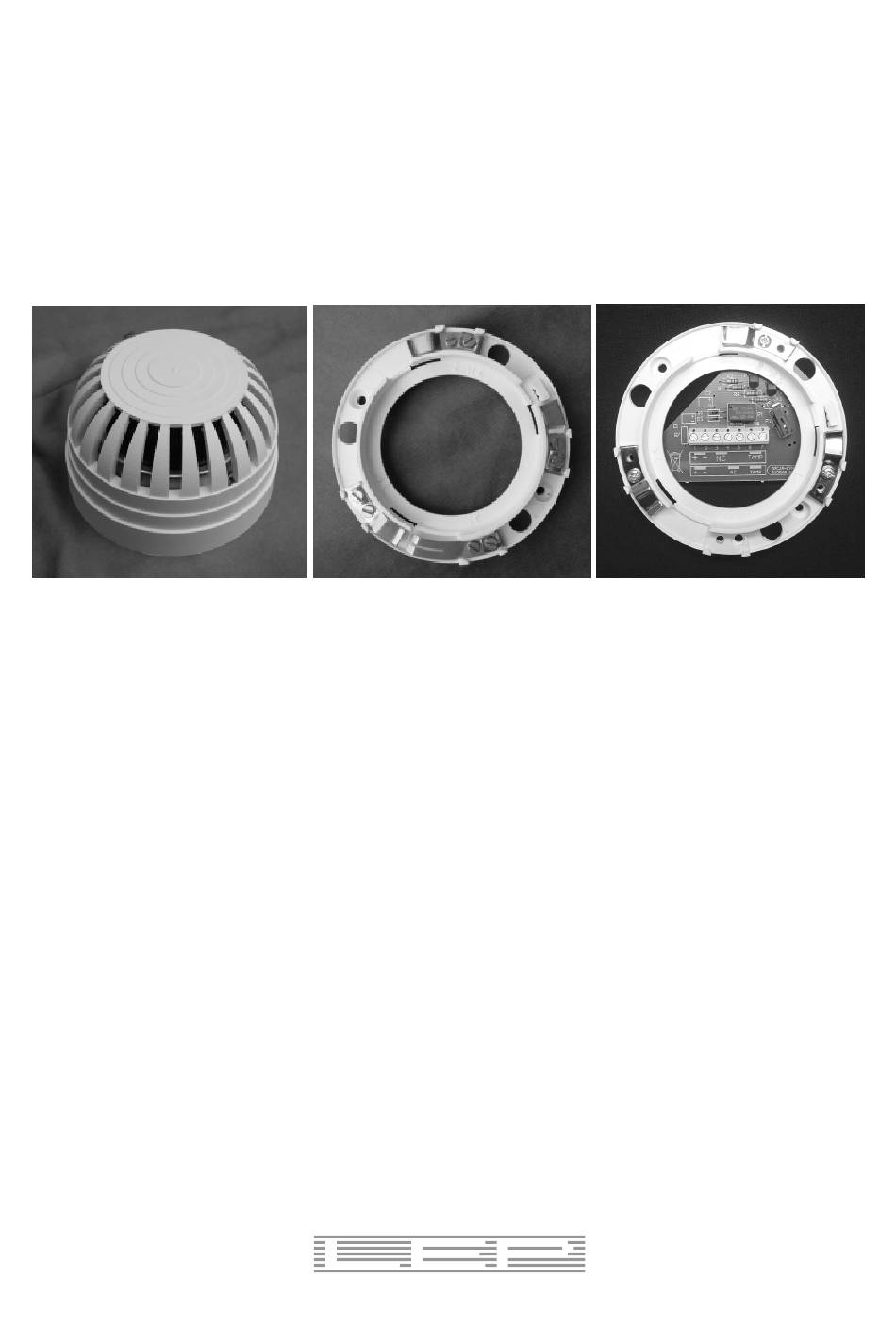

- Page 1 OPTICAL SMOKE DETECTOR OSD23 IOT - Instruction Manual – Technical Information 20/08/2016 10:41:00 www.lep.pl biuro@lep.pl 32-300 Olkusz, ul. Wspólna 9, tel/fax (32) 754 54 54, 754 54 55...
-
Page 2: Intended Application
The GNA42 socket is used to fix and address the detectors in the supervised line of the addressable AFS42 central unit. LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl... -
Page 3: Maintenance
Maintenance and inspections can be performed only by entities authorised for such activities. Prior to screwing of the OSD23 detector into the socket, it is necessary to check the safety lock protecting against accidental screw-out of the detector from the socket. -
Page 4: Technical Information
The sensitivity of each OSD23 detector is set in the smoke chamber. The detector undergoes vibration, hot and cold type tests. The total time of the test cycle is 7 days. The electronic system of the detector ensures proper functioning of the measurement and logical system within the broad range of voltages in the supervised line (from 12 V to 28 V), without any changes in the measurement parameters. -
Page 5: Technical Data
Electric strength of the relay contacts. 1000mA przy 24V -25°C ÷ +55°C Working temperature range. Dimensions (height/diameter). 102mm / 21mm Weight Installation opening distribution 90mm LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl... - Page 6 Aktualizacja: 2016-08-20 10:41:00 Strona 6 z 9 Sockets Body Plate screen Electronic module Pyramid Deep screen Labyrinth Optical fibre Basket Fig. 1 CONSTRUCTION OF OSD23 LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl...
- Page 7 Aktualizacja: 2016-08-20 10:41:00 Strona 7 z 9 2,7k 3’ GNP18 Detector clasp locks 3’ GNP18 Fig. 2 GNP18 clamps: - Power supply line. +Power supply line. external trigger indicator LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl...
- Page 8 - In case of power supply in the alarm state - contacts 3 and 4 closed. Clamps (6,7): TAMP - insulated sabotage breaker contacts - closed with installed detector. LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl...
- Page 9 Supervision voltage. Fig. 4 Detector alarm current diagram. 3- LINE PLUS 2 - EXTERNAL INDICATOR Fig. 5 Detector external dimensions. LEP - ul. Wspólna 9, 32-300 Olkusz, tel/fax (32) 754 54 54, 754 54 55 biuro@lep.pl, www.lep.pl...
