Wall-Recessed Electric Fireplace
HEF5000050
HEF5000072
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before setting up and operating this unit.
This manual is designed to provide you with important information needed to setup, operate,
and maintain your wall-recessed electric fireplace heater.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
Due to continuous research and development the specifications herein are subject to change
.
without notice
BONAIRE LINEAR 50" ELECTRIC FIREPLACE
BONAIRE LINEAR 72" ELECTRIC FIREPLACE
Advertisement
Table of Contents
Summary of Contents for BONAIRE HEF5000050

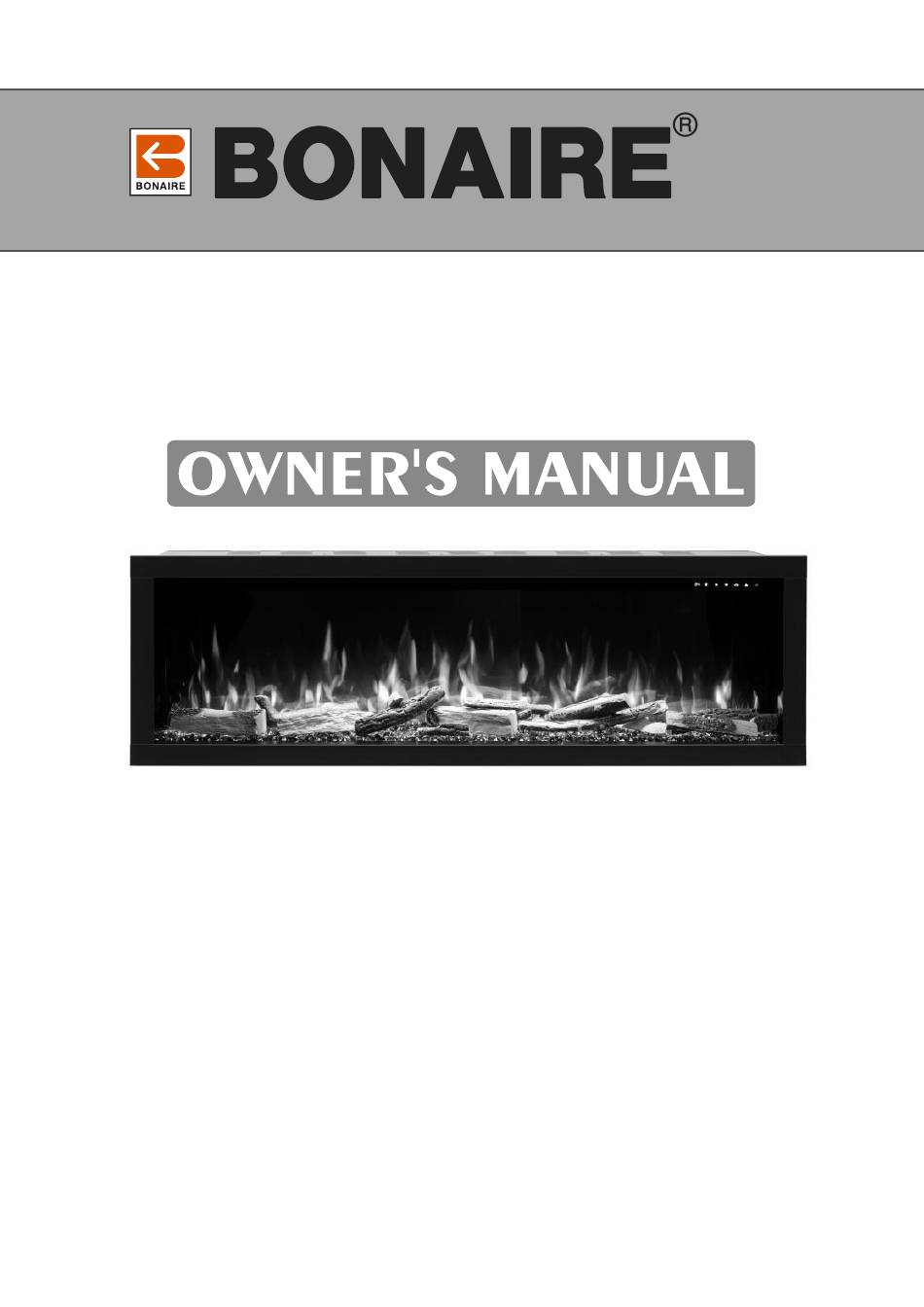

- Page 1 Wall-Recessed Electric Fireplace HEF5000050 BONAIRE LINEAR 50” ELECTRIC FIREPLACE HEF5000072 BONAIRE LINEAR 72” ELECTRIC FIREPLACE READ AND SAVE THESE INSTRUCTIONS Read all instructions carefully before setting up and operating this unit. This manual is designed to provide you with important information needed to setup, operate, and maintain your wall-recessed electric fireplace heater.
- Page 2 Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury. SAVE THESE INSTRUCTIONS! CAUTION! Keep this owner’s manual for future reference. If you sell or give this product away, make sure this manual accompanies this product.
-
Page 3: Important Safety Information
Bonaire Recessed Electric Fireplace IMPORTANT SAFETY INFORMATION WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this heater. -
Page 4: Parts And Hardware
Bonaire Recessed Electric Fireplace CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut- ⚫ out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. -
Page 5: Product Dimensions （Mm
Bonaire Recessed Electric Fireplace SPECIFICATION AND DIMENSIONS PRODUCT DIMENSIONS （mm） Model Number 50" 18-7/8" 9-7/8" 15" 46" 48-5/8" 18" 9-3/8" HEF5000050 [1270mm] [480mm] [250mm] [380mm] [1235m] [458mm] [238mm] [1170mm] 72" 18-7/8" 9-7/8" 15" 61-1/8" 70-5/8" 18" 9-3/8" HEF5000072 [1830mm] [480mm]... -
Page 6: Installation And Assembly
Bonaire Recessed Electric Fireplace INSTALLATION AND ASSEMBLY This appliance is designed to be recess mounted or slide-in mounted (slid into an existing fireplace). It can also be hardwired or plugged into a receptacle (power cord supplied). Select a suitable location that is not susceptible to moisture and is away from drapes, furniture, and high traffic areas. -
Page 7: Finishing Material
Bonaire Recessed Electric Fireplace Finishing Material Framing Hole Size Model Number HEF5000050 18-1/4" [464mm] 10" [254mm] 48-13/16" [1240mm] 18-1/4" [464mm] 10" [254mm] 70-7/8" [1800mm] HEF5000072... - Page 8 Bonaire Recessed Electric Fireplace FRONT TRIM REMOVAL A. Take off the screws on both sides. (Fig. 1-1 ) B. Carefully lift the front trim up and away from the appliance (Fig. 1-2). Place it face down on a soft, non-abrasive surface.
- Page 9 Bonaire Recessed Electric Fireplace Fig. 2-4 With one hand on the front glass to prevent it from falling, remove the screws from the top of the glass. Set the screws aside. (Fig. 2-3) Carefully lift the front glass up and away from the appliance. Place it face down on a soft, non- abrasive surface.
- Page 10 Bonaire Recessed Electric Fireplace SMOKED CRUSHED GLASS & DRIFTWOOD LOGS INSTALLATION • Glass front must be removed, and the appliance must be mounted in its final location before the driftwood logs and crystals are installed. • Place the driftwood logs (D) on the surface of the ember bed and add the smoked crushed glass (E) around the driftwood logs.
-
Page 11: Method Of Operation
Bonaire Recessed Electric Fireplace OPERATION Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Method of Operation This electric fireplace can be operated by the CONTROL PANEL, located on the UPPER right corner of the fireplace or by the battery-powered REMOTE CONTROL. -
Page 12: Remote Control Operation
Bonaire Recessed Electric Fireplace HEATER button: Turns heater on and off. Turns the heater and blower on/off. NOTE: The heater only works when the flame is on. Settings: If the flame is off, the heater will not turn on. H0 - Heater and blower off... - Page 13 Bonaire Recessed Electric Fireplace Fire cracker sound button:Controls the Press once. Fire cracking sound getting cracking sound of the flame. There are 3 change. settings: LOW, HIGH, OFF. Press again until desired setting is reached. NOTE: Press & Hold for 5 Seconds, will switch to down-light function.
- Page 14 Bonaire Recessed Electric Fireplace EMBER BED button: Turns on media bed Press once: Turns on ember bed. and changes color. Press again until desired color is reached.in total 15 colors. EMBER- BED EMBER BED brightness button: Makes Press once: Brightness becomes active.
-
Page 15: Temperature Limiting Control
Bonaire Recessed Electric Fireplace TEMPERATURE LIMITING CONTROL This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the heater will automatically turn OFF. To reset: 1. Remove the power from the appliance. Wait 5 minutes. -
Page 16: Maintenance
Bonaire Recessed Electric Fireplace surface. Plastic: • Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water. • NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface. Vents: •... -
Page 17: Troubleshooting
Bonaire Recessed Electric Fireplace Troubleshooting DISCONNECTED THE APPLIANCE FROM THE MAINS AND LET IT COOL DOWN PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution Fireplace turns off and will not turn... - Page 18 Bonaire Recessed Electric Fireplace Heater does not generate heat when Thermal switch has been Turn unit off and unplug unit turned on. tripped. for 10 minutes. Plug back in and turn Wiring is loose. unit on. If plug cannot be reached, Heater is defective.
-
Page 19: Warranty Information
Bonaire Recessed Electric Fireplace WARRANTY INFORMATION Product Sr. No. The warranties contained in this document ("the warranty") are provided voluntarily by Climate Technologies (as manufacturer) to you (as consumer) in relation to your purchase of a product from Climate Technologies ("the product") and are in addition to any rights you may have under the Australian Consumer Law or other applicable legislation. -
Page 20: Warranty Period
Bonaire Recessed Electric Fireplace • This warranty is only valid if the product is operated and maintained in accordance with the manufacturer's instructions. • The appliance must not be modified or changed in any way. • Your proof of purchase MUST be produced before free service will be provided together with a valid serial number. - Page 21 Climate Technologies to proceed with the remedial action prescribed under this warranty. Service Hotline: 1300 665087 e-mail us: service@climtech.com.au Book a request online at: www.bonaire.com.au/support Warranty on Replacement Parts Parts replaced under warranty are warranted for the balance of the original warranty period.
-
Page 22: Warranty Registration
Scan the QR code below using your mobile device and follow the fill out the online warranty registration form. Option2 Visit our website at: www.bonaire.com.au/service and complete our online warranty registration form. Option3 Fill out the details below and post this page together with a copy of your proof of purchase to:...
