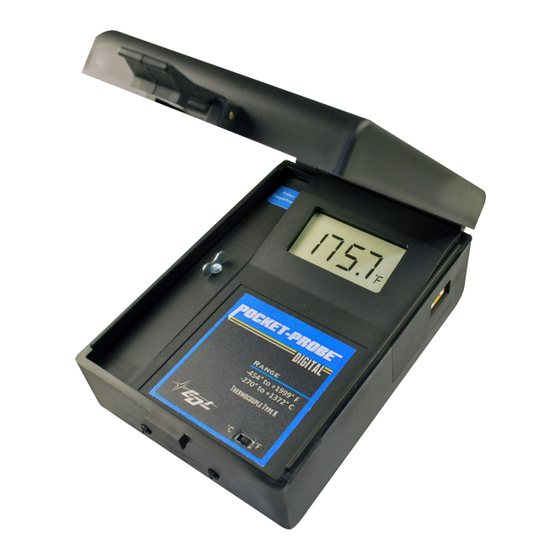

- Page 1 Pocket-Probe Digital Pyrometer ® User Manual Electronic Development Labs, Inc. The Temperature People® Since 1943 244 Oakland Drive Danville, VA 24540 www.edl-inc.com • sales@edl-inc.com Toll-Free: 1.800.342.5335 • Fax: 434.799.0847...
-
Page 2: Table Of Contents
Display Back Lighting Option ..............6 Batteries and Battery Alerts ................6 Battery Replacement ..................6 Specifications ....................7 Accuracy Data.....................7 Service .......................8 Calibration ....................8 Warranty ....................8 EDL Quality Assured Sensors ..............9 Our Most Popular Products ...............10 Trust in Electronic Development Laboratories, Inc........11... -
Page 3: Please Read First
Warning! When measuring operating machinery, never insert your hands or arms. Use correct extension handles at all times. Warning! These instruments are not for use in hazardous (explosive) areas. For hazardous (explosive) operation, use our line of Pocket-Probe® Analog instruments. Warning! These instruments are designed and built for temperature... -
Page 4: Introduction
Temperature measurement accuracy ALWAYS BEGINS WITH THE SENSOR. The most accurate pyrometer cannot compensate for sensor error. We strongly recommend using EDL Quality Assured sensors; if you are not, please see the end of this manual for more information on the other products and services we provide. -
Page 5: Diagram - Features And Options
(Rear of Instrument) Rocker Thumb Switch All Pocket-Probe® Digital pyrometers have a Rocker Thumb Switch with 3 positions: Momentary On, Off, and Continuous On. The Rocker Thumb Switch must be pressed on either Continuous On or Momentary On to display readings. -
Page 6: Options Package (Peak Hold & Magnetic Backing)
Options Package (Peak Hold & Magnetic Backing) Pocket-Probes® that have been ordered with the options package include the Peak Hold Switch and the Peak Hold Reset Button as well as a Magnetic Backing. The Options Package is denoted by an “O” at the end of the part number. Peak Hold operates when the Peak Hold Switch is in the P Position (above 0 °C / 32 °F). -
Page 7: Open Thermocouple Indication
This will verify that the sensor is defective and the instrument is functioning correctly. Industrial ABS Case and Cover The Pocket-Probe® Digital Pyrometer is housed in a heavy duty ABS Plastic Case. It is also available in a steel case version. Tempered Glass Display Window The standard 3/16”... -
Page 8: Display Back Lighting Option
Quality instruments require quality batteries. EDL advises using Alkaline batteries in all situations. EDL advises against the use of Carbon-Zinc batteries in our instruments as there are numerous grades of Carbon-Zinc batteries that can vary in life expectancy by as much as 30%; even at peak, a Carbon-Zinc battery generally has less than half the life of an Alkaline battery, which have a single grade that does not vary. -
Page 9: Specifications
Specifications Display ..................1/2” Tall, Bright liquid crystal display Compensation ...................... Automatic cold end Resolution .................... 0.1°F or 1°F and 0.1°C or 1°C Repeatability ........................ 1/2°F or 1/2°C Input .......Polarized miniature thermocouple jack, accepts standard miniature plugs Separate Battery Compartment ........Requires NO TOOLS for battery replacement. Battery ...................... -
Page 10: Service
Service It is not recommended to perform in-house repairs on your EDL instruments. If the instrument gets damaged or requires service/re-calibration, it is recommended to be returned to the manufacturer. Visit www.edl-inc.com/repairs for more information and instructions. For help, contact 800.342.5335 or email sales@edl-inc.com. -
Page 11: Edl Quality Assured Sensors
In the event of failure of a product covered by this warranty, EDL will repair the instrument when it is returned by the purchaser, freight prepaid, to our manufacturing facility within the applicable warranty period. -
Page 12: Our Most Popular Products
Pocket-Probe® V Digital Pyrometer - With an extended reach integrated into the pyrometer, the Pocket-Probe® V features safe one-handed operation and uses our money saving sensor tips. Pocket-Probe® Analog Pyrometer - The US Navy’s #1 pyrometer! With no electric power source needed, this is the safest pyrometer available for explosive environments. -
Page 13: Trust In Electronic Development Laboratories, Inc
EDL has a long tradition of excellence because being the best isn’t nearly enough for us. Every year, every day, we push ourselves to go beyond our best. That’s why no matter what it is, every EDL product is the most accurate, most cost-effective, most sturdy, longest lasting in its class. - Page 14 Notes...
- Page 15 Notes...
- Page 16 Electronic Development Labs, Inc. The Temperature People® Since 1943 244 Oakland Drive Danville, VA 24540 www.edl-inc.com • sales@edl-inc.com Toll-Free: 1.800.342.5335 • Fax: 434.799.0847 V1.03/20...
