Summary of Contents for Macdonald MDHD
- Page 1 Auckland (Head Office) Christchurch 03 348 2356 20 Carr Rd, Three Kings Auckland 1041 christchurch@macdonaldindustries.co.nz 09 624 1115 Wellington sales@macdonaldindustries.co.nz 04 569 8033 www.macdonaldindustries.co.nz 11/22...
-
Page 2: Installation Instructions

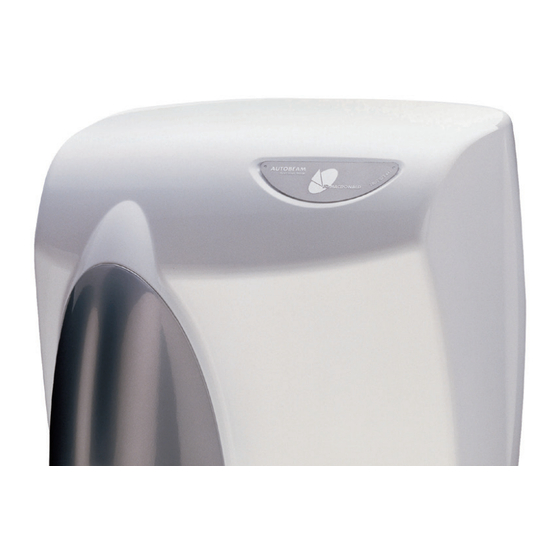

MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS MACDONALD - MDHD AUTOBEAM HOT AIR HAND DRYERS Recommended Height A FLOOR Recommended Height A FLOOR PLEASE CAREFULLY READ THROUGH THIS MANUAL BEFORE USING THE PRODUCT. OBSERVING ALL SAFETY INFORMATION, WARNINGS AND CAUTIONS WILL PROTECT YOURSELF AND OTHERS. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM CATEGORY PERFORMANCE DATA Operating Voltage 220-240 VAC, 50/60 Hz, 10A, 2.4kW Output Warm Air Volume 200 m3/h {118 CFM} Output Warm Air Temp 60 °C {140 °F} at ambient T = 25 °C {77 °F} Output Air Speed 21 m/s [75.6 km/hr] {69 ft/s {47 mi/hr}} Motor Type 1/4 HP , 5.5 krpm, Brush Type, Dual Ball Bearings... -
Page 4: Spare Parts
MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS SPARE PARTS Description Part Control Card (PC BD) MD-HD417-Auto Element MDJ3 Sensor Now included in MDHD417-Auto Motor MDJ1 Brushes MDJ4/B www.macdonaldindustries.co.nz... -
Page 5: Troubleshooting
TROUBLESHOOTING Symptom Corrective Action If the dryer will not First ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Check for obstructions blocking the rotation of the blower and clear any found. If it spins freely, check the motor and thermostat for proper operation out of the unit. -
Page 6: General Safety Information
MACDONALD INDUSTRIES LIMITED INSTALLATION INSTRUCTIONS GENERAL SAFETY INFORMATION: ! WARNING: This product is intended for ! WARNING: Disconnect power at the installation by a qualified service person. source before installing or servicing. ! DANGER: Failure to properly ground ! WARNING: All units must be supplied unit could result in severe electrical shock with a 3-wire service. -
Page 7: Recommended Mounting Heights
RECOMMENDED MOUNTING HEIGHTS - from bottom edge of dryer above finished floor (AFF) 1270mm (50”) Women 1194mm (47”) Children 4-7 years 889 mm (35”) Children 8-10 years 991 mm (39”) Children 11-13 years 1092 mm (43”) Children 14-16 years 1194 mm (47”) Handicapped 1016 mm... -
Page 8: Cleaning And Maintenance
This guarantee will be honored provided that the dryer is installed and maintained in accordance with the instructions. Parts damaged during the Installation are the purchaser’s responsibility. MacDonald Industries warranty covers defects exclusively, and only liability for the replacement of defective parts will be accepted. This warranty does not cover wear and tear, or misuse and abuse.
