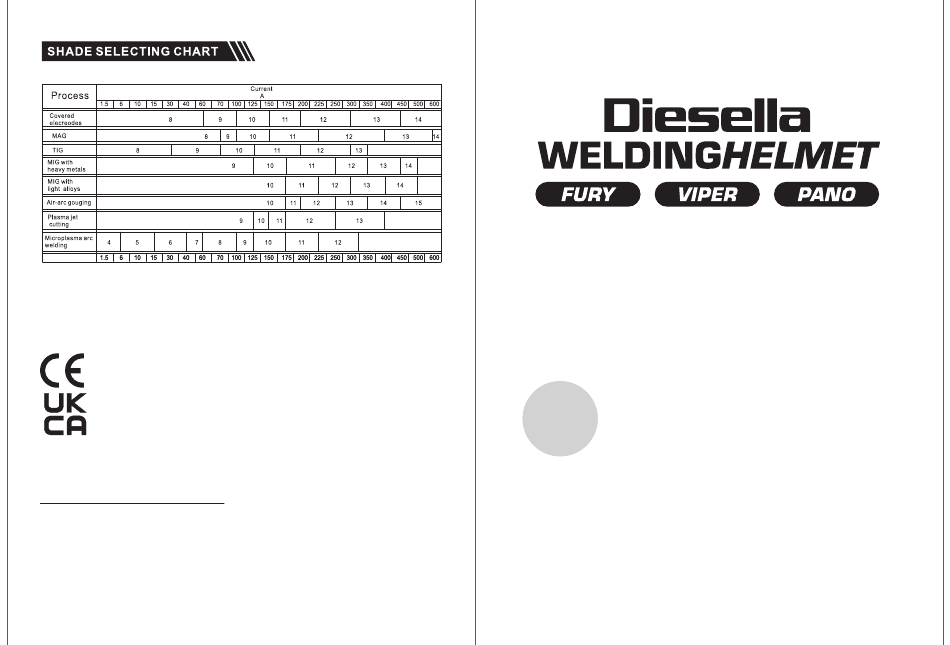

Note: The term "heavy metals" applies to steels copper and its alloys. etc.
Start with shade that is too dark to see the weld zone,then go to a lighter shade that offers a
sufficient vision and never go below the minimum.
ISO 16321-2:2021
ISO 16321-1:2021
CSA Z94.3
ANSI Z87.1
AS/NZS 1338.1
AS/NZS 1337.1
EN 175:1997
EN 166:2002
EN 379:2003
PPE Regulation(EU)2016/425
Directive 2001/95/EC
The welding helmets are tested by the
following notified body:
ECS GmbH
Notified Body 1883
Huettfeldstrasse 50
73430 AALEN
Germany
DIN CERTCO
Notified Body:0196
Alboinstrasse 56
12103 Berlin Germany
TÜV Rheinland UK LTD
Friars Gate (Third Floor),
1011 Stratford Road,
Shirley, Solihull, B90 4BN,
United Kingdom
Approved body number 2571
Operating
Manual
Revision Date:2024.06
Advertisement
Summary of Contents for Diesella FURY
- Page 1 Note: The term “heavy metals” applies to steels copper and its alloys. etc. Start with shade that is too dark to see the weld zone,then go to a lighter shade that offers a sufficient vision and never go below the minimum. ISO 16321-2:2021 The welding helmets are tested by the ISO 16321-1:2021...
- Page 2 visors are worn parts and must be replaced regularly with genuine certified universal spare parts. Transport the equipment with original packing box and away from direct sunlight . Auto-Darkening welding helmet is designed to protect the welders ’eyes from harmful radiation including visible light, ultraviolet radiation (UV)and infra-red radiation (IR) resulting from certain OPERATING INSTRUCTION arc and gas welding processes when used in accordance with user instructions.
- Page 3 0-9 Levels(0.04-2.0S) 0.04-2.0s, Internal Press light (Not suitable for tack mode and spot mode) Memory Mode 10 Records Sensor 4 + 1(Ambient Light) For FURY Solar Cell * 2* lithium Batteries Operating Usage Function -UI Pannel External Fine Tuning Sensitivity Press ,go cycle.
- Page 4 E= Impact Resistance Level 120m/s C= Impact Resistance Level 45m/s Fig.12 VIPER GRIND LOW BAT. MAIN SHADE Fig.17 Fig.13 PANO INSTALLATION SAMPLE - VIPER Fig.2 Fig.15 INSTALLATION SAMPLE - PANO Fig.3 Fig.4 Fig.5 Fig.16 INSTALLATION SAMPLE - FURY Fig.6 Fig.7 Fig.8 Fig.16...
