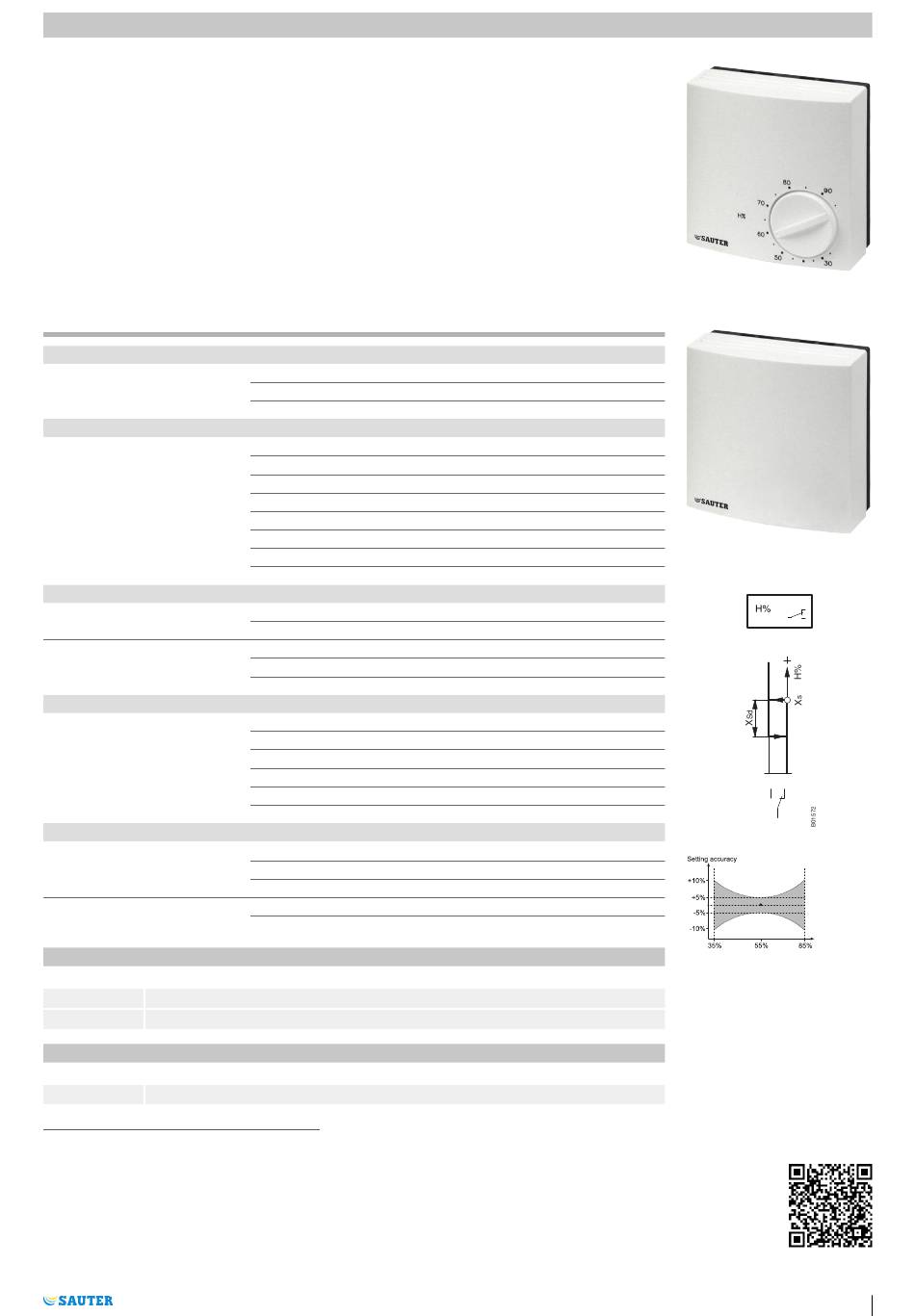

sauter HSC 120 Product Data Sheet

Product data sheet
HSC 120: Room humidistat
How energy efficiency is improved
Enables humidity control devices to be switched on according to needs
Features
• Monitoring and regulation of relative air humidity in rooms by controlling fans, drying units and air
humidifiers
• Variable relative humidity as setpoint based on printed scale in % rh
• Measurement taken via a measuring element of stabilised synthetic textile tape.
• Controller with fixed switching difference of X
Technical data
Power supply
Parameters
Ambient conditions
Operation
Storage and transport
Construction
Standards and directives
CE conformity according to
Overview of types
Type Features
HSC120F001 Setting via external setpoint adjuster
HSC120F010 Internal setpoint adjuster
Accessories
Type Description
0362225001 Intermediate plate, pure white, for wall mounting on recessed junction box
1)
The setting accuracy of the humidistat is valid for the calibration point ±5% rh at 55% rh and 23 °C following
initial calibration at the factory. See diagram "Setting accuracy". In general, humidity sensors (humidistats) are
subject to increased ageing if they are used and/or stored in very contaminated air or aggressive gases. The
humidistat may start to drift and its linearity may change under these conditions. If the humidistats are used in
very contaminated air, the warranty does not cover a premature re-calibration or the replacement of the com-
plete humidistat
2)
Operating status: device mounted and closed
Right of amendment reserved © 2020 Fr. Sauter AG
sd
Max. load
Min. load
Setting range
1)
Setting accuracy
Humidity calibration at
Switching difference
Long-term stability
Time constant in moving air (0.2 m/s) Approx. 5 minutes
Temperature effect
Admissible ambient humidity
Temperature
Admissible ambient humidity
Temperature
Dimensions W x H x D
Weight
Housing
Housing material
Screw terminals
2)
Type of protection
Protection class
Environment class
EMC Directive 2014/30/EU
Low-Voltage Directive 2014/35/EU
10.1
5(3) A, 250 V~
100 mA, 24 V=/~
30...90% rh
±5% rh
55% rh, 23 °C
Typ. 6% rh
Approx. -1.5% rh/a
0.5% rh/K
30...90% rh non-condensing
0...50 °C
10...95% rh non-condensing
-25...70 °C without condensation
76 × 76 × 34 mm
0.09 kg
Pure white (RAL 9010)
Fire-retardant thermoplastic, UL94V-0
For electrical wires of up to 1.5 mm²
IP 30 (EN 60730-1), operating status
II (IEC 60730)
3K3 (IEC 60721-3-3)
EN 60730
EN 60730-1, EN 60730-2-13
24.012
HSC120F001
HSC120F010
3 2
1
relative humidity
at 23 °C
1/3
