Summary of Contents for MEMUP MEDIADISK NRX Series
- Page 1 Feel Design User Guide User Guide User Guide MEDIADISK MEDIADISK NRX Series NRX Series...
-
Page 2: Table Of Contents
USER GUIDE 1. SAFETY AND OTHER INSTRUCTIONS 2. REMOTE CONTROL 3. NETWORK BASED DATA SHARING WITH PC 4. MENU INTERFACE 5. BROWSER MENU 6. RECORDING FUNCTION 7. FILE COPY MENU 8. SETUP MENU 9. SPECIFICATIONS 10. TROUBLESHOOTING... -
Page 3: Safety And Other Instructions

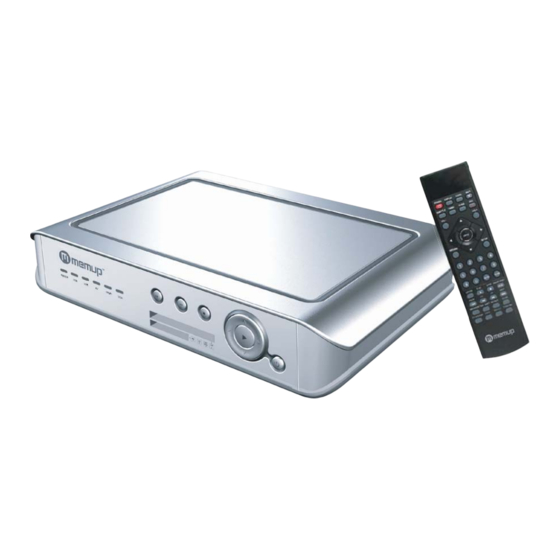

Mediadisk NRX Series is a Home Media Center, with a built-in 3.5“ HDD, can record and play media files (movies, audios and photos) through TV and when connected to PC, can also copy and play shared files via network. SAFETY AND OTHER INSTRUCTIONS Please use NRX carefully and read following instructions. -
Page 4: Remote Control
REMOTE CONTROL Function Buttons POWER on or off. Display media file information. In video and photo mode, press to view time, title or chapter. Select audio track. View Guide menu. Activate subtitles. Enter Timer Menu. Mute audio output. Record or resume when paused. Press repeatedly to set length: 30mins / 60mins / 90mins / 120mins / 180mins / 240mins / Off. - Page 5 Function Function Button Button Jump to a specific point. Skip to next title. SLOW button: play in slow motion. Browse music, photo and movie files. Available levels: 3/4, 1/2, 1/4, 1/8, 1/16x Pause live TV and resume program Return to previous list in menu mode. from the point you left.
-
Page 6: Network Based Data Sharing With Pc
NETWORK BASED DATA SHARING WITH PC Network-based Data Sharing with PC After LAN cable is connected, according to your system environment, set up windows network as follows. To establish network communication between NRX and your computer, two requirements should be satisfied: Folder sharing and security setup Using same IP address band and Subnet Mask... - Page 7 3. If folder is shared, you will see a hand mark on folder icon. Ex: My Movie 4. Go to “Control Panel –Administrative Tools –Computer Management –Local Users and Group” and among displayed items, double–click “Guest” item. WARNING! • Permission setting is only required for Windows XP Pro users. If you are an XP home user, go directly to step “6”.
- Page 8 5. After checking “User cannot change password” and “Password never expires”, keep the other checkboxes unchecked. 6. Go to “Control Panel—Network Connections”. Select “Local Area Connections”. Select “Properties” using right mouse button. WARNING ! • If you cannot see any “Network connections”, click on “Switch to Classic View” on the upper left corner •...
- Page 9 WARNING! If your PC already has “Obtain IP address automatically” checked and IP automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router manufacturer or network administrator.
-
Page 10: Menu Interface
MENU INTERFACE After a few seconds, the system will show guide menu. Selecting Browser It’s an explorer: browse movie, photo, and music files stored in USB, HDD, Network and Card Reader. Video In Select the input source to be recorded. Selecting Timer Rec Create, edit and delete recording schedule and view all schedule status and history. -
Page 11: Browser Menu
BROWSER MENU Browse and play music, photo and movie files stored in NRX or external USB device, card reader, Network or Playlist. Browsing All Select All in menu. Select folder(s) containing all files (Music ,Photo and Movie). Select file you want to view and it will be displayed. - Page 12 Return Select to go to main screen. Rename To rename file: 1. Select Rename from menu bar. 2. Name entry screen appears. 3. Use navigation arrows to select letters and numbers. Select CAPS to toggle between uppercase and lowercase letters. 4.
-
Page 13: Browse Music
Browse Music Select folder containing your audio files. A thumbnail strip will appear at the screen bottom, with song information. NRX supports Mp3, WMA, AAC, OGG format. Browse Photos Select folder containing photo files. Select photo you want to view and it will be displayed full screen. Note: 1. -
Page 14: Recording Function
RECORDING FUNCTION Video in Select to record directly from AV in. System will create “My Recordings” folder at HDD or USB device. Your recorded file will be saved at this folder. File name will be named according to system time. Timer REC Plan recording schedules, view status and history. - Page 15 Edit Schedules Select schedule you want to edit from list. Modify schedule as described in “Create a New Schedule” on previous page. Delete Schedules Select the schedule you want to delete and confirm one, all or cancel. View Schedule Status Schedule list is displayed.
-
Page 16: File Copy Menu
FILE COPY MENU Copy files from Hard Disk, NET, USB or Card Reader from a media to another. Select File Copy from Guide menu or select COPY on remote control. Step 1. Select Source Device Select device your want to copy in Source sector. Step 2. -
Page 17: Setup Menu
SETUP MENU Configure video, record and system settings. Photo Settings Slide Show Timing Set slide show time. Select OFF or interval you require. Transition Effect Select OFF or following transition effects required: Cross Fade – fade in and fade out Left to Right- from left to right Top to Bottom- from top to bottom Waterfall - steep descent of water... -
Page 18: Hdmi Settings
HDMI Settings Change your TV-set to HDMI output to be displayed on your TV screen. Record Settings Quality Select to set default recording quality setting. The highest quality is HQ and requires more storage space. Other settings reduce recording quality and require less storage space. Permanent Timeshift Select to set Permanent Timeshift on or off. -
Page 19: System Settings
System Settings Select System from menu. Menu Language Choose OSD (On Screen Display) language. Text encoding Choose the text encoding language. Time Select to set system time. Enter Manual setup Enter system menu: select field and adjust settings. - 17 -... -
Page 20: Hdd Format
HDD format Warning: Make sure you made a backup of your datas before formatting as it will erase all datas. Partitionning Step 1: Adjust Fat32, NTFS partition and capacity according to your needs. Step 2: Press “Format” to start. Select cancel to return to previous page. Restore default Select to restore factory default. -
Page 21: Specifications
SPECIFICATIONS CONTENT FORMAT SUPPORTED: Video: AVI / MPG / MPEG / MP4 / DAT / VOB Photos: JPEG / JPG Maximum pictures recognizable: 9999 files Audio: MP3 / WAV / WMA / ACC / OGG Maximum files recognizable: 9999 files Compression rate: between 32 kbps and 320 kbps RECORDABLE MEDIA SUPPORTED: Built in HDD... - Page 22 CONNECTIONS Video Input RCA Connector (yellow) x 1 Audio L/R Input RCA Connector (white/red) x 1 IEEE 1394 Input Mini Jack x 1 USB Port x 1 Atapi port x 1 Video Output RCA Connector (yellow) x 1 Audio L/R RCA Connector (white/red) x 1 Video Input RCA Connector (yellow) x 1...
-
Page 23: Troubleshooting
Please refer to Network settings part and follow step by step It could depend on your Operating system, for other OS, please check our FAQ in www.memup.com Make sure your personal firewall is deactivated or correctly set to function with NRX...
