Summary of Contents for Friax RSF2

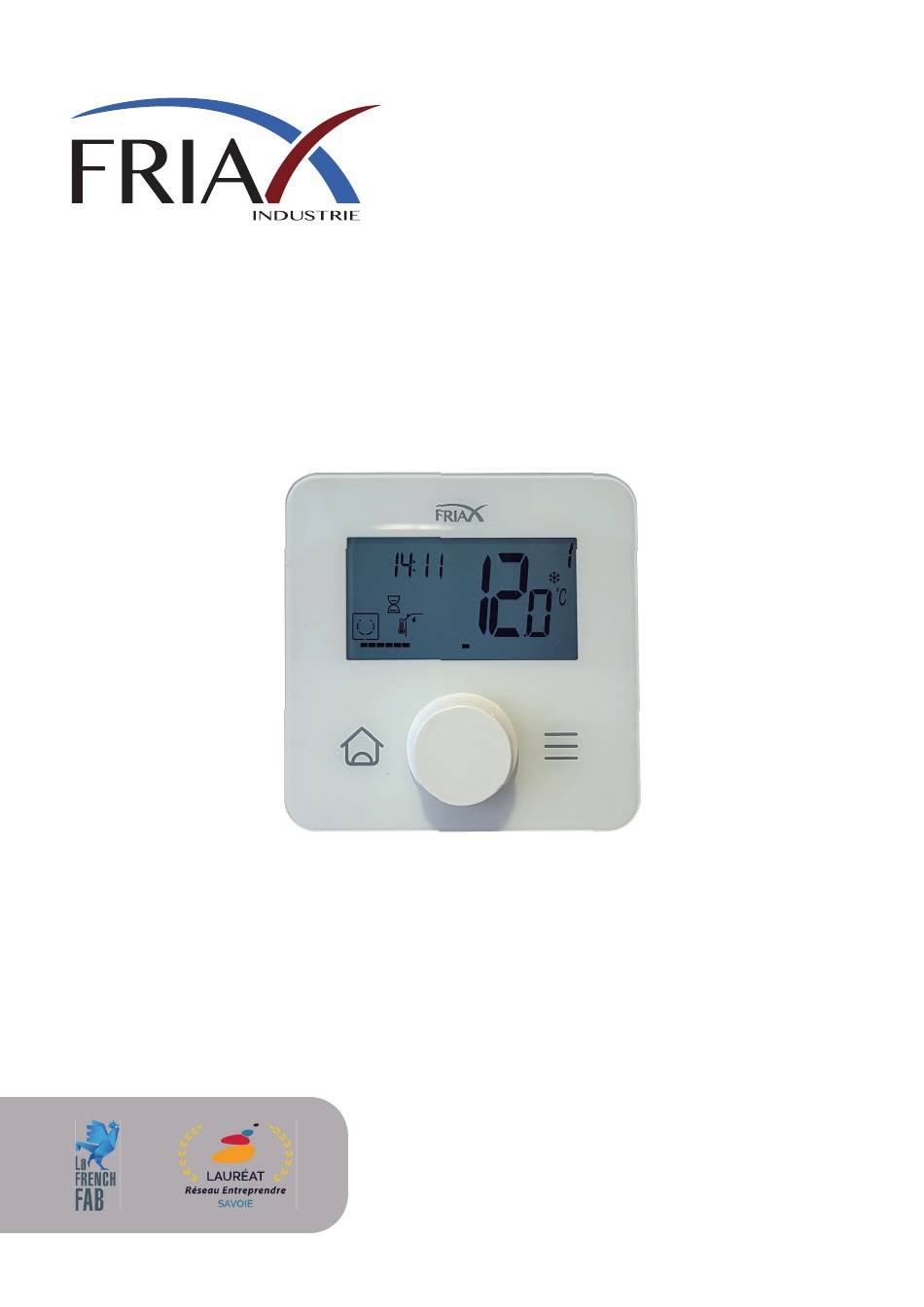

- Page 1 Commissioning & operating instructions RSF2 The characteristics given in this technical data sheet may change without prior notice as ‘FRIAX Industrie’ continues to improve its production. EN-NT-SPCRSF2-0924...
-
Page 2: Read Carefully
However, if you wish to stop your device in winter, we recommend that you do this with the OFF Mode of the remote control. In this case the regulation of your Friax remains on standby and will activate the compressor heating if necessary. Friax industry cannot be held responsible... -
Page 3: Table Of Contents
Summary General information Dimensions and weight Installing the Batteries Display and keys Commissioning Step 1 Remote control pairing Step 2 Reset the system by doing a reset Step 3 Starting the air conditioner Step 4 Setting temperature and humidity settings Step 5 Adjust the dFSE cellar fan speed 9-10 Basic Operation... -
Page 4: General Information
General information Informations générales The remote control can be installed in a room other than the cellar. Its maximum range is 100m in the open field. This distance can be reduced due to the thickness of the walls and the location of the cellar. Your remote control can be attached to a partition or placed on a table stand provided. -
Page 5: Display And Keys
Display and button button Home button Return Push Button and Rotator Description: Left rotation OR Minus OR access previous menu when navigating menus. Brief press: Product wake-up / Validation /. Right rotation OR More OR access next menu when navigating menus. Description of the 2 capacitive keys: button Home : Short press on main screen allows switching between display setpoint/read value. - Page 6 Button Return Button Home Navigation button Temperature or humidity (option) Configuration Remote control battery charge level Keypad lock Units: temperature (°C / °F) or humidity (%) Compressor heating belt Condenser fan speed (EC motor) Silent mode (EC motor) Evaporator fan speed (EC motor) Heating mode hour (12 AM/PM or 24 hrs) Air conditioning mode...
-
Page 7: Commissioning
Commissioning Be careful before this step ensure that all electrical elements, wires, probes, etc. are properly connected. Without this, the functions of the probes and motors would not be taken into account. Step 1 - Remote control pairing (Only monoblocks are factory paired) Turn 1 2 3 4 5 up to PARA... -
Page 8: Step 3 Starting The Air Conditioner
Step 3 - Starting the air conditioner 1 2 3 4 5 EC O A M P M AUT O Press 2 seconds to UT O 1 2 3 4 5 6 7 1 2 3 4 5 6 7 EC O A M P M mode. -
Page 9: Step 5 Adjust The Dfse Cellar Fan Speed
Step 5 - Adjust the dFSE cellar fan speed 48 / 50 EVPL EVA2... - Page 10 * For EVG and EVI, the factory set speeds are adapted to obtain the nominal flow rate for air pressure losses up to 20 Pa. If the pressure loss is higher (up to 100 Pa) you You can increase the speed by increasing the speed with the remote control.
-
Page 11: Basic Functions
Basic functions Press on Vintage) device is in standby mode. 1 2 3 4 5 6 7 EC O A M P M A UT O 1 2 3 4 5 EC O A M P M A UT O 1 2 3 4 5 screen to sleep. - Page 12 Press 3s on Fixed Press 3s on Déverrouiller le clavier de la télécommande Disappears 1 2 3 4 5 AM PM AUTO AM PM AUTO Enable/Disable screen AM PM AM PM AUTO AUTO AM PM AUTO silent mode Enable/Disable AM PM AM PM AUTO AUTO...
-
Page 13: User Menu
User Menu Access Menu 1 2 3 4 5 6 7 EC O A M P M AUT O display 1 2 3 4 5 1 2 3 4 5 6 7 EC O A M P M AUT O 1 2 3 4 5 6 7 EC O A M P M... - Page 14 Acces Menu 1 2 3 4 5 6 7 EC O A M P M AUT O discrepancy 1 2 3 4 5 cellar. Only on Vintage 1 2 3 4 5 6 7 EC O A M P M AUT O set point is 1 2 3 4 5 6 7...
-
Page 15: Alarms
Alarms Description and display of errors Errors are displayed by text replacing the clock indication in ON modes and STANDBY with the following possible texts: Kind 12:00 AS1C AS2C AS3O AVEc AVCc Condenser fan fault A SL A SH AhRh AS3c For AS1C probe errors and AS3h... -
Page 16: Anomalies
LP and HP pressure switches. Depending on the number of bottles stored, the air conditioning The installation works but may take several days to reach the temperature setpoint. Friax does not air conditioners are designed to operate in a ventilation-free not cool enough environment. -
Page 17: Menu Table
Menu Table Menu Parameters User factory values (from 1 to 11) This menu is primarily intended for the user for basic air conditioner settings. N° CONFIG TEXT CONFIG 1 Désignation Setting range Comment setting User Settings Menu InIt rF Paring remote control with regulator Hour Time display 12h AM/PM... -
Page 18: Menu Architecture
Menu architecture 1 2 3 4 5 AM PM AUTO Main Mode Rotation 1 2 3 4 5 AM PM AUTO Choice of one submenu of selection 1 2 3 4 5 AM PM AUTO 3 sec 1 2 3 4 5 AM PM AUTO 3 sec... - Page 19 Choice of Mode Modo ON Rotation Modo OFF *Standby mode accessible User menu para 10 1 2 3 4 5 AM PM AUTO T°C choice Choice % Order Order Choice of Defrosting functionality Rotation Silence Lighting AM PM AUTO 1 2 3 4 5 6 7 Compressor time delay AM PM AUTO...
