Apollo Enclosures HM200i-D Installation Instructions

6. Setting the Thermostat – Temperature range settings are
from 0 – 60C (32-140°F)
For Extreme Cold Temperature below
0 Degrees
– If you are using the heater to
protect your TV from extreme cold
temperatures, set the thermostat attenuator
to 0 degrees C (32 degrees F)
For High Humidity/Condensation –
This setting is variable based on your geographic location.
The rule of thumb is to set the thermostat to 10 degrees above
the dew point in your area. (Example: if humidity is displayed on the
glass in 50 degree F temperatures, set the thermostat to 60 degrees.)
7. Installing TV in Back Panel
After hanging TV, be sure to tie down all signal and power
cables so that they do not come into contact with the heater
modules. Failure to properly route cable may cause damage to
your TV.
Heater Module Handling Precautions
CAUTION:
Never work on live equipment.

Do not touch the heater during operation, as it will be hot.

The heater will remain hot for several minutes after switch-off;

let the heater cool down before removing or touching.
Do not remove any attached adhesive labels.

The heater is protected by a Littelfuse glass 6A 125VAC/VDC

2AG slow blow fuse.
Do not allow electrical wires to come in contact with the

body of the heater or directly in front of the hot air outlet.
Maintenance
There are no user serviceable parts inside this unit. Disassembly
should not be attempted
. If fuse replacement is required, replace with
Ceramic 6.3A 250VAC 5x20mm slow blow fuse or contact
support@apolloenc.com
.
5069-A Maureen Lane │ Moorpark, CA 93021 │ 888-414-5919
www.apolloenc.com
©2021 Apollo Enclosures LLC All Rights Reserved HM200i-D 75-86

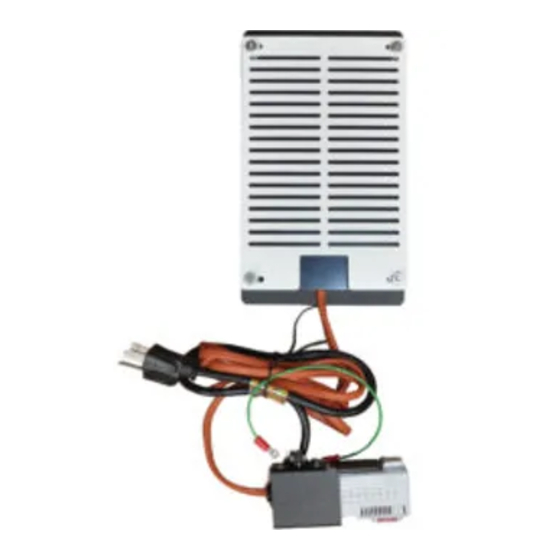

Heater Module
HM200i-D
(for Apollo Models 75" & 86")
INSTALLATION INSTRUCTIONS
The thermostatically controlled convection heater module
is the ideal accessory for demographics of -
• Extreme high humidity or
• Extreme cold climates below 0 degrees F.
The temperature attenuator can be set to control either
environment.
