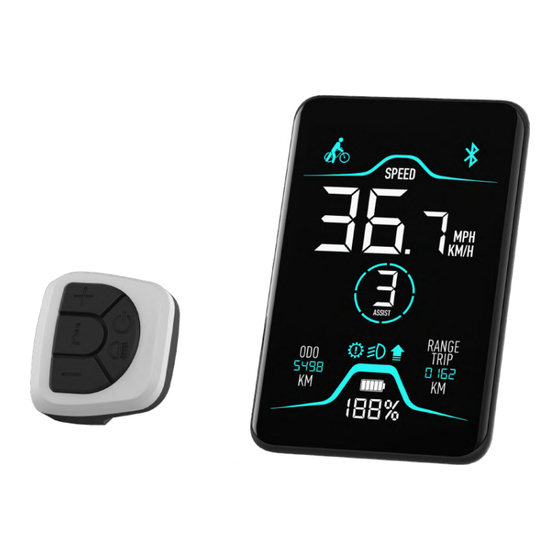

TSE VLCD12 Operation Manual

TSE VLCD12 Operation Manual

Display instrument

Advertisement

Quick Links

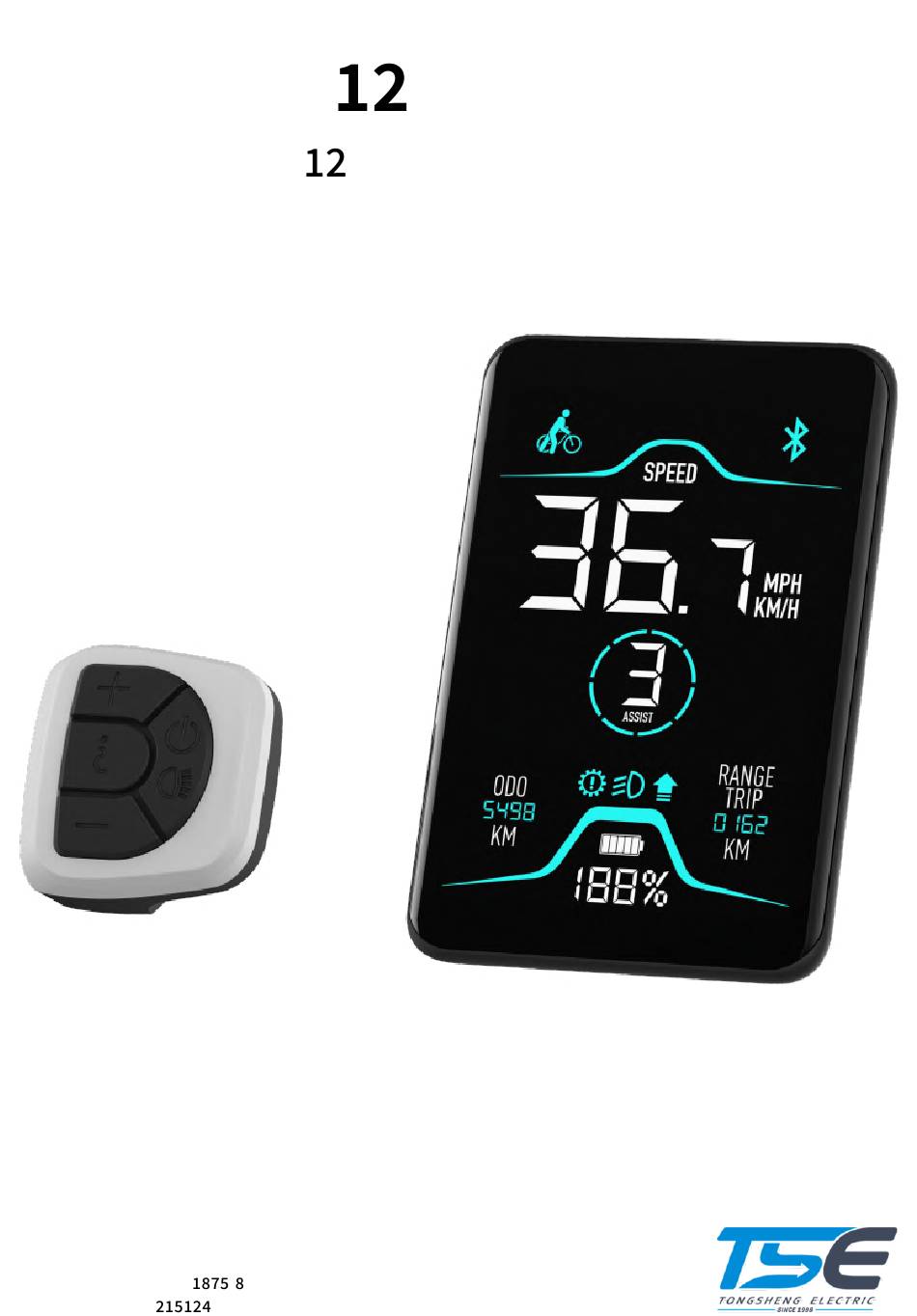

VLCD
形液晶仪表
VLCD
Display Instrument
Operation Manual
苏州同盛动⼒科技有限公司
Tongsheng Powertrain Technology Co,.Ltd
地址: 苏州市通达路 1875-8 号
Address: Tongda road
- Suzhou city
邮编: 215124 (P.C.
)

Advertisement

loading
Need help?

Need help?

Do you have a question about the VLCD12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TSE VLCD12

  • Page 1 VLCD 形液晶仪表 VLCD Display Instrument Operation Manual 苏州同盛动⼒科技有限公司 Tongsheng Powertrain Technology Co,.Ltd 地址: 苏州市通达路 1875-8 号 Address: Tongda road - Suzhou city 邮编: 215124 (P.C.
  • Page 2 Contents ⽬录 Summarize Installation Functions and Operations Key Definitions Main interface Functions and operations Power On/Off Vehicle Speed Display Battery Energy Indicator Setting The Assistance Level Switching the Push Assistance On/Off Headlight Control Functions and operations of other interface Switching the Speed Mode Entering the Firmware Mode Settings Entering the Setting Mode...
  • Page 3 概述 安装 功能和操作 按键定义 主界⾯功能和操作 开机和关机 ⻋速显⽰ 电池电量显⽰ 助⼒⽐选择 推⻋模式选择 ⻋灯控制 其它界⾯的功能和操作 切换速度显⽰ 进⼊固件模式 设置 进⼊设置模式 设置轮径 设置最⾼⻋速 设置⻋速单位 查看电池信息 错误 错误代码 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 4: Installation

    Summarize Intelligent VLCD instrument is especially designed for electric bicycle. It's mainly used to control the power assist. And it can also show the energy of battery, measure the speed of electric bicycle, record the trip distance. Specifications Type VLCD Working Voltage Max Working Current Display Type...
  • Page 5: Functions And Operations

    Functions and Operations Key Definitions ④ ① ③ ② ① Power Assist Used to add gear ② Power Assist Used to reduction gear and km/h power assist ③ Mode Key For toggle mode ④ Power Key Used for switching and headlight Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 6 Main interface Functions and operations Power On/Off Press this button to power on the LCD display, long pressing button for seconds to power off. Automatically shut off without any operation in minutes. The startup interface is in state ODO, as shown in the figure below.
  • Page 7 Battery Energy Indicator Five horizontal blocks show energy of battery. Each block percents of electric energy. Setting The Assistance Level Press button to switch - assist level. Level is for the minimum power, level is for the highest power. Gear is without assist function. Switching the Push Assistance On/Off...
  • Page 8 Headlight Control At startup, press the button headlight light, Indicator lights up at the same time, press the button backlight is off, Indicator is off. Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 9 Functions and operations of other interface Switching the Speed Mode There are levels of mode (SPEED, MAX SPEED, AVG SPEED).Press this button to switch the mode. Default is SPEED. Entering the Firmware Mode Press buttons for second to entering the firmware mode.
  • Page 10 Settings Entering the Setting Mode ➕ Press buttons for second to entering the setting mode. In the setting mode, press buttons to switch the settings. Setting the Wheel Size ➕ ➖ Enter the setting mode and switch to page . Press button to confirm setting.
  • Page 11 Vehicle Speed Unit Selection ➕ Enter the setting mode and switch to page . Press button to confirm setting. Press to switch KM/H or MPH. Press to save. Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 12 Battery Information ➕ ➖ Enter the setting mode and switch to page . Press button to confirm setting. Press buttons to switch battery information. Current Battery Cycle Time Temperature Remain Capacity (mAh) Full Capacity (mAh) Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 13 Error Error code Once the controller encounters an issue, the related error code will occur on panel. The following table is a typical failure code for TS middle motor. Error Code Cause of Issue No error Temperature protection Short circuit protection Handlebar failure Motor phase loss Torque failure...
  • Page 14 概述 VLCD 型液晶仪表是专为电动⾃⾏⻋设计的,与本公司中置电机配 套使⽤,主要⽤于测量电动⾃⾏⻋⾏驶速度和记录电动⻋⾏驶⾥ 程,电 池电量显⽰及控制电机助⼒⼤⼩等等。 参数 机型 VLCD ⼯作电压范围 最⼤⼯作电 显⽰类型 x 段式液晶显⽰ ⼯作温度 °C ~ °C 外形尺⼨ . mm × . mm × . mm(不包括固定件的⾼度) 安装 仪表安装在⻋把上,其输出线上的插件(5 芯快插公头)与操作器上的 插件(5 芯快插⺟头)对插。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 15 功能和操作 按键定义 ④ ① ③ ② ① 助⼒ 键 ⽤于加档 ② 助⼒ 键 ⽤于减档和 6km/h 助推 ③ 模式键 ⽤于切换模式 ④ 电源键 ⽤于开关机和背光 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 16 主界⾯功能和操作 开机和关机 按⼀下 键开机,⻓按 2 秒关机,5 分钟不⼯作⾃动关机。 开机界⾯为 ODO 状态,如下图: ⻋速显⽰ 显⽰实际骑⾏速度,单位公制和英制(KM/H, MPH)可选。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 17 电池电量显⽰ 采⽤横向六段显⽰,每段约 15%电量。 助⼒⽐选择 按下 或者 键切换 1-5 助⼒档位。档位 1 为最⼩助⼒,档位 5 为最⼤助⼒。 档位 0 为⽆助⼒。 推⻋模式选择 开启推⻋模式时,请确认助⼒档位处于 1 ~ 5 档。⻓按 按钮4秒 打开推⻋模式。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 18 ⻋灯控制 在开机的情况下,按下 键,⻋灯打开,并且屏幕上的灯光指⽰ 灯点亮。 再按⼀下 键,⻋灯熄灭,并且屏幕上的的灯光指⽰灯熄灭。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 19 其它界⾯的功能和操作 切换速度显⽰ 有三种速度模式(速度,最⼤速度,平均速度),按下 按钮进 ⾏切换速度模式。默认为速度。 进⼊固件模式 同时按下 和 按钮并保持 4 秒以进⼊固件模式。进⼊固件 模式后屏幕上会显⽰固件升级指⽰灯。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 20 设置 进⼊设置模式 按下 和 按钮 4 秒以进⼊设置模式。在设置模式内,按下 按键来切换设置内容。 设置轮径 ➕ ➖ 进⼊设置模式后切换⾄第 1 ⻚,按下 按钮确认设置。 按下 或 按钮进⾏选择,轮径范围在 5 - 35 ⼨。 按下 后保存设置。 设置最⾼⻋速 ➕ ➖ 进⼊设置模式后切换⾄第 2 ⻚,按下 按钮确认设置。 按下 或 按钮进⾏选择,最⾼⻋速范围在 10 - 60 km/h。 按下 后保存设置。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 21 设置⻋速单位 ➕ ➖ 进⼊设置模式后切换⾄第 3 ⻚,按下 按钮确认设置。 按下 或 按钮进⾏选择,最⾼⻋速范围在 10 - 60 km/h。 按下 后保存设置。 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 22 查看电池信息 ➕ ➖ 进⼊设置模式后切换⾄第 4 ⻚,按下 按钮确认设置。 按下 或 按钮进⾏切换电池信息显⽰。 当前电量 循环次数 电池温度 剩余容量 (mAh) 充满容量 (mAh) Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
  • Page 23 错误 错误代码 ⼀旦控制器有故障会在屏幕上显⽰当前故障代码。 下表为典型的匹配同盛中置电机时的故障显⽰代码 错误代码 故障原因 ⽆故障 温度保护 短路保护 转把故障 电机缺相 ⼒矩故障 堵转故障 ⽋压 过压 霍尔故障 Tongsheng Powertrain Technology Co,.Ltd All Right Reserved...
