Summary of Contents for Delupet QQ002

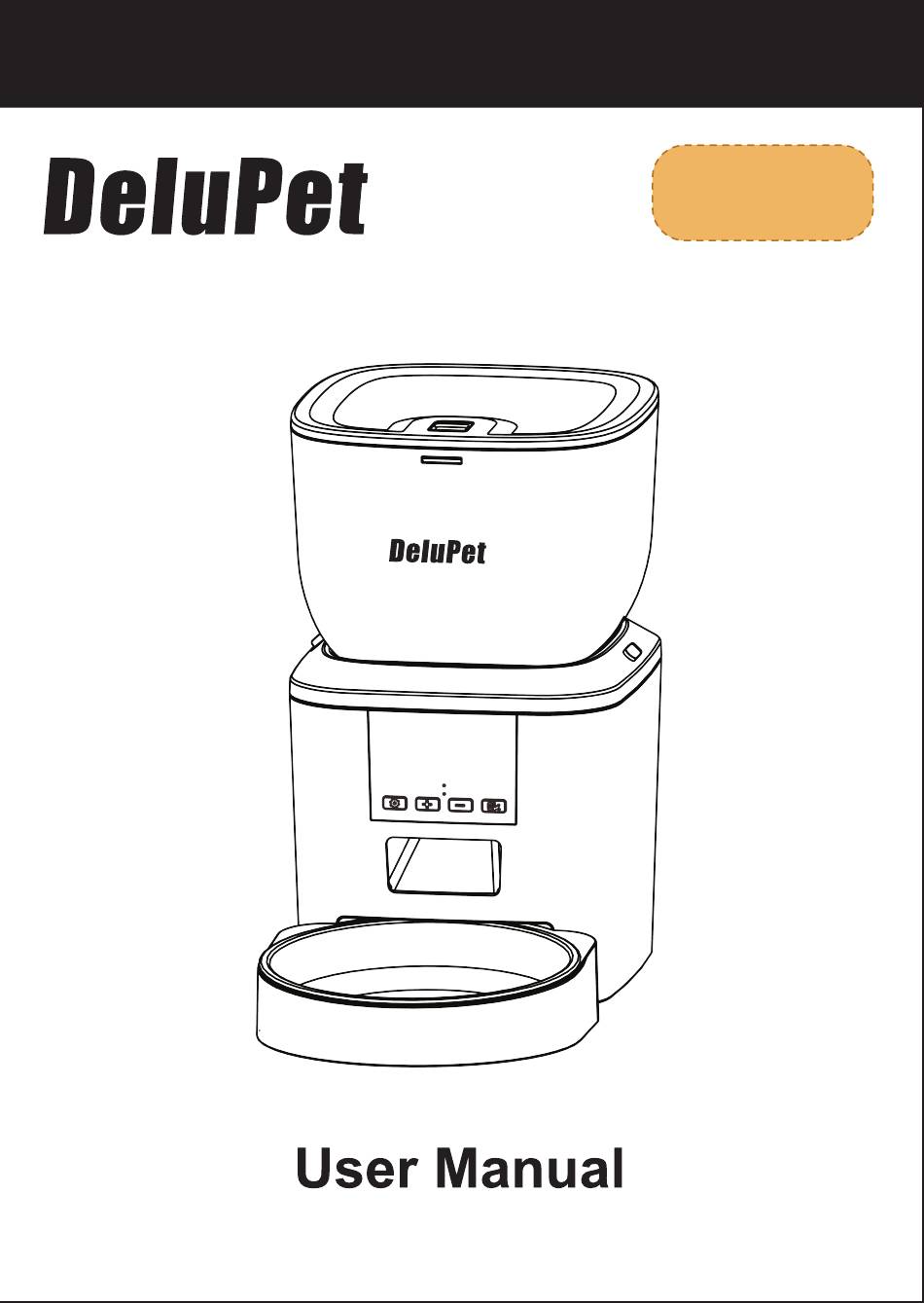

- Page 1 AUTOMATIC PET FEEDER Model QQ002...
-
Page 2: Package List
PACKAGE LIST Food Bowl Type-C Charging Cable Automatic Pet Feeder AUTOMATIC PET FEEDER Model QQ002 User Manual Power Adapter Desiccant User Manual... -
Page 3: Product Description
Product Description 1、Storage Lid 4、Anti-clogging design 7、Food Outlet 2、Food Storage 5、Display Panel 8、Feeder Base 3、Tank Base 6、Control Panel 9、Stainless Steel Bowl 10、Bowl Holder... - Page 4 Product Description 11、Desiccant Box 13、Power Interface 15、Speaker 12、Battery Compartment (4*AA Battery) 14、Compartment Lid...
-
Page 5: Important Safety Information
-Do not stick your fingers into the food outlet or allow your fingers to touch the inside of the dispenser. Read and follow all important precautions listed on pet feeders and packaging. WARRANTY -1-Year Warranty -Lifetime Support For guidance on product use and warranty extension, please contact our brand after-sales staff via email:service@delupet.com... - Page 6 Hardware installation and introduction Insert the type-C USB power cord into the connector on the bottom of the feeder. Open the battery compartment, insert 4 pieces of AA batteries, so that the feeder can still work automatically even withoutexternal power supply. The back-up battery is designed for short-term alternative when the external power supply is cut.
- Page 7 Switch the lock to unlock the grain bucket to the feeder's main body. Lock Operation panel introduction: Microphone Indicator Notice: For your pet's health, please wash the grain bucket and feeding tray regularly. The feeder body should not be filled with water. Please usea wring-able wet cloth to wipe.
-
Page 8: Manual Feeding
Manual feeding In the standby state, quickly press button twice within 1 second to start the manual feeding number setting as shown in Fig1. Continuously short press button to increase the feeding number as shown in Fig2. Stop pressing button after 2s,the feeder will start feeding the specified number of portions. - Page 9 Press to confirm the hour . Then the minute start to flash , press button for minute setting , as shown in Fig7. Then press to save and return to settings mode as shown in Fig8. Press button to exit to standby state as shown in Fig 9. Or go on to set up scheduled feeding settings shown in the manual below.
- Page 10 Press button for 3 seconds, enter the setting mode . Press button to turn the flashing icon right to Digital 1 icon as show in Fi g10. (Press button to turn right and press button to turn left.) Press to select the feeding portions , press bu tton to set portions as shown in Fi g11 and Fig12.
- Page 11 To cancel a certain scheduled feeding, you can set the feeding por�ons to be 0. Then the certain scheduled feeding will be cancelled as shown in Fig18 and Fig19. Feeding voice recording To develop the good feeding habits for pets, the feeder supports pre - recording a maximum of 10 seconds of audio, which is played during scheduled feeding .
- Page 12 lmport Notice: 1. The pet feeder recording will be played only during scheduled feedinglt will finish playing 3 times even the feeder finish feeding.2. When pet food blocked at the food tray, the pet feeder will stop thefeeding to wait pets for 10 minutes.
-
Page 13: Product Specification
Product Specification Model: QQ002 Capacity: Dimensions: 185 x 350 x 308mm Display: LED digital tube Working Voltage: Working Current: Standby Power: <50ma, normal Feeding current: <120mA 1-6 times/day, up to 50 portions Regular Feeding: each time Manual Feeding: 1-20 portions... -
Page 14: Question And Answer
Question & Answer The food amount of each portion is not the same. Answer: Due to the relatively small particle size of the food, there may be a little difference in the grains distributed each time. After about 6 feedings, it should be almost even. How many cups does it dispense a day? Answer: Up to 6 meals can be set a day, with a maximum of 50... - Page 15 Delupet Automatic Pet Feeder Model: QQ002 SHENZHEN KEEKOONVISION TECHNOLOGY CO.,LTD ROOM.02, West District, C2 Building, Hongdehui If you have any questions, Industrial Park, No. 128, Kangqiao Road, Nanwan please feel free to contact us: Street, Longgang District, Shenzhen City, CHINA service@delupet.com...
