Summary of Contents for RGBLE DMT-42CE

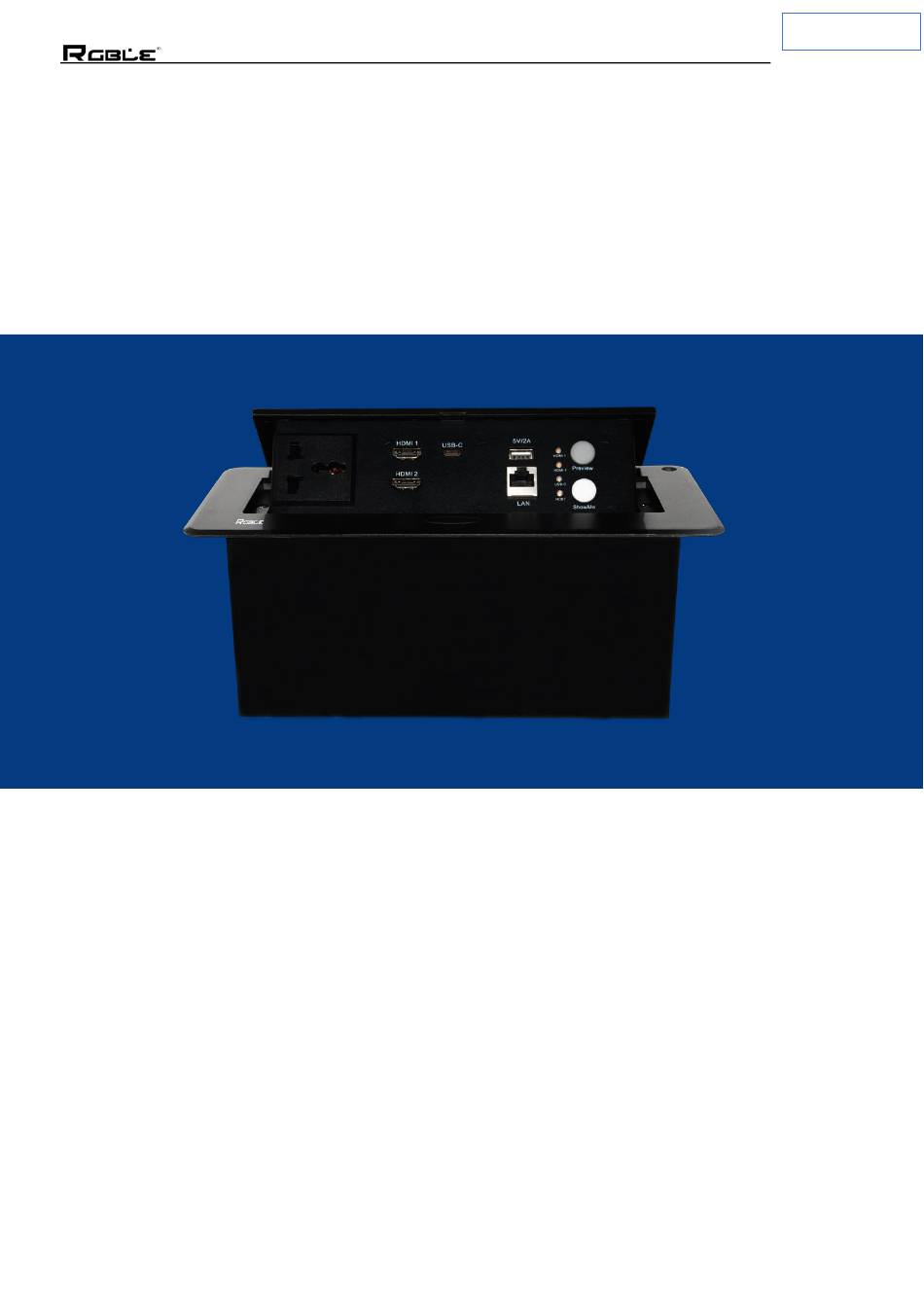

- Page 1 P/N: U00482 4 In 2 Out Multimedia Conference Platform DMT-42CE User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 2 DMT-42CE User manual mainly covers the information of operation controls and functions, key performance parameters, connection of equipment and important safety instruction. This manual is for user operation Instruction only, not for maintenance service purpose.
-
Page 3: Table Of Contents
P/N: U00482 Table of contents 1. Introduction......................3 2. Product Imeage....................3 3. Package Contents....................3 4. Features........................ 4 5. Operation Controls and Functions................. 4 6. Applications......................6 7. Specifications......................9 8. Software application....................10 9. Safety instructions....................15 Stock Code 873117 en.rgble.com 400-1661-021... -
Page 4: Introduction
P/N: U00482 1. Introduction DMT-42CE 4K 4 In 2 Out Multimedia Conference Platform is part of the smart office and smart classroom system. The aim is to simplify the complicated operations and eliminate high failure rate during HD AV signal transmissions, switching and controls in smart meeting room and classroom, to increase the efficiency effectively, to reduce the usage of manpower and materials at same time. -
Page 5: Features
Compact output node integrated design for flexible onsite installation The system is simple in structure, cascade wiring via CATx cabling to link each unit, saving cable Synchronous Control System, simple and efficient Smart management, unattended 5. Operation Controls and Functions Stock Code 873117 en.rgble.com 400-1661-021... - Page 6 Connect to the upper device in a cascade or Link IN transmitter Link OUT Output: Connect to the next device in a cascade or receiver HDMI OUT HDMI local display Audio Loop-out Audio OUT 3-pin phoenix RS-232/Networking/Upgrade port connector Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 7: Applications
◆ Audio de-embedding output synchronously with video, can be connected to speaker system seamlessly ◆ Integrated Design, make signal inputs, conversion, switching, transmission in one, improve system stability ◆ NO programming, NO training, NO maintenance, make everything so easy, synchronization by one- key, simple operation and unattended. Stock Code 873117 en.rgble.com 400-1661-021... - Page 8 ◆ NO programming, NO training, NO maintenance, make everything so easy, synchronization by one- key, simple operation and unattended. ◆ Creative “Hand-in-hand” cascades, make the system more simple, synchronous transmission of audio, video, control and other signals just through “One Cable” Stock Code 873117 en.rgble.com 400-1661-021...
- Page 9 ◆ With the synchronization management function of the whole system, ‘One Butten’ to complete the switching of audio video signals and the system ON-OFF, to achieve ‘autonomous’ management in the entire process, make the conferences, teaching and seminars into one. Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 10: Specifications
P/N: U00482 7. Specifications Parameter Model：DMT-42CE HDMI HDMI 1.4a HDCP HDCP 2.0/1.x Up to 4K UHD@30Hz(4:4:4),@60Hz(4:2:0) Video resolution RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 Color Space HDR10, HDR10+, HLG and Dolby vision Support HDR LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus... -
Page 11: Software Application
(the HDBT OUT on the last device is unconnected to the HDBT IN of the first device (that is, not close the loop), the DIP switch setting must be 00000001, only the far- right DIP switch is in up position. Stock Code 873117 en.rgble.com 400-1661-021... - Page 12 P/N: U00482 Figure 2 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 13 COM Port, the Baud Rate 115200, Refer to figure 2. Click Auto Detect and wait a while before clicking Auto Assign address to ensure that all devices in the Series can be detected and assigned addresses and environments. Refer to figure 3 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 14 Caution: Please get the devices connections well installed before using! Press and hold the Preview button for 5 seconds to restore the factory default settings, use it with caution! Description of software functions Figure 4 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 15 BaudRate. Read Software version: After clicking Read Version button, move the mouse cursor to area 9 to view version information. Area 7: EDID display area. Area 8: Instruction writing and response display area. Area 9: Icon view of devices. Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 16: Safety Instructions
Attention: In order to avoid electric shock. Please do not open the lid. Please contact with the professional staff. Information instructions It is list some contents about operation and setting unsuccessful, and some correlation notice information. Stock Code 873117 en.rgble.com 400-1661-021... - Page 17 ➢ The electrolytic capacitor on the circuit board burn lead to explode. ➢ Please classified collection and disposal. Do not get to household garbage. ➢ Please classified disposal or according to the environmental regulations to disposal. Stock Code 873117 en.rgble.com 400-1661-021...
