Shenzhen Kingbird Network Technology CO.,LTD

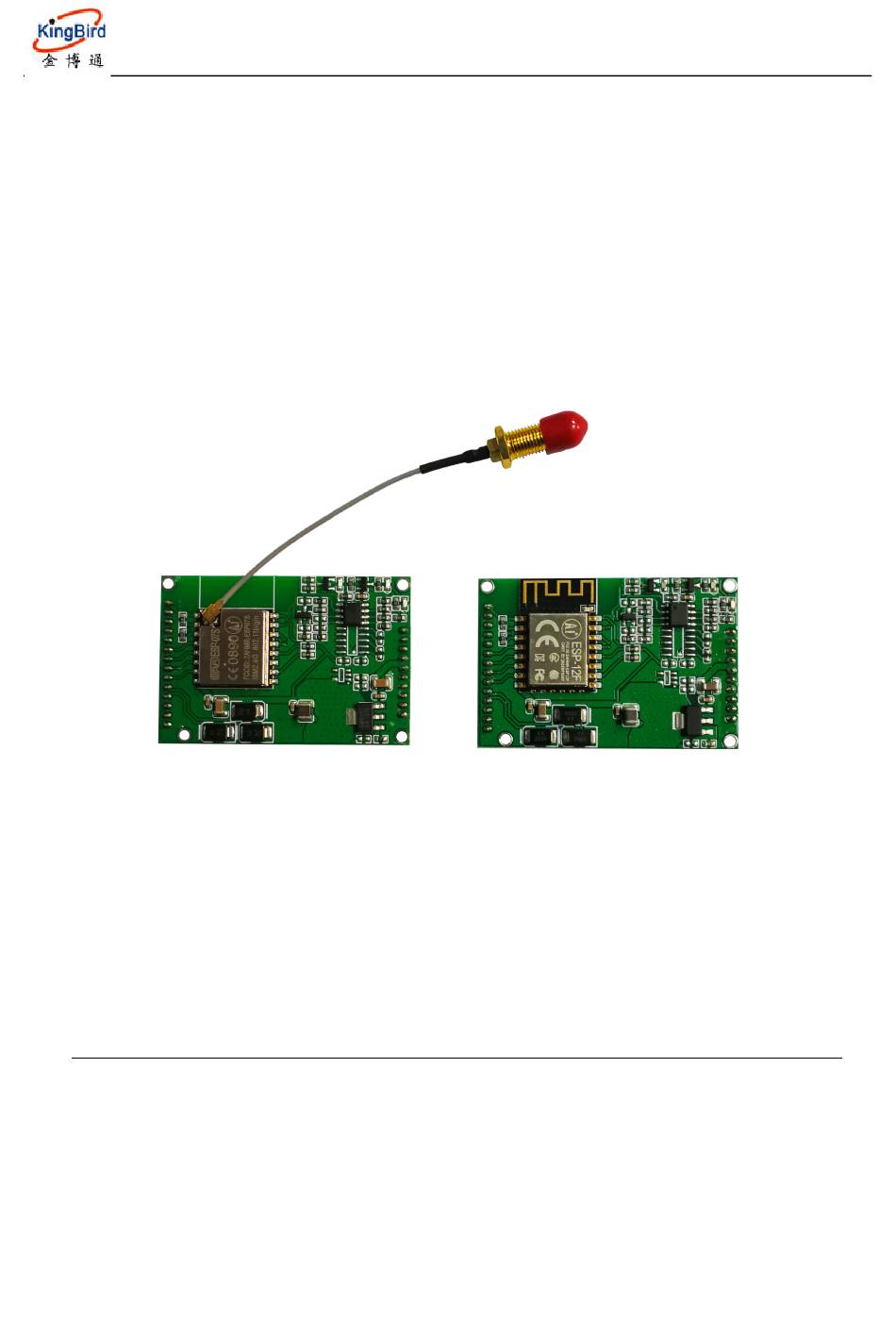

KB3077-KF WIFI Module
Shenzhen Kingbird Network Technology CO.,LTD
Add: Room 302, building 5 COFCO(Fuan) Robot CS Indurstrial Park,No.90 of Dayang road,Baoan
Districe,Shenzhen China
TEL:+86-755-82556825
Web：http://www.kingbirdnet.com
User Manual
Fax：+86-755-82556825 EXT: 8012
EMAIL：sales@kingbirdnet.com
KB3077-KF WIFI module
1
Advertisement
Table of Contents
Related Manuals for Kingbird KB3077-KF
Summary of Contents for Kingbird KB3077-KF
- Page 1 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module KB3077-KF WIFI Module User Manual Shenzhen Kingbird Network Technology CO.,LTD Add: Room 302, building 5 COFCO(Fuan) Robot CS Indurstrial Park,No.90 of Dayang road,Baoan Districe,Shenzhen China TEL:+86-755-82556825 Fax：+86-755-82556825 EXT: 8012 Web：http://www.kingbirdnet.com EMAIL：sales@kingbirdnet.com...
-
Page 2: Use Safety
TCP/IP protocol stack, and can achieve switch among three interfaces of UART port, Ethernet and WiFi. User can not only communicate with KB3077-KF by using mobile phone or PC in LAN, but also can let it connect with WiFi Router nearby to achieve internet remote communication. So it is also a complete and fast solution for transmitting date through internet based on user’s device with serial... - Page 3 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module 2 KB3077-KF WiFi Module Technical Parameters Wireless standard ： IEEE 802.11n 、 IEEE 802.11g 、 IEEE Network standard 802.11b 11n:MAX 150Mbps Wireless transmission 11g:MAX 54Mbps rate 11b:MAX11Mbps Channel No. 1-14 Frequency 2.4-2.484G...
- Page 4 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module Reboot Low to reboot Reserved Reserved Pin Reserved Reserved Pin Reserved Reserved Pin Work mode swith Hang high:Data mode; Low:Download program Output1 Digital Output 1 Output2 Digital Output 2 Input1 Digital Input 1...
- Page 5 Notice: please don't install when charged. 3.2 Unpack For transportation safety, KB3077-KF usually requires reasonable packaging. Please reserve packaging materials in case of transshipment. Each set of KB3077-KF includes the following parts:...
- Page 6 AP running at the same time), the mobile phone and PC set as Station mode can connect with KB3077-KF directly through WiFi. After WiFi start the first time, the IP is: 192.168.16.254, the network protocol is Server mode, the port is 5000. Other different working modes can be set as per user’s need.
- Page 7 Socket connection will be established through APP software or TCP software in the mobile phone. The default port of KB3077-KF is 5000. Then data can be transmitted to serial port by WiFi module. This way is to connect mobile phone and PC directly with WiFi module.
- Page 8 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module WiFi Module Set as Server First by configuration software set the Wifi module for Station or AP + Station mode, set in the configuration of network communication and remote server IP and port, in the Station configuration Wifi SSID and Wifi password, configure these parameters, on the right side of the configuration software will appear "configuration success!", when there is a "GOT_IP", the module has been...
- Page 9 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module Mobile phone (or PC) to search the WiFi router, and connecting, added to the same network router, query to assigned to mobile phone through a router is assigned to the IP, and if the PC, you can set the IP or IP query its distribution;...
- Page 10 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module Note: Our company provide the corresponding server platform, if user need Internet communication, can be directly use our company’s platform. Late on the project, the user can develop their own server platform software, if you still need to our company's server platform, can contact our sales staff..
- Page 11 5．WiFi Module Parameters Configuration There are three ways for KB3077-KF parameters configuration: serial port configuration, LAN and the Internet (server) configuration. Configuration software interface screenshots:...
-
Page 12: Parameter Specification
115200 bps. LAN configuration: when KB3077-KF connected to a LAN, you must first enter the IP and port of the module, the default port is 5000, if I do not know its IP, can be searched by sending a radio instructions to obtain its IP address. - Page 13 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module port, the default 5000; Server IP: module in the network communication as the Client (Client), IP Server (Server); Server port: module in the network communication as the Client (Client), the Server (Server) service port;...
-
Page 14: Serial Port Configuration
Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module network configuration module, the default is 1; Digital port maximum number: maximum number of connections when digital; Operating system: System restart: restart, effective configuration parameters; Restore factory parameters: restore the factory default parameters;... -
Page 15: Change Parameter
Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module 5.1.3 Change parameter According to the need to modify the single parameter, click change after the completion of the corresponding Settings button; 5.1.4 Save Changes After the completion of the modifying parameters, module will be automatically saved. Module parameters take effect after restart. -
Page 16: Link Module
Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module 5.2.2 Link Module Selected LAN IP mode, input the correct IP and port (fixed configuration port 9999), click on the link, after the success of the connection at the bottom of the status bar will prompt the connection is... -
Page 17: Modify The Parameters
Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module 5.2.3 Readparam Click to read the parameter, after the success of the read all parameters automatically listed (the same as the serial port configuration); 5.2.4 Modify the parameters According to the need to modify the single parameter, click change after the completion of the corresponding Settings button;... - Page 18 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module Choose the Internet IP, input the correct IP and password, click on the target id, you can modify the target in the pop-up screen id need to modify the id for us 5.3.2 Connection module, enter the configuration status...
- Page 19 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module 5.3.3 Read the parameters Click to read the parameter, after the success of the reading corresponding parameters automatically listed (the same as the serial port configuration); 5.3.4 Modify the parameters According to the need to modify the single parameter, click change after the completion of the corresponding Settings button;...
- Page 20 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module Click on search and data label can be search module of the wlan; At the same time can be connected 7. Broadcasting search and radio data to the LAN or Internet devices for data communication.
- Page 21 Shenzhen Kingbird Network Technology CO.,LTD KB3077-KF WIFI module...
