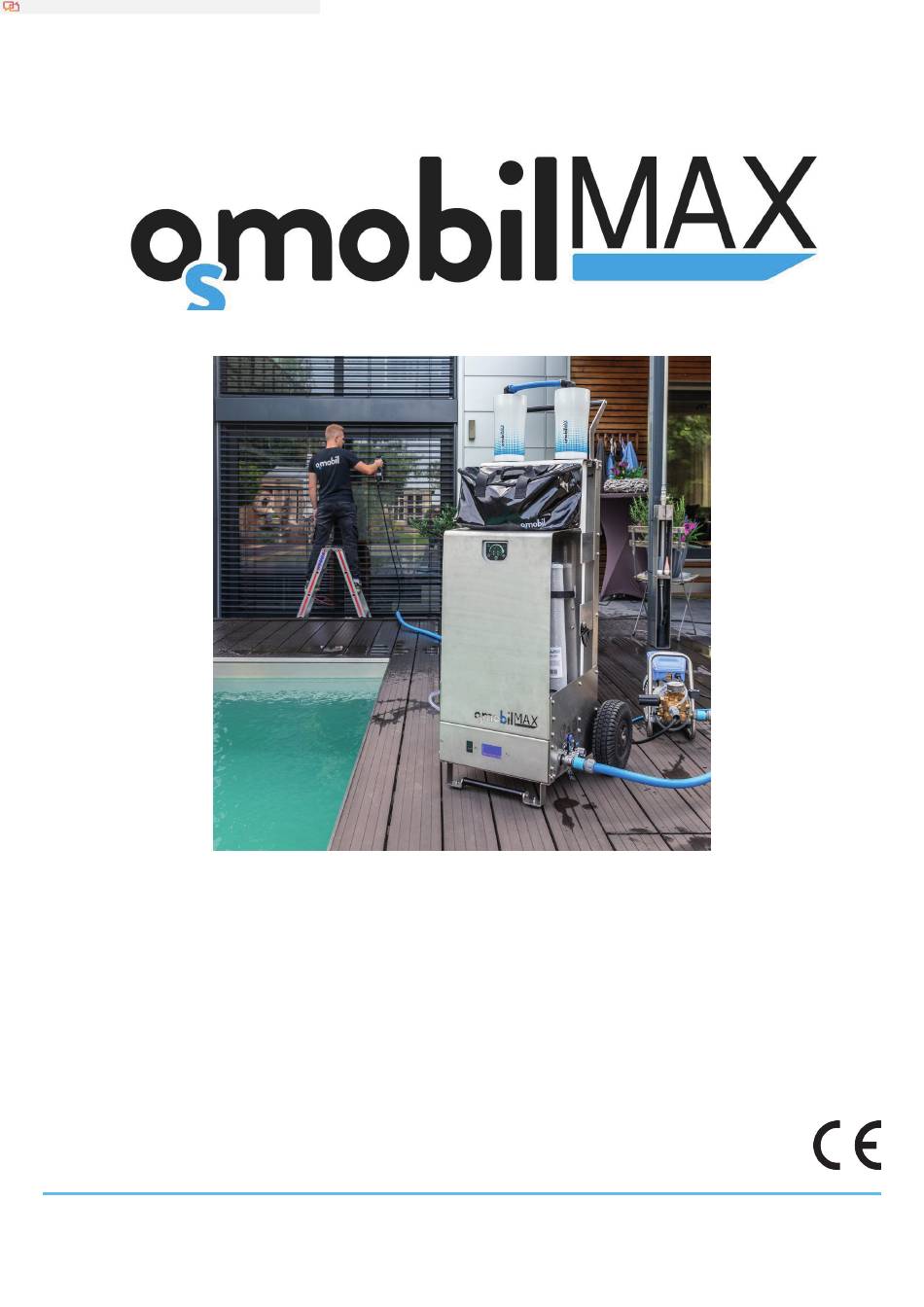

Osmobil MAX Original Operating Instructions

Hide thumbs

Advertisement

Table of Contents

Translated from German to English - www.onlinedoctranslator.com
Original operating instructions in
All previous versions are replaced by this one.
OSMOBIL MAX
German language
Current version from August 2024.
T 05225 86367-0
VF Reinigungstechnik GmbH
Blankenfohrweg 11
info@vf-reinigungstechnik.de
32139 Spenge
www.gebaeudereinigung-shop.de
VAT ID No. DE367257084
Managing Director
Tax number 324/5767/4145
Tobias Becker
District Court Bad Oeynhausen
Christopher Gerbig
HRB 19598

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX and is the answer not in the manual?

Questions and answers

Summary of Contents for Osmobil MAX

  • Page 1 Translated from German to English - www.onlinedoctranslator.com OSMOBIL MAX Original operating instructions in German language Current version from August 2024. All previous versions are replaced by this one. T 05225 86367-0 VF Reinigungstechnik GmbH VAT ID No. DE367257084 Managing Director Blankenfohrweg 11 info@vf-reinigungstechnik.de...

  • Page 2: Table Of Contents

    3. Commissioning and production of pure H2O / Practical guide Pages 9-11: Page 12: 4. Maintenance, care & winter rest Page 13: 5. Troubleshooting 6. Warranty & 7. EC Declaration of Conformity Page 14: Space for your notes Page 15: Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...

  • Page 3: Safety Regulations, Technical Data, Components And Pictograms

    • Before carrying out any maintenance or repair work, always ensure that the power supply to the device is disconnected and that all water-carrying parts are depressurized. • The water produced with the OSMOBIL MAX is not suitable for drinking! • Do not touch electrical components if your hands are wet! •...

  • Page 4: Ambient Temperature

    City water according to German Drinking Water Ordinance from municipal supplier ambient temperature 3°-40° C 230 V and 50 Hz power connection Dimensions in cm (H*W*D) approx. 136 * 59 *59 weight (dry) approx. 95 kg Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...
  • Page 5 (only for input value below 400 PPM, see display unit) pure water from Recycling mode off 3 x pure water output (please plug in the receiver when the device is off) Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...
  • Page 6 6: Accessory bag (removable) 7: Lashing eyes 1.12 Control panel components 8: Pure water on & off 9: Figure 2 Connection for tank sensor 10: Recycling on & off 11: Pure water output (3x) Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...

  • Page 7: General And Special Functions

    2.1 X-Flow system / shutdown and water quantity control The OSMOBIL MAX has an X-Flow system. This system controls the amount of water that the OS-MOBIL MAX makes available on the pure water side depending on the maximum possible water flow at the three pure water outlets (permeate) and regulates the pure water amount down to “zero”...
  • Page 8 2.3 Tank filling A tank sensor or float switch with a connecting cable is available as an accessory for the OSMOBIL MAX. This can be installed "upright" through the top of the tank in any tank of your choice and plugged into the plug on the OSMOBIL (see Figure 2.9).

  • Page 9: Commissioning Andproduction Of Pure H2O / Practical Guide

    First of all, you should organize a city water and electricity supply with sufficient power at the respective work site. For the OSMOBIL MAX, this must be at least 2-6 bar inlet pressure. The amount of water that reaches the OSMOBIL MAX must also be at least 1200 liters per hour. In order to achieve the nominal output of 750 liters of pure water per hour, 1500 liters must be available on the device.
  • Page 10 Then connect the personal protection plug to the power supply. Then press the green "RESET" button on the personal protection plug of the OSMOBIL MAX. The pump will now slowly start up. After a short time, the containers will be full and 100% of the water will flow out of the "concentrate" or waste water outlet.(“red sticker”...
  • Page 11 Please always follow the rule “First electricity, then water”!Then stow 3.10 Installation diagram – cleaning (without tank sensor) city water OSMOBIL MAX concentrate / wastewater drain permeate / pure water cleaning system Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...

  • Page 12: Maintenance, Care & Winter Rest

    4 Maintenance, Care & Winter Rest 4.1 Changing the pre-filter The only filter or component on your OSMOBIL MAX that needs to be changed regularly is the pre-filter in the transparent housing on the back of your device. To change this, unscrew the transparent filter housing anti-clockwise and remove it together with the filter candle.

  • Page 13: Troubleshooting

    Your specialist dealer will be happy to advise you on this. • The OSMOBIL MAX may not be receiving enough water or the inlet pressure is below 0.5 bar. The pump does not start here, as no pure water production is possible. Increase the inlet pressure so that the machine starts up again automatically.
  • Page 14 HRB 19598 6 Warranty All OSMOBIL water systems are subjected to extensive quality control and testing before delivery and are only sold to commercial customers. The design of the devices is already designed for absolute reliability and durability. Should there be any problems or a reason for complaint within the warranty period (12 months), please direct the respective claim for replacement to VF Reinigungstechnik GmbH.
  • Page 15 T 05225 86367-0 VF Reinigungstechnik GmbH VAT ID No. DE367257084 Managing Director Blankenfohrweg 11 info@vf-reinigungstechnik.de Tax number 324/5767/4145 Tobias Becker 32139 Spenge www.gebaeudereinigung-shop.de District Court Bad Oeynhausen Christopher Gerbig HRB 19598 Instructions for mobile reverse osmosis system OSMOBIL PRO MAX...
