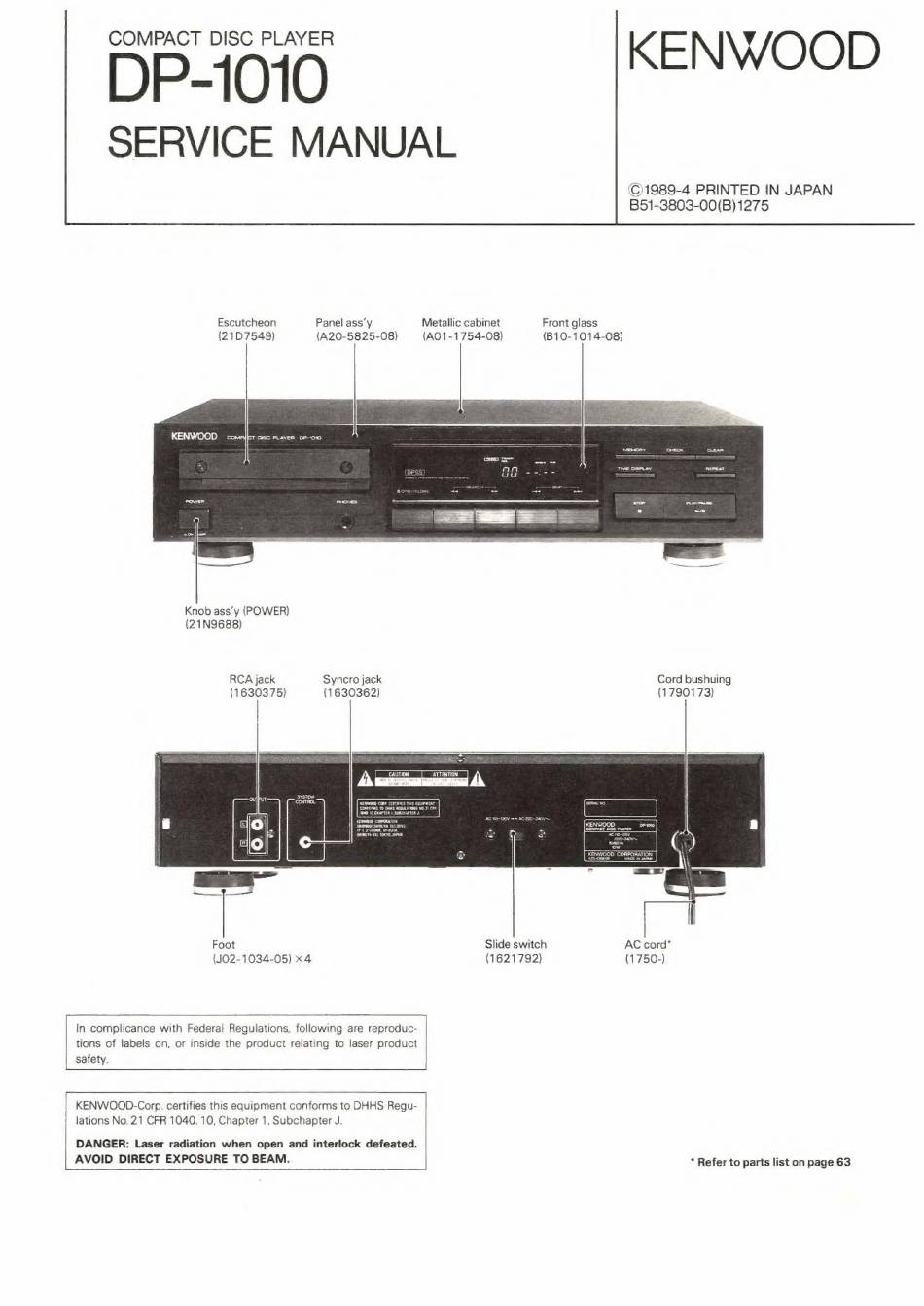

COMPACT
DISC PLAYER
P-1010
KENWOOD
SERVICE MANUAL
Escutcheon
Panel ass'y
(21D7549)
(A20-5825-08)
©1989-4 PRINTED IN JAPAN
B51-3803-00(B)1275
Metallic cabinet
Front glass
(A01-1754-08)
(B10-1014-08)
Knob ass'y (POWER)
(21N9688)
RCA jack
Syncro jack
(1630375)
(1630362)
Cord bushuing
(1790173)
Foot
(JO2-1034-05) x4
Slide switch
AC cord"
(1621792)
(1750-)
In complicance with Federal Regulations, following are reproduc-
tions of labels on, or inside the product relating to laser product
safety.
KENWOOD-Corp. certifies this equipment conforms to DHHS Regu-
lations No.21 CFR 1040. 10, Chapter 1. Subchapter J.
| DANGER:
Laser radiation when open and interlock defeated.
AVOID
DIRECT EXPOSURE
TO BEAM.
*" Refer to parts list on page 63
Advertisement
Table of Contents
Need help?
Do you have a question about the DP-1010 and is the answer not in the manual?
Questions and answers
again,how to fix it(the disc may not closed)
To fix the disc not closing issue on the Kenwood DP-1010, follow these steps:
1. Check if the tray is obstructed: Make sure nothing is blocking the tray from closing.
2. Verify if tray open operation completed: Ensure the tray fully extended and the "TRAY OUT" signal is set to “H”.
3. Check pickup position: The pickup must move inward and activate the inner limit switch before the tray closes. If the switch is not triggered, the tray may not close.
4. Listen for motor/brake activity: Confirm disc motor stops after braking (1 sec wait), allowing the tray mechanism to operate.
5. Wait for automatic retry: The system may retry tray operation after a 4-second timeout if the pickup doesn't reach the inner limit.
6. Inspect hardware: If the above steps fail, check for mechanical or sensor faults in the tray or pickup mechanism.
If the tray still does not close, a service inspection may be needed.
This answer is automatically generated
disc can not be closed
The disc may not close on the Kenwood DP-1010 if the pickup does not move inward or if the inner limit switch is not activated. According to the operational flowchart, the tray close process only starts when the pickup has moved inward and the pickup inner limit switch is ON. If these conditions are not met, the tray remains open.
This answer is automatically generated
