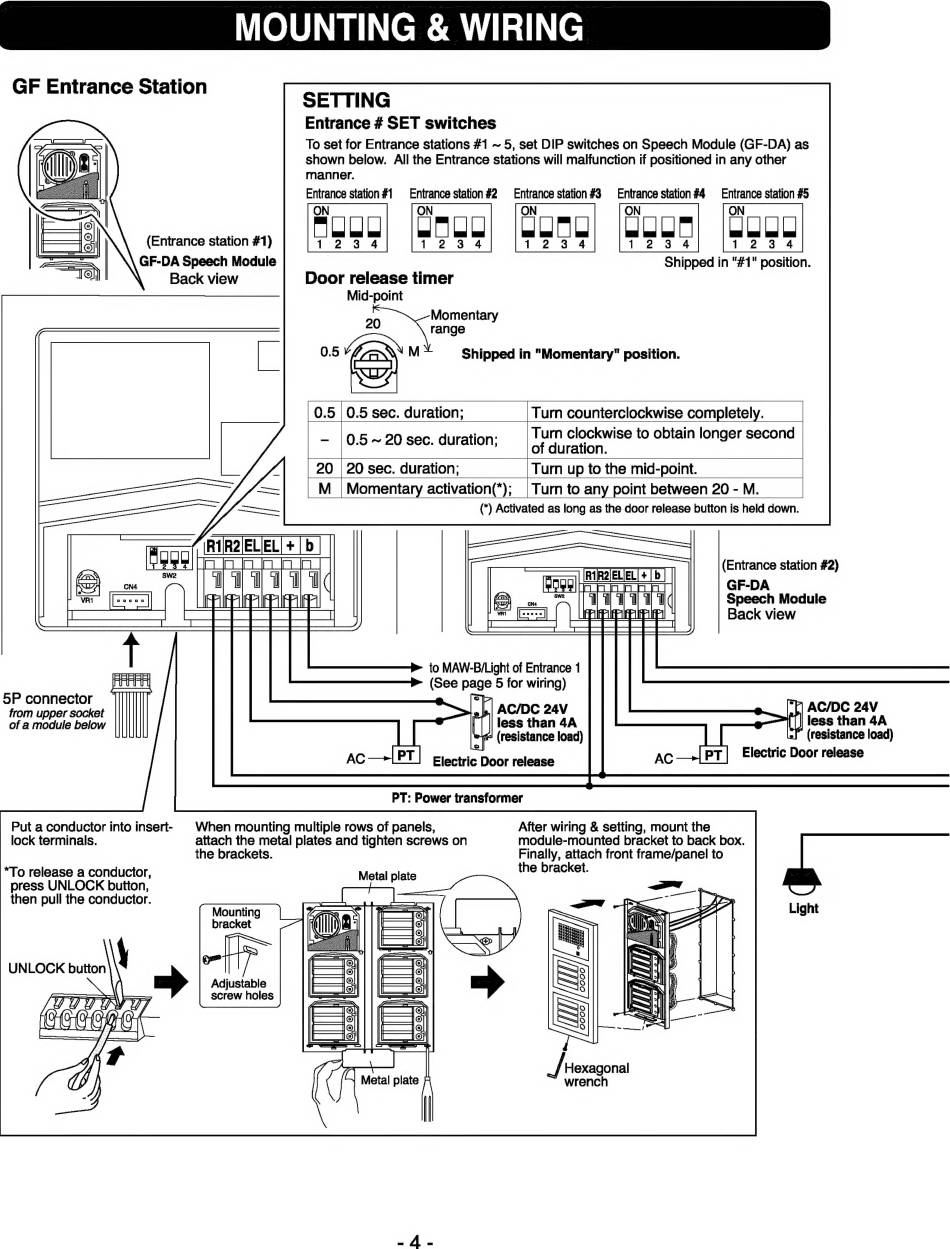

MOUNTING & WIRING
GF Entrance Station
SETTING
Entrance # SET switches
To set for Entrance stations #1 ~ 5, set DIP switches on Speech Module (GF-DA) as
shown below. All the Entrance stations will malfunction if positioned in any other
manner.
Entrance station #1 Entrance station #2 Entrance station #3 Entrance station #4 Entrance station #5
(Entrance station #1)
GF-DA Speech Module Shipped in "#1" position.
Back view Door release timer
Mid-point
Momentary
20 range
0.5 M Shipped in "Momentary" position.
0.5 sec. duration; Turn counterclockwise completely.
` re Turn clockwise to obtain longer second
0.5 ~ 20 sec. duration; ot duration:
20 sec. duration; Turn up to the mid-point.
Momentary activation("); | Turn to any point between 20 - M.
(*) Activated as long as the door release button is held down.
(Entrance station #2)
GF-DA
Speech Module
Back view
to MAW-B/Light of Entrance 1
(See page 5 for wiring)
U Ac/Dc 24v > AC/DC 24V
i
i
|
l less than 4A ' less than 4A
AC LET Electric Door release
5P connector
from upper socket
of a module below
an J
# (resistance load) T (resistance load)
AC Electric Door release
PT: Power transformer
Put a conductor into insert- When mounting multiple rows of panels, After wiring & setting, mount the
lock terminals. attach the metal plates and tighten screws on module-mounted bracket to back box.
the brackets. Fed oo front frame/panel to
*To release a conductor, Metal plat the bracket.
press UNLOCK button, eal a
then pull the conductor.
om
Adjustable
screw holes
UNLOCK button
J Hexagonal
wrench
