Summary of Contents for Alabama Metal Samples MS4500L

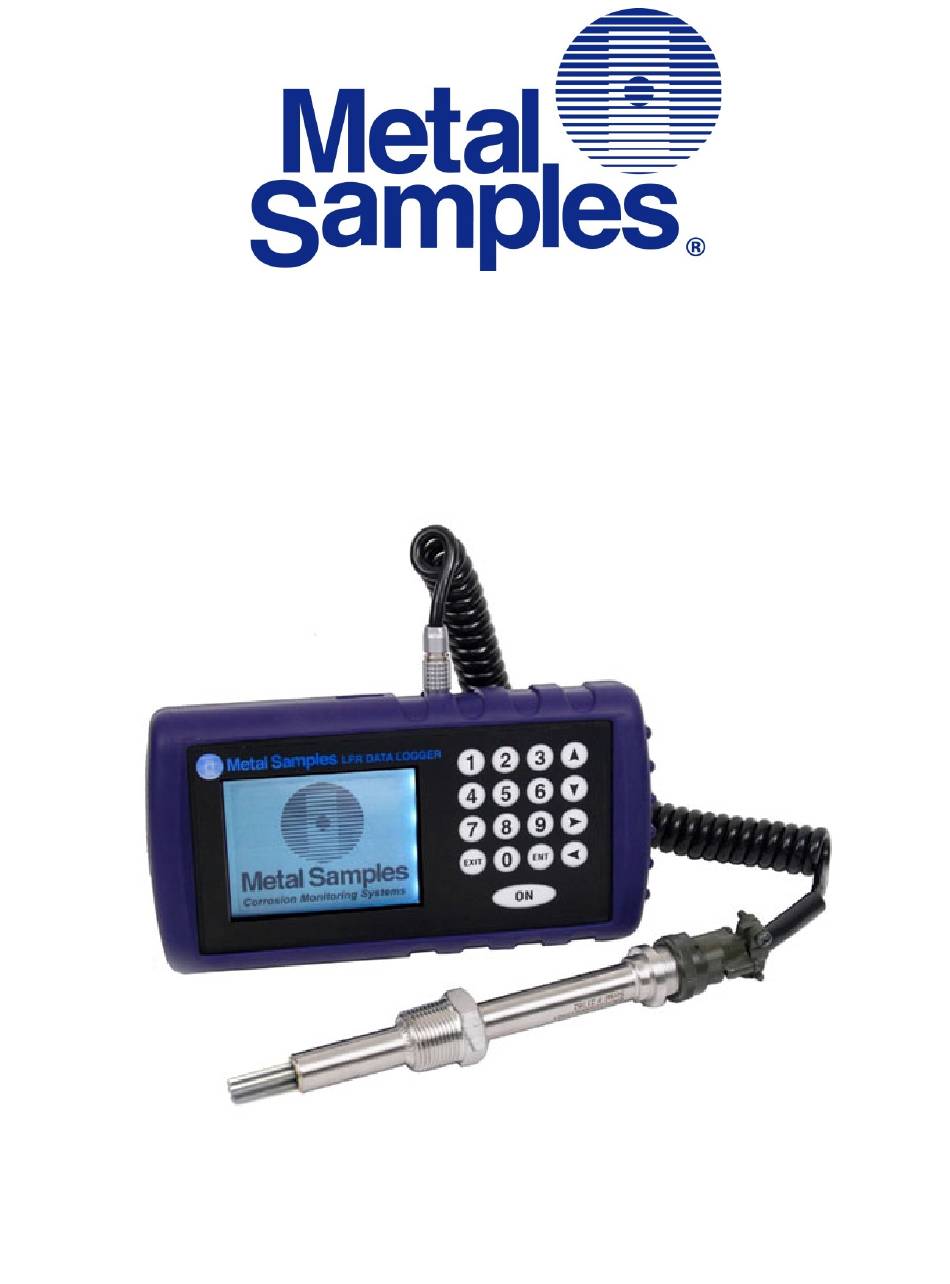

- Page 1 MS4500L LPR Data Logger Operator’s Manual Metal Samples Company A Division of Alabama Specialty Products, Inc. 152 Metal Samples Rd., Munford, AL 36268 Phone: (256) 358-4202 Fax: (256) 358-4515 E-mail: msc@alspi.com Internet: www.metalsamples.com...
-
Page 3: Table Of Contents
Table of Contents I. Introduction ............................... 1 A. General Description ........................1 B. Principles of Operation ....................... 1 C. Technical Specifications ......................3 II. Start Up and Operation ..........................4 A. Receiving the MS4500L Data Logger ..................4 B. Start Up ............................4 1. Port Details and Probe Connection ................4 2. Power Up ........................5 a. Safe Area Usage ....................6 b. -
Page 5: Introduction
I. Introduction A. General Description The MS4500L is a hand‐held, battery powered, corrosion meter capable of measuring and storing data from all types of Linear Polarization resistance (LPR) corrosion probes. The instrument is light weight, microprocessor‐based, and features a simple, menu‐driven interface using a keypad and a backlit graphical LCD display. Corrosion rate measurements are made using the Linear Polarization method. Essentially, the instrument measures the current required to polarize the electrodes of a probe to a known potential. From the polarization potential and the measured current, polarization resistance can be calculated. Then, using Faraday’s law, the instantaneous corrosion rate can be calculated from polarization resistance. This method finds a wide variety of applications since it can be used in conductive and nonconductive environments such as petroleum, chemical, water, soil, or even atmosphere. After taking a reading, the instrument displays corrosion rate in mils per year (mpy). The reading can then be stored to memory or discarded. All stored readings are automatically time and date stamped. Readings are stored to non‐volatile Flash memory which retains data without the need for a battery backup. The MS4500L High Resolution ER Data Logger can store 16,000 readings per probe on up to 250 different probes (4 million total). Stored data can be downloaded directly to a USB Flash (“jump”) drive in non‐ hazardous areas. Data can be opened and charted using the provided CDMS software, or can be imported into any standard data analysis (spreadsheet) program such as Microsoft Excel. Data can also be reviewed and charted on the instrument’s LCD display for quick reference. B. Principles of Operation MS4500L High Resolution LPR Data Logger operates on the Linear Polarization Resistance (LPR) technique and is used in conjunction with an LPR probe. General corrosion Linear Polarization Resistance (LPR) is based on the fact that in a corroding electrode the relationship between icorr and the polarization resistance is given by the following equation: icorr = B Rp , where Rp = ∆E ∆I with ∆E being the applied voltage and ∆I the resulting current. Harmonic Distortion Analysis (HDA) allows the MS4500L to determine icorr without using the Tafel slopes (ba, bc). This is typically done by applying a low frequency sinusoidal voltage and determining the distance of the resulting current. The MS4500L accurately measures the general corrosion rate by implementing Harmonic Distortion Analysis (HDA) to improve the performance of Linear Polarization Resistance (LPR). A process‐... - Page 6 Localized Corrosion (Pitting) Electrochemical Noise (ECN) is the method of monitoring spontaneous fluctuations generated at the interface of the corroding metal and process solution. As localized corrosion occurs, these fluctuations increase. The MS4500L monitors these fluctuations on the electrode surfaces for 17 minutes. It then performs a statistical analysis resulting in a unitless pitting factor value between 0 and 1. A pitting factor of nearly 0 represents no localized corrosion activity and a pitting factor of 1 represents high localized corrosion activity. Independent studies have revealed that a sustained pitting factor of greater than 0.3 is cause for concern and you should investigate the source of the elevated Localized Corrosion rate. Conductance Solution resistance is a measure of how easily electricity flows along a certain path through an electrical element. The reciprocal of the solution resistance is solution conductance. The MS4500L measures solution resistance in order to more accurately calculate the general corrosion rates. As an added feature the MS4500L provides you with the solution conductance in units of Siemens as the tertiary variable that is not scalable. The MS4500L requires a minimum solution conductance of 4 μS in order to provide reliable corrosion data. The solution conductance value that the MS4500L provides can be used to approximate solution conductivity by this relationship: Conductivity ( S cm ) ≈ Conductance (S) 19 Solution conductivity is a function of distance. As the electrodes corrode, their sizes and geometry change causing this correlation to deteriorate. The MS4500L should not be considered as a replacement for standard conductivity meters. ...
-
Page 7: Technical Specifications
C. Technical Specifications Model MS4500L High Resolution LPR Data Logger Physical Data Instrument Weight*: 2.13 lb. (0.97 kg) Total Weight w/ Case & Accessories: 7.40 lb. (3.35 kg) Instrument Dimensions*: 8.57"L x 4.54"W x 2.38"D (21.77cm x 11.53cm x 6.05cm) Carrying Case Dimensions: 14.50"L x 11.38"W x 5.88"D (36.83cm x 28.89cm x 14.92cm) Operating Temperature: ‐13° to 140°F (‐25° to 60°C) Storage Temperature: ‐13° to 158°F (‐25° to 70°C) * Includes protective boot. Measurement Data Probe Type 2‐Electrode LPR and 3‐Electrode LPR Measurement Type General Corrosion Localized Corrosion Conductance Measurement Unit mpy (mils per year) or mmpy (mm per year) Unitless microSiemens (µS) Measurement Range(s) Default Range: 0 to 40 mpy (0 to 1 mmpy) Default Range: 0.0 to 1.0 5 to 333,333 ... -
Page 8: Start-Up And Operation
II. Start‐up and Operation A. Receiving the MS4500L H igh Resolution LPR Data Logger Check the MS4500L High Resolution Data Logger for any shipping damage when it is first received. When the unit is unpacked, verify that the following items are included: Carrying Case Data Logger Meter Prover User’s Manual Probe Cable In the event of shipping damage, quantity shortage, or missing items, it is recommended that the event is documented immediately and that digital photographs are taken. Any shortages or missing items should be reported to Metal Samples immediately. In the event of shipping damage, a claim should be opened with the responsible carrier. B. Start‐Up Using this product in any way other than that specified within this manual may impair the CAUTION: intrinsic safety protection. l'utilisation de ce produit de toute autre manière que celle spécifiée dans le présent manuel ATTENTION : peut altérer la protection de sécurité intrinsèque. Start‐up of the MS4500L High Resolution Data Logger involves the following steps: 1. Port Details and Probe Connection 2. Power‐Up 3. -
Page 9: Power-Up
The MS4500L High Resolution Data Logger is supplied with a probe cable, and it can be connected to the LPR probe, no additional hardware is necessary. Connect the probe cable ‘Lemo’ connector end to the data logger probe connector ‘J9’ available on top of the data logger. Connect the other end of the probe cable i.e. probe connector (MS Connector) to the probe. 2. Power‐Up The unit is supplied with 4 AA batteries installed. The instrument can be powered up by pressing the ‘ON’ button on the Keypad. The Start‐up screen with the Metal Samples logo will appear on the screen; the start‐up screen confirms the software version currently running and the SD card status. SELECT PROBE MAKE MEASUREMENT RECALL READINGS DELETE READINGS DEVICE SETUP SET MEASUREMENT TIMER COMMUNICATIONS LANGUAGE / IDIOMA / LINGUAGEM BACKLIGHT ON/OFF 10. -
Page 10: Safe Area Usage
a. Safe Area Usage The MS4500L High Resolution Data Logger is approved for use in hazardous areas but can be used in non‐hazardous areas as well. The data transfer from the unit to PC should be done in a safe area. A certified USB isolator should be used between the unit and PC for data transfer. b. Hazardous Area Usage This section provides general guidelines for hazardous area usage. However, CAUTION: regardless of anything stated here, the MS4500L High Resolution Data Logger must be used in full compliance with the control drawing located in Appendix A and all of the local area requirements. The entity parameters of the unit are given below. Cette section fount des directives générales pour l’utilisation en zone dangereuse ATTENTION : Toutefois, et indépendamment de toute déclaration faite ici, L’enregistreur de données de haute résolution MS4500L doit être utilise en pleine conformité avec le schéma de contrôle donne en page 20 et avec toutes les exigences du locale zone dangereuse. J9-USB Port J8 – Mini USB Port Entity Parameters: = 4.94V = 4.94V = 0.332A = 0.215A = 0.410 W = 0.322 W... - Page 11 CAUTION: 1. Mini USB port to transfer the data from the Data Logger to PC allowed only in safe area through certified USB barrier. 2. Connection of the equipment to the Metal Samples # ET1867 USB barrier (or any other certified barrier used with the equipment) may only be made whilst both the barrier and the equipment are located in the non‐hazardous area. 3. Only Certified USB flash drives are allowed to use in Hazardous locations. 4. Conductive coating utilized on the equipment is permanently static dissipative and humidity independent, no further maintenance is necessary. The unit needs to be returned to the manufacturer if any damages/scratches noticed on the outer surface of the e quipment. • DO NOT USE CHEMICAL SOLVENTS TO CLEAN THE OUTER SUFRACE OF THE EQUIPMENT OR BOOT. ATTENTION: 1. Mini port USB pour transférer les données de l'enregistreur de données au PC autorisé uniquement dans une zone sûre grâce à une barrière USB c ertifiée. 2. Connexion de l'équipement aux échantillons métalliques # ET1867 La barrière USB (ou toute autre barrière certifiée utilisée avec l'équipement) ne peut être fabriquée que si la barrière et l'équipement sont situés dans une zone non dangereuse. 3. Seuls les lecteurs flash USB certifiés sont autorisés à utiliser dans des endroits dangereux. 4.
-
Page 12: Battery Replacement
c. Battery Replacement The battery compartment is located on the back of the instrument. You must first remove it to access the battery compartment. To replace the batteries, first loosen and remove the cover screw, then remove the battery cover to expose the batteries. Remove the old batteries and replace them with four new 1.5V ‘AA’ size batteries, being sure to follow the polarity (+/‐) symbols in the battery compartment. Replace the battery cover and cover screw. WARNING: Do not mix old and new b atteries. Do not mix batteries of different types (such as alkaline and lithium.) Duracell PC1500 battery is required for intrinsic safety. The cover screw is used to prevent unauthorized tampering of the batteries and is required to ensure intrinsic safety. Do not over‐tighten the cover screw, as this may damage the instrument case. ATTENTION: Avertissement ! Ne mélangez pas des piles neuves et usées. ... -
Page 13: Setup And Operation
3. Setup and Operation MAIN MENU The MS4500L allows you to measure metal loss and corrosion rate. Review this section which describes the functions that display on the Main Menu: SELECT PROBE MAKE MEASUREMENT RECALL READINGS DELETE READINGS DEVICE SETUP SET MEASUREMENT TIMER COMMUNICATIONS LANGUAGE / IDIOMA / LINGUAGEM BACKLIGHT ON/OFF 10. POWER OFF FW-1890-45L-01.20 10/01/23 12:34:33 Select the functions by using the up or down arrow and pressing ENTER or directly selecting the number using the keypad and press ENTER. Pressing ‘EXIT’ will return the selection to the first item of the Main ... -
Page 14: Existing Probe
ENTER NEW PROBE ‐ To enter the ID of a new probe, select ‘ENTER NEW PROBE’; the next screen allows you to enter the ID number and the type. Enter the Probe ID using the number keys. (Use the Up/Down arrows to scroll between alphanumeric characters. Use the Right/Left arrows to advance to the next character or go back to the previous character.) When a 4‐digit Probe ID is entered the cursor automatically advances to the Probe Type field. b. Enter Probe type by selecting the number of Electrodes. 3 Electrodes is default type. Electrode type can be changed by using the up/down arrow key. Use the right arrow to advance to the ‘MEAS.CONFIG(measurement Configuration). Use up/down arrow key to select General corrosion (GC) + Conductance (Con) and Local Corrosion (LC) individually or in combination. The following measurement configuration are possible 3 Electrodes a. GC (General Corrosion) +Con (Conductance) b. LC (Local Corrosion + Con (Conductance) c. GC (General Corrosion) +LC (local Corrosion) +Con (Conductance) 2 Electrodes a. GC (General Corrosion) b. LC(Local Corrosion) c. GC (General Corrosion) +LC (Local Corrosion) Use the Right/Left arrows to advance to the ‘B_VAL (B value), K_VAL and A_VAL. Enter B user Value or Stern‐Geary voltage. 25.6mV (Default value). This is relevant in LPR mode only. This value does not normally need to be changed. e. Enter K Probe Constant. 11600 (default probe constant) This value is dependent on the electrode material’s properties. f. Enter Electrode Area (A Value). Default value= 4.75cm2. (Electrode area for EL 400 electrodes.) g. Press ENTER to Save the probe parameters. ... -
Page 15: Delete Existing Probe
ENTER NEW PROBE DELETE EXISTING PROBE 1000: GC+LC+Con 2500: GC+Con 3500: LC+Con PRESS ENTER TO SELECT o Press the arrow key to select a probe ID. o Press ENTER. DELETE EXISTING PROBE It is occasionally necessary to remove the ID of a probe from memory, for example: o When the memory bank is full o When a probe is no longer used To delete the ID of a probe in memory, select DELETE EXISTING PROBE. DELETE PROBE ... -
Page 16: Make Measurement
b. MAKE MEASUREMENT Select a probe before you run the function In order for you to run ‘MAKE MEASUREMENT’ ‘RECALL READINGS’ & ‘DELETE READINGS’, you must have already selected a probe from memory. See ‘SELECT PROBE’ from the Main menus (page 8). To take measurement from probes in memory, select ‘ MAKE MEASUREMENT ’ menu from the Main Menu: SELECT PROBE MAKE MEASUREMENT RECALL READINGS DELETE READINGS DEVICE SETUP SET MEASUREMENT TIMER COMMUNICATIONS LANGUAGE / IDIOMA / LINGUAGEM BACKLIGHT ON/OFF 10. POWER OFF FW-1890-45L-01.20 ... -
Page 17: Recall Readings
c. RECALL READINGS RECALL READINGS Select ‘ ’ to look at data from different dates. ENTER NEW PROBE DELETE EXISTING PROBE 1000: GC+LC+Con 2500: GC+Con 3500: LC+Con PRESS ENTER TO SELECT Select the probe if it is not already selected to look in to the readings by using up/down arrows and press ‘ENT’ button. The readings of the selected probe will be displayed in the next screen. PROBE ID:1000 RDG# DATE TIME 04/24/15 18:45 24.10 0.04841... -
Page 18: Delete Readings
d. DELETE READINGS DELETE READINGS Select ‘ ’ from Main Menu to erase a reading from memory. Periodically delete readings to create more free storage area in memory. ENTER NEW PROBE DELETE EXISTING PROBE 1000: GC+LC+Con 2500: GC+Con 3500: LC+Con PRESS ENTER TO SELECT Select the probe from which the readings need to be deleted by using up/down arrows and press ‘ENT’ button. The readings of the selected probe will be displayed in the next screen. PROBE ID:1000 RDG# DATE TIME 04/24/15 18:45... -
Page 19: Device Setup
e. DEVICE SETUP i. Set Time & Date SET TIME & DATE Select ‘ ’ from Main Menu to set the internal clock of the MS4500L Data Logger. In order for information in memory to be useful and accurate, be sure the time and date are accurate. The Time and Date are set at the factory but may need to be adjusted to your CAUTION: time zone. Also, if you try to change the Date or Time and it conflicts with stored information, the MS4500L will display N/A. l'heure et la date sont définies à l'usine, mais ils peuvent être ajustées à votre ATTENTION : fuseau horaire. Aussi, si vous essayez de changer la date ou l'heure et que ce ci conflit avec l'information mémorisée, le MS4500L affichera N/A. DATE (MM / DD / YY): 04 / 27 / 15 TIME (HH:MM): 03: 42 PM ... - Page 20 SET MEASUREMENT PARAMETERS Select ‘SET MEASUREMENT PARAMETERS’ menu from Device Setup menu to set the parameters for the measurement. These settings are common for all probe selection. MEASUREMENT MODE : LPR MEASUREMENT UNIT : MPY USE LEFT / RIGHT ARROW TO SELECT USE UP / DOWN ARROW TO CHANGE PRESS ENTER TO SAVE ...
-
Page 21: Set Lcd Contrast
iii. SET LCD CONTRAST Select ‘SET LCD CONTRAST’ from Device Setup menu to adjust the contrast of the display and save setting. Use Up/Down arrow key to adjust the contrast and press ‘ENT’ key to save the contrast setting. CONTRAST SETTING USE UP/DOWN ARROW TO CHANGE PRESS ENTER TO SAVE CLEAR ALL PROBE DATA Select ‘CLEAR ALL PROBE DATA’ from Device Setup menu to clear the all‐probe data. Press ‘ENT’ button to clear the data or ‘EXIT’ button to cancel the probe data clearing. CLEAR ALL PROBE INFO? <EXT>= NO <ENT> = YES ... -
Page 22: Set Measurement Timer
SET MEASUREMENT TIMER SET MEASUREMENT TIMER Select ‘ ’ from Main Menu to set automatic probe reading at set intervals. The MS4500L Data Logger periodically wakes up and takes the measurement and stores the reading. Select a probe before you run the function. In order for you to run MAKE MEASUREMENT, you must have already selected a probe from memory. See Select Probe ID from the Main menus (see page 8). ENTER NEW PROBE DELETE EXISTING PROBE 1000: GC+LC+Con 2500: GC+Con 3500: LC+Con PRESS ENTER TO SELECT If the probe is not selected earlier, select the probe from the display. Use Up/Down arrow keys to select the probe and press ‘ENT’ button. ... -
Page 23: Communications
g. COMMUNICATIONS The MS4500L Data Logger has the ability to store readings as they are taken. These readings can later be transferred to your PC via USB port. To transfer data to a PC it is necessary to install the Corrosion Data Management Software (included). To connect to the MS4500L to PC, the use of the Certified USB Barrier Metal Samples Part #ET1867 must be used while in in the Non‐Hazardous Area only. The connection is made via J8 on the MS4500L to download the Data to the PC. WARNING: Improper connection to the PC may cause permanent damage to the MS4500L. AVERTISSEMENT: Une mauvaise connexion au PC peut causer des dommages permanents au MS4500L. 19 ... - Page 24 To download data from an instrument: • Connect the instrument to an available PC USB port. • Turn the MS4500L on. • Run the Corrosion Data Management Software • Open the Instrument Download Center • Select the serial port and instrument. • Click the Download button (ensure that Part Status toggles to “On”). • Select ‘ ’ menu from the Main Menu of the instrument. COMMUNICATIONS • Select ’ ’ or Select the Probe data you wish to download. TRANSFER ALL TRANSFER ALL 1000: GC+LC+Con 2500: GC+Con 3500: LC+Con PRESS ENTER TO TRANSFER ...
- Page 25 If data does not appear in the data window at all, verify that: The instrument is connected to a valid serial or USB port. All cables are securely connected. The message “Port Status: On” appears in the status bar. There are no errors on the instrument. If using a USB adapter, ensure that the device drivers have been i nstalled. Selecting a Serial Port When the MS4500L is connected to the USB port it will appear as a virtual COM port. Use the Serial Port selection box to select the virtualCOMport number. If the COM port number is unknown, it can be found in Windows Device Manager under “Ports (COM & LPT)”. Selecting an Instrument Use the Instrument option box to select the model of Metal Samples instrument b eing d ownloaded. This s ets t he a ppropriate c ommunication parameters, which will be displayed in the status bar at the bottom o f the window (“9600, N,8,1” for an MS1500, “2400,N,8,1” for an MS3500). ...
- Page 26 Data Analysis The Data Analysis u tility is a convenient tool f or c harting d ata f rom Metal Samples ER and LPR data logger instruments. The Data Analysis utility can be opened from the Main Menu, or it can be opened directly from the Instrument D ownload Center. If t he Data Analysis u tility i s opened f rom t he I nstrument Download Center, the contents of the data window will be loaded into the chart. However, if the Data Analysis utility is opened directly from the Main Menu, a valid data file must be loaded. The Select File box will open to allow selection of a data file. Loading a Data File After selecting a data file (or clicking the Chart Data button from the Instrument Download Center) a status window will display the progress of the file being opened, along with the Instrument Type, Probe T ype, and Probe ID for t he data f ile. ...
- Page 27 Printing Data The data table can be printed by clicking Print in the Options menu. A print dialog box will be displayed to allow printer selection and setup. CreatingAChart To chart the selected data, click the Chart Data button, or select Chart Data from the Options menu. The chart will be displayed in a new window. Printing a Chart A chart can be printed using the Print Chart option in the File menu. A print dialog box will be displayed to allow printer selection and setup. Exporting a Chart A chart can be exported to other applications using the Copy Chart option in the File menu. This will copy both the chart and the raw data to the Windows ® Clipboard. The chart can then be inserted into other applications using the Paste function. Note: In some applications, using the Paste function will insert the raw data instead of the chart. In this case, use the Paste Special function, then select Picture to insert the chart. Chart Tools • Statistical Data The Statistical Data tab at the bottom of the Data Chart window will display ...
-
Page 28: Data Markers
• Finding A Data Points Value While viewing the chart, the value of any data point can be determined by s imply c licking i t. The v alue will b e displayed i n t he charts tool‐tip box (a small text box that is displayed near the mouse pointer). If the tool‐tip box does not appear immediately after clicking the data point, hold the mouse pointer stationary over the chart background for a moment. The Tools Menu The Tools menu contains a collection of utilities for viewing and manipulating the chart. The Tools menu can be accessed by clicking Tools on the menu bar, or by right‐clicking anywhere on the chart o Data Markers Show Data Markers toggles the data markers on and off. Mean Value Show Mean Value toggles the mean value line on and off. Trend Line Show Trend Line toggles the trend line on and off. o Title/Footnote S etup Title/Footnote Setup displays a window that allows the chart title and footnotes to be toggled ... - Page 29 Zoom I n Zoom In allows a region of the chart to be enlarged so that it may be viewed in greater detail. To enlarge a region of the chart, click on the two data points that define the left and right boundaries of the region. In zoom mode, the mouse pointer will change to cross‐ hair. When zoom mode ends, the mouse pointer will return to its normal state. To cancel zoom mode, click Cancel Zoom in from the Tools menu, or simply press the Esc key. Zoom O ut Zoom Out restores the initial view of the chart, which displays the full data set. Calculate C orrosion R ate If the chart contains ER data, the Calculate Corrosion Rate option w ill b ecome a vailable u nder the Tools menu. This option allows the corrosion rate to be calculated between any two data points on the chart. To calculate the corrosion rate click Calculate Corrosion Rate, then click two data points. The corrosion rate between those two data p oints w ill b e displayed. In calculate mode, the mouse pointer will change to an arrow/question mark. When ...
-
Page 30: File Transfer Usb
h. File Transfer USB The J9 Connector on the top side of the device allows for transferring of data onto USB flash drives. Hazardous Area In the hazardous area, the Metal Samples Part# ET1650 Certified USB flash drive can be used. All other non‐certified drives must be used in the safe area. Connection: : CAUTION Only certified flash drives may be connected and used in the hazardous location. ATTENTION: Seuls les lecteurs flash certifies peuvent être connecté et utilisé dans l'emplacement dangere To download the Data from the “Main Menu” select 7. Communications after installing the USB drive in J9. The up arrow can be pressed, and you can select download all by pressing ‘ENT’ or you can individually select the probe you are interested in by scrolling through the list with the arrow keys and selecting the probe(s) of interest by pressing ‘ENT’ on each one. 26 ... -
Page 31: Language
i. LANGUAGE / IDIOMA / LINGUAGEM LANGUAGE / IDIOMA / LINGUAGEM Select ‘ ’ from Main Menu to select the language. ENGLISH ESPANOL PORTUGUES FRANCAISE PRESS ENTER TO SELECT PRESIONAR ENTPARA SELECCIONAR PRESSIONAR ENT PARA AJUSTAR TAPER ENTRER POUR REGLER j. BACKLIGHT ON/OFF ... -
Page 32: Maintenance
C. Maintenance Once installed, the MS4500L High Resolution LPR Data Logger requires no maintenance. However, it is important to verify the following items periodically to ensure continued safe operation. Before performing any tests or maintenance on the MS4500L High Resolution LPR Data CAUTION: Logger, ensure that all hazardous area requirements are met. : Avant d’effectuer tout essai ou entretien de l’enregistreur de données de haute ATTENTION résolution MS4500L, il faut d’abord s’assurer que toutes les exigences de zone dangereuse soient remplies. Inspection Item Frequency Inspect the rubber boot for any signs of damage. Replace as necessary. Annually Inspect the probe cable / connector for any signs of damage. Replace as necessary. Annually As needed Replace the Batteries Contact Metal Samples for replacement parts or if instrument repair is necessary. Testing the MS4500L High Resolution ER Data Logger with the Meter Prover A Meter Prover is provided to allow routine checks of the MS4500L High Resolution LPR Data Logger. The Meter Prover simulates an LPR probe at a fixed value. To test the unit with the Meter Prover: 1) Connect the Meter Prover to the probe connector. 2) Turn on the MS4500L data logger by pressing the ‘ON’ button. 3) Ensure Device Mode = LPR Mode and B Value = 25.6 mV. ... -
Page 33: Troubleshooting
D. Troubleshooting If the MS4500L High Resolution LPR Data Logger does not seem to perform as expected, check the following items: Before performing any tests or maintenance on the MS4500L High Resolution LPR Data CAUTION: Logger, ensure that all hazardous area requirements are met. avant d'effectuer tout essai ou d'entretien sur l'MS4500L haute résolution LPR ATTENTION: Enregistreur de données, s'assurer que toutes les conditions sont remplies pour zone dangereuse. 1. Ensure that the probe is operational and is not completely corroded. This can be done in two ways. a. Test the probe with another portable LPR meter if available. 2. Ensure the battery voltage. 3. Test the MS4500L High Resolution LPR Data Logger transmitter using the supplied Meter Prover (see page 24.) These basic checks should indicate the source of any problem (probe, power supply, wiring, etc.). If it is determined that the MS4500L High Resolution ER Data Logger is malfunctioning, or if you need further assistance in troubleshooting, contact Metal Samples Technical Support. If the MS4500L High Resolution LPR Data Logger transmitter shows any signs of damage, CAUTION: remove it from service immediately and consult the factory. Si l’Émetteur de l’Enregistreur de données de haute résolution présente des signes de ATTENTION: dommages, Alors il faut le retirer du service et consulter l’usine. 29 ... -
Page 34: Service And Warranty Information
III. Service and Warranty Information A. Warranty Metal Samples warrants that any part of the model MS4500L High Resolution LPR Data Logger and accessories which proves to be defective in material or workmanship within one year of the date of original shipment to Purchaser will be repaired or replaced, at Metal Samples option, free of charge. This warranty does not cover (1) probe assemblies, (2) items expendable in nature, or (3) items subject to damage from normal wear, misuse or abuse, or failure to follow use and care instructions. All damaged items are to be shipped at the Purchaser’s expense to and from Metal Samples which shall have the right to final determination as to the existence and cause of a defect. The foregoing shall constitute the sole and exclusive remedy of any purchaser of Metal Samples products for breach of warranty and IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL METAL SAMPLES BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN THE PERFORMANCE OF THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. The technical information and suggestions contained herein are believed to be reliable, but they are not to be construed as warranties since conditions of use are beyond our control. B. Obtaining Service and Returning the Instrument for Repair If you experience problems with your instrument, please contact the factory at 256‐358‐4202 and ask for customer support for instrumentation. Our customer support department will assist you in troubleshooting your instrument. Most issues can be resolved over the phone, but in some cases, it may be necessary to return your instrument for further evaluation and repair. In this case, please obtain a Return Materials Authorization (RMA) number from the sales person or support technician. This RMA number will ensure that your instrument is routed to the correct department when it is received at the factory. After receipt of an RMA number you may pack your instrument for return. Be sure to pack your instrument in a sturdy box and to pad it sufficiently to avoid damage during transit. Also be sure to complete the “Instrument Repair Form” on the next page and include a copy with your repair. This will ensure that the repair department has sufficient information regarding the problems you are experiencing with your instrument, as well as the billing, contact, and return shipping details for the repair. ... -
Page 35: Instrument Repair Form
C. Instrument Repair Form This form may be photocopied for use when returning an instrument to Metal Samples for repair. Please fill in all known information and enclose a copy of the completed form with the instrument. General Information Model Serial Number Number RMA Date of Number Purchase* *If known. Contact Information for Repair Contact Name Company Phone E‐mail Number Address Return Shipping Information Recipient ... -
Page 36: Appendix A: Revision History
Appendix A: Revision History Revision Date Changes 0 07/25/2022 Initial Release Display menu corrections updated A 10/01/24 ... -
Page 37: Appendix B: Hazardous Area Certification Details
Appendix B: Hazardous Area Certification Details ... - Page 38 ...
- Page 39 ...
-
Page 40: Appendix C: Drawing
Appendix C: Drawing Control Drawing (Hazardous Area Wiring Diagram) ... - Page 41 /LPR ER/LPR Probe Extension Cable (Optional) (Sold Separately) /LPR Uncertified USB Flash Drive Certified USB Flash Drive USB Cable Type A Male Metal Samples to Type A Female Part # ET1650 Uncertified USB Flash Drive (Maximum 3 Meters) /LPR USB Cable Certified USB Type A Male Flash Drive...
