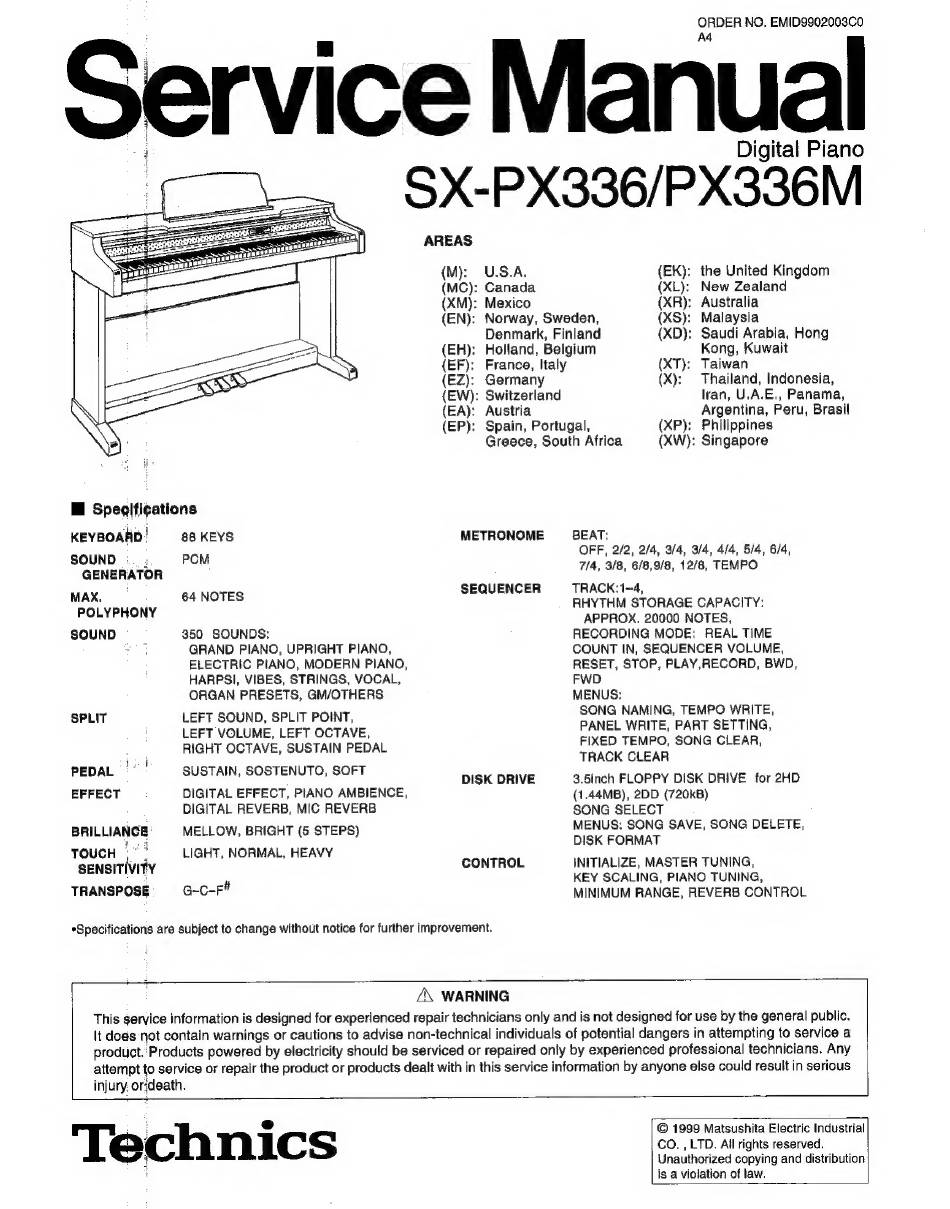

Technics SX-PX336 Service Manual

ORDER NO. EMID9902003C0

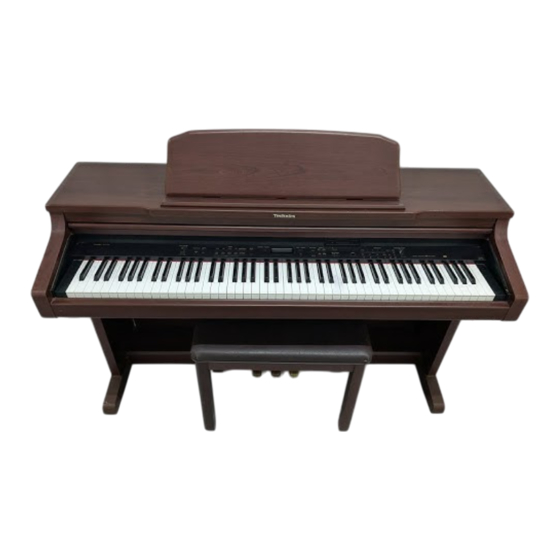

Digital Piano
SX-PX336/PX336M
AREAS
(M): U.S.A. (EK): the United Kingdom
(MC): Canada (XL): New Zealand
(XM): Mexico (XR): Australia
(EN): Norway, Sweden, (XS): Malaysia
Denmark, Finland (XD): Saudi Arabia, Hong
(EH): Holland, Belgium Kong, Kuwait
(EF): France, Italy (XT): Taiwan
(EZ): Germany (X): Thailand, Indonesia,
(EA): Austria
I Spegifications
KEYBOARD!
SOUND ©. ;
GENERATOR
MAX,
POLYPHONY
SOUND
SPLIT
PEDAL
EFFECT
BRILLIANCE
TOUCH |'
SENSITIVITY
TRANSPOSE
88 KEYS METRONOME
PCM
eanores SEQUENCER
350 SOUNDS:
GRAND PIANO, UPRIGHT PIANO,
ELECTRIC PIANO, MODERN PIANO,
HARPSI, VIBES, STRINGS, VOCAL,
ORGAN PRESETS, GM/OTHERS
LEFT SOUND, SPLIT POINT,
LEFT VOLUME, LEFT OCTAVE,
RIGHT OCTAVE, SUSTAIN PEDAL
SUSTAIN, SOSTENUTO, SOFT
DIGITAL EFFECT, PIANO AMBIENCE,
DIGITAL REVERB, MIC REVERB
MELLOW, BRIGHT (5 STEPS)
LIGHT, NORMAL, HEAVY
DISK DRIVE
CONTROL
G-c-F#
*Specifications are subject to change without notice for further improvement.
{EW): Switzerland
(EP): Spain, Portugal,
Greece, South Africa
Iran, U.A.E., Panama,
Argentina, Peru, Brasil
(XP): Philippines
(XW): Singapore
BEAT:
OFF, 2/2, 2/4, 3/4, 3/4, 4/4, 5/4, 6/4,
7/4, 3/8, 6/8,9/8, 12/8, TEMPO
TRACK: 1-4,
RHYTHM STORAGE CAPACITY:
APPROX. 20000 NOTES,
RECORDING MODE: REAL TIME
COUNT IN, SEQUENCER VOLUME,
RESET, STOP, PLAY,RECORD, BWD,
FWD
MENUS:
SONG NAMING, TEMPO WRITE,
PANEL WRITE, PART SETTING,
FIXED TEMPO, SONG CLEAR,
TRACK CLEAR
3.5inch FLOPPY DISK DRIVE for 2HD
(1.44MB), 2DD (720kB)
SONG SELECT
MENUS: SONG SAVE, SONG DELETE,
DISK FORMAT
INITIALIZE, MASTER TUNING,
KEY SCALING, PIANO TUNING,
MINIMUM RANGE, REVERB CONTROL
ZX WARNING
Technics
© 1999 Matsushita Electric Industrial
CO. , LTD. All rights reserved.
Unauthorized copying and distribution
is a violation of law.
