Summary of Contents for FONRI KP5

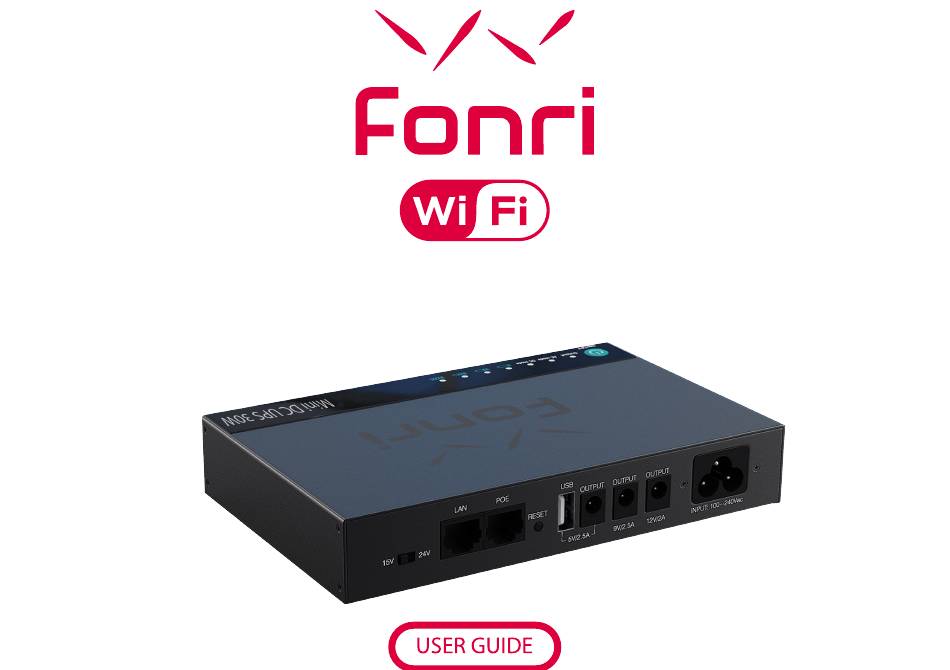

- Page 1 SMART MINI DC UPS 30W...
- Page 2 INDEX SMART MINI DC UPS 30W MİNİ DC UPS 30W...
-
Page 3: Product Introduction
Product Introduction ON/OFF LED Indicator AC Input 100 240V PoE Votage 15V/24V Selector DC Ouput USB Output PoE Reset... -
Page 4: Technical Specifications
Technical Specifications Model: KP5 Battery Capacity: 8800mAh/3.7V 32.5Wh Input: 100-240VAC / 0.5A Output: PoE 15V / 24V (Selectable) / 1.0A DC 12V / 2.0A DC 9V / 2.5A DC 5V / 2.5A USB 5V / 2.5A Total Output: 30W (Max) -
Page 5: Installation
Installation Typical topology 1... - Page 6 Press and hold the power button for 2-3 seconds to start the UPS Choose the right voltage your outdoor CPE requires by the selector Connect the outdoor CPE to the KP5’s PoE port via an ethernet cable Connect the router to the KP5’s DC output port via DC cable Connect the router to the KP5’s LAN port via an ethernet cable...
- Page 7 Typical topology 2...
- Page 8 Typical topology 3...
- Page 9 Circuit protection When overload or short circuit happens, all outputs will be turned off, the power indicators will flash at the same time, KP5 will restart every five seconds to until short circuit or overload has been lifted. Choking Hazard KP5 and small parts included with KP5 may present a choking hazard or cause other injury to small children.
-
Page 10: Medical Device Interference
Maintain a safe distance of separation between your medical device and KP5. Consult your physician and medical device manufacturer for information specific your medical device. Stop using KP5 if you suspect ther are interfering with your pacemaker, defibrillator, or any other medical devices. - Page 11 Note 1. Each output terminal of this model has independent output power protection and short-circuit protection. Meanwhile there is a general power protection mechanism. The power of the load connected to all ports cannot exceed the defaulted output power. Otherwise, the corresponding port will turn off. When the UPS is over loaded, the 4 power indicator lights will flash at the same time and all output ports will turn off.
