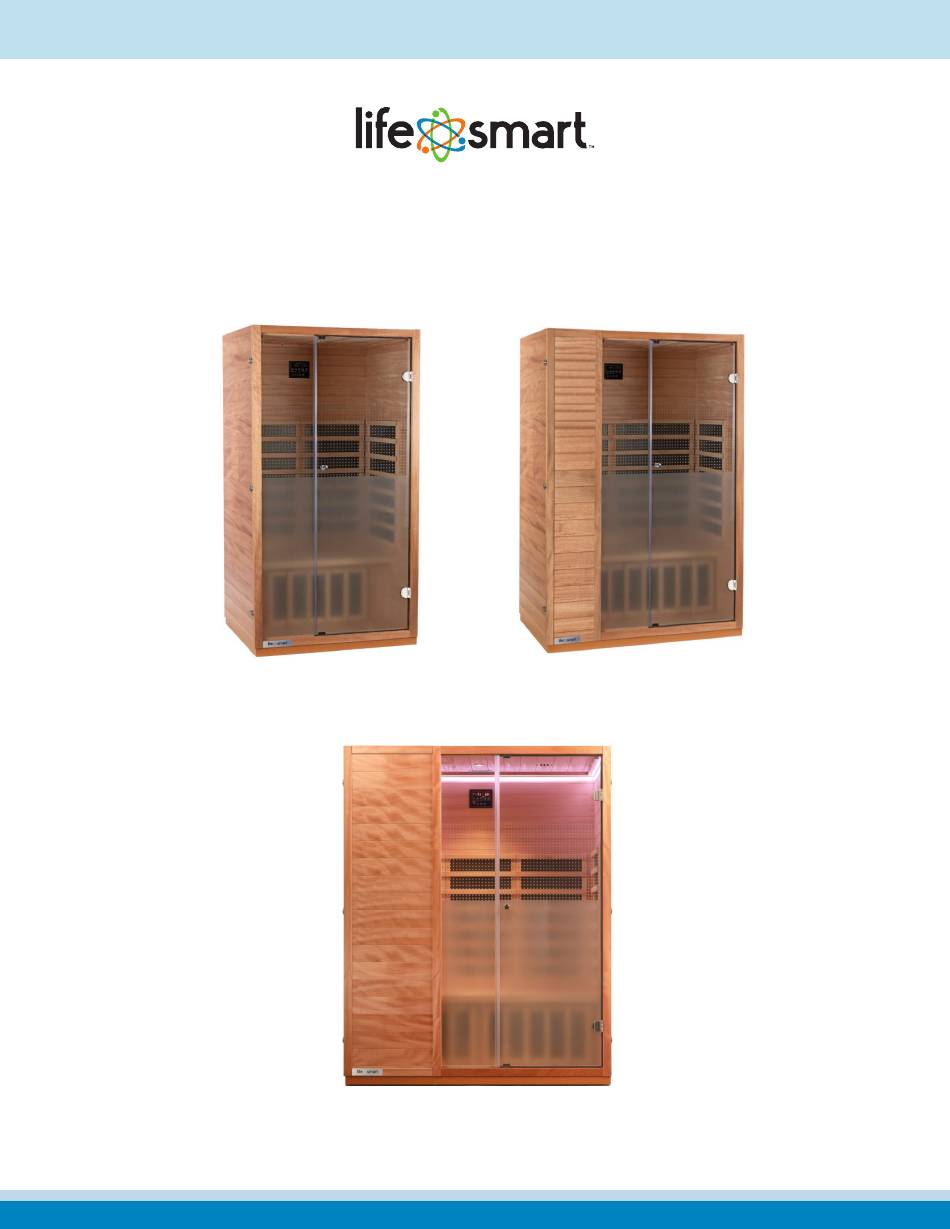

- Page 1 Owners Manual Sahara Series SAHARA SERIES- LSS-1 SAHARA SERIES- LSS-2 Model: 421101010010 Model: 421102010010 SAHARA SERIES- LSS-3 Model: 421103010010...
-
Page 2: Table Of Contents
Sahara Series TABLE OF CONTENTS Precautions & Warnings: Introduction: Parts List: Installation Requirements: Assembly Instructions: Recommendations for Use: Troubleshooting Tips: Digital Control Panel: Maintenance: Warranty: Page 2... -
Page 3: Precautions Before Use
Sahara Series PRECAUTIONS BEFORE USE WARNING (Room configuration and use): • Proper Electrical Grounding is Required • Electrical Receptacles not Allowed in the Room • Do not Apply Water to any Heating Element • Do not Add a Locking or Latching System to the Door •... -
Page 4: Introduction
Sahara Series INTRODUCTION Thank you for buying a LifeSmart Sauna. We are sure you will be satisfied with your purchase, and we are ready to help whenever you need us. Please read this manual carefully before using a LifeSmart Infrared Sauna for the first time. -
Page 5: Parts List
Sahara Series PARTS LIST SAHARA SERIES- LSS-1 SAHARA SERIES- LSS-2 Model: 421101010010 Model: 421102010010 PART PART NOTES PART PART NOTES NUMBER DESCRIPTION NUMBER DESCRIPTION 79898 Rear panel 79894 Front panel 79896 Side panel (L) 79899 Rear panel 79897 Side panel (R) -
Page 6: Installation Requirements
Sahara Series INSTALLATION REQUIREMENTS 1. Do not plug any other appliances into the outlet with your infrared sauna. 2. The cabin must be erected on a level surface. A distance of at least 5cm from the wall must be maintained. -
Page 7: Assembly Instructions
Sahara Series ASSEMBLY INSTRUCTIONS Assembly of the sauna requires at least 2 adults to complete. Please read the instructions thoroughly before and during assembly to ensure proper installation of the sauna. STEP 1: LOCATION OF THE SAUNA • When selecting the location for your sauna, please ensure the main power cord on the sauna is easily accessible. - Page 8 Sahara Series STEP 4: INSTALL THE RIGHT-SIDE PANEL (PANEL# 2) • Align the right-side panels with rear panel’s corresponding outside-buckles. • Make sure the outside-buckles on both side panels are fixed in place. Outside buckles STEP 5: INSTALL THE REAR PANEL(PANEL# 3) •...
- Page 9 Sahara Series STEP 7: CONNECT BENCH HEATER WIRES • Connect the wire of bench heater to the back panel. STEP 8: INSTALL THE BENCH • Position the bench by smoothly gliding it along the horizontal bench guides located on the side panels.
- Page 10 Sahara Series STEP 10: INSTALL THE TOP PANEL (CEILING) • Lower the roof panel on to the assembled panels. • Gently place the top panel on to the rest of the assembled panels. • When four corners are in place, gently push down the roof panel from the outside corners until it is snugly fit over the rest of panels.
- Page 11 Sahara Series STEP 12: PLACE ROOF COVER ON TOP OF THE ROOF PANEL • Place the roof cover onto the roof panel, connect it to the roof panel with the screws (3*20mm). STEP 13: INSTALL THE DOOR KNOB STEP 14: ENJOY YOUR SAUNA! Plug in the main power cord into the wall outlet and power up your sauna.
-
Page 12: Recommendations For Use
Sahara Series RECOMMENDATIONS FOR USE: • Avoid eating large meals and excessive • Sit or lie on bench. Close the door and the alcohol intake before using Sauna. interior ceiling vent allowing the sauna to heat up faster. To allow more ventilation you •... -
Page 13: Troubleshooting Tips
Sahara Series TROUBLESHOOTING PROBLEMS EXPLANATIONS SOLUTIONS Power indicator light not on Power cord is not plugged-in. 1. Check for power to the outlet. 2. Check connection between power cord & main control unit. The fuse is burned out. Check or replace the fuse. -
Page 14: Digital Control Panel
Sahara Series DIGITAL CONTROL PANEL OPERATING INSTRUCTIONS Temperature Adjustment: The sauna will reach a maximum temperature of 149 Fahrenheit under ideal experimental conditions. Under normal environment temperature (77 Fahrenheit), the sauna will reach a maximum temperature anywhere from 140 to 149 Fahrenheit. -
Page 15: Maintenance
Sahara Series MAINTENANCE & CLEANING DO NOT USE: Alcohol or any strong cleaning chemicals Note: Some chemicals can damage clear finish and wood surfaces. • Your sauna is made of the Natural wood. All wood products have variations in the color, grain, and may have irregularities such as knots, and fine cracks. -
Page 16: Warranty
Sauna Watkins Wellness (“Watkins”) warrants to the original consumer purchaser warranty claim, along with a copy of your original purchase receipt indicating the date of the purchase and date of delivery within thirty (30) days of the time you (“you”) the following about your new Lifesmart sauna (“Sauna”), when discover the claim.
