Summary of Contents for Crystal Sound DCS-210

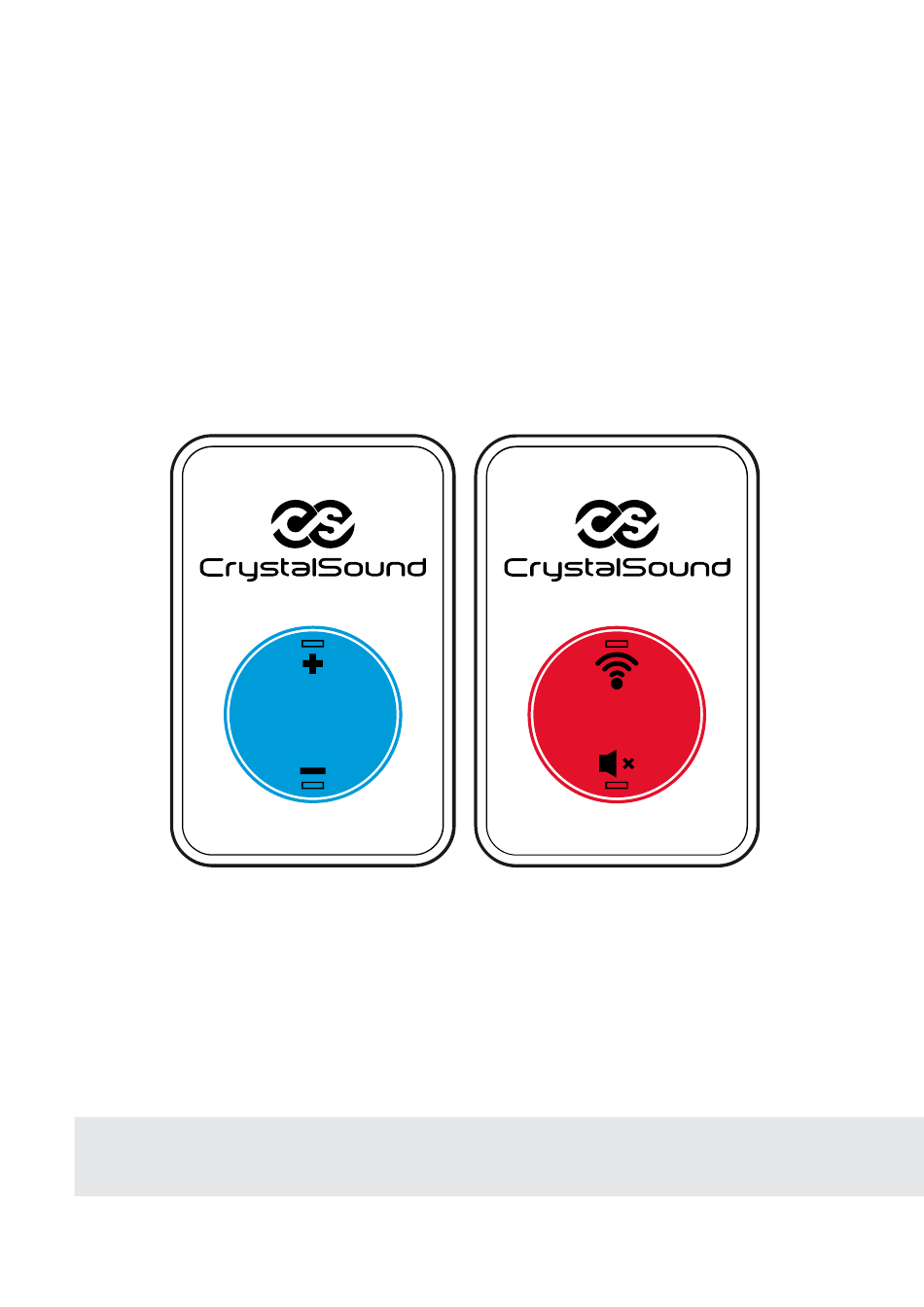

- Page 1 Technical data sheet. User manual...
- Page 2 2.1. Safety information 3.1. Characteristics 3.2. Dimensions and terms of use 3.3. Additional parameters 4.1. Light indication 5.1. Working principle of the Radioguide mode 5.2. How the Multispeaker mode works 5.3. Operating principle of the Intercom mode 6.1. Starting work 6.2.
- Page 3 This user manual contains the necessary information to set up, operate and maintain the DCS-210 Excursion Kit. Dimensions, specifications and images in the manual are subject to change without notice. The DCS-210 excursion kit is a radio equipment for wireless audio transmission over short distances.
- Page 4 The basic kit includes: 1. DRT-210 transmitter; 5. Charging case; 2. Receiver DRR-210; 6. Instruction manual; 3. Earphone MIT000684; 7. CrystalSound software; 4. Microphone MIT000685. • Output power: 10 mW; • Power supply voltage: 2.6 - 4.1 V; • Battery continuous operation time: Standard mode = 100 hours;...
- Page 5 • Receiver/transmitter dimensions: 68 x 45 x 15 mm; • Weight with batteries: 43 g; • Dimensions of the charging case: 350 x 260 x 110 mm; • Weight of the charging case: empty - 2.7 kg; when fully loaded - 4.8 kg; •...
- Page 6 Receiver . Volume up/down; . Headphone jack; . Charge level indicator; . Signal strength indicator; . Strap сonnector; . Connector for charger. Battery level • When you briefly press any button on the receiver, the charge level is displayed. Green LED on the receiver flashes •...
- Page 7 Button backlight illuminates • Pressing the button; • Connecting the charger / microphone / headphones. The radioguide is designed for conducting excursions and events with the participation of a guide or speaker. The devices allow to conduct excursions for several groups simultaneously.
- Page 8 t Multispeaker mode allows to organise events with several presenters, in the receivers of listeners the sound will be summed up from all switched on transmitters. • The presenter’s and assistants' transmitters broadcast the speech. • The participants of the event hear the speech of the host and assistants. A maximum of four devices can transmit voice messages at the same time.
- Page 9 All participants must have headphones with a microphone (headset) to work in Intercom mode. Transmitter users can hear voice transmitted from receivers and other transmitters. Speech transmission is available for a maximum of four devices at a time. The kit for each group includes: •...
- Page 10 . To switch off the microphone on the transmitter, press and hold the button until the red LED lights up. . To switch on the microphone on the transmitter, press and hold the button until the red LED goes out. .
- Page 11 • To operate in multispeaker mode, synchronise the master transmitter with the required number of receivers and additional transmitters.
- Page 12 The app saves you time and automatically counts the number of devices. It works with radioguides and audioguides of CrystalSound. Google App Store Play...
- Page 13 Do not open the case of the product yourself. If repair is necessary, please contact CrystalSound specialists only. Repair is necessary if: • If the product cannot be repaired by yourself; • The product is damaged in any way; • If moisture or foreign objects have entered the product.
- Page 14 You can find out all the possibilities using the QR code. CrystalSound.it Likedin ...
